HCH-3000D Precision Ultrasonic Thickness Gauge for Metal, Rubber, Glass, etc

HCH-3000D Ultrasonic Thickness Gauge is the HCH-3 series of Ultrasonic Thickness Gauge, HCH-3000D with Speed of sound calibrated (reverse measurement Speed of sound) or single point Adjustment, HCH-3000D Ultrasonic Thickness Gauge Measurement range is 0.65-360mm (45 #steel).
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

KODIN HCH-3000D Ultrasonic Thickness GaugeSPEC

KODIN HCH-3000D Ultrasonic Thickness GaugeDetails

KODIN HCH-3000D Ultrasonic Thickness GaugePacking list

SKU
NB003098
Measurement range
0.65~360mm
Probe Frequency
5MHz
Probe style
Split probe
Probe diameter
Φ8mm
Measurement error
±(1%H±0.1)mm
Display resolution
0.01mm
unit system
mm
Calibration method
Speed of sound calibrated (reverse measurement Speed of sound) or single point calibrated
Storage Capacity
600 Measured values
Speed of sound
1000~9990m/s
Display
LCD display with backlight
Application Software
none
Environmental temperature
-10~60℃
Working Relative Humidity
<90%RH
Power Supply
2 * 5 battery
Operating Time
200h
Host size
146*81*30mm
Weight
300g
Application
Petroleum, chemical industry, electric power, boiler, metallurgy, shipbuilding, aviation, aerospace, etc
Data storage method
manual storage
shutdown mode
Standby for five minutes will automatically shut down
keyboard
6-Key dustproof, oil-proof keyboard
Coupled status display
When the tested piece is well coupled with the probe, the icon in the upper left corner shows
Optional Accessories
High temperature probe (below 550 degrees), cast iron probe, small diameter probe, printer and communication printing connection, microcomputer communication software
HCH-3000D
Ultrasonic Thickness Gauge

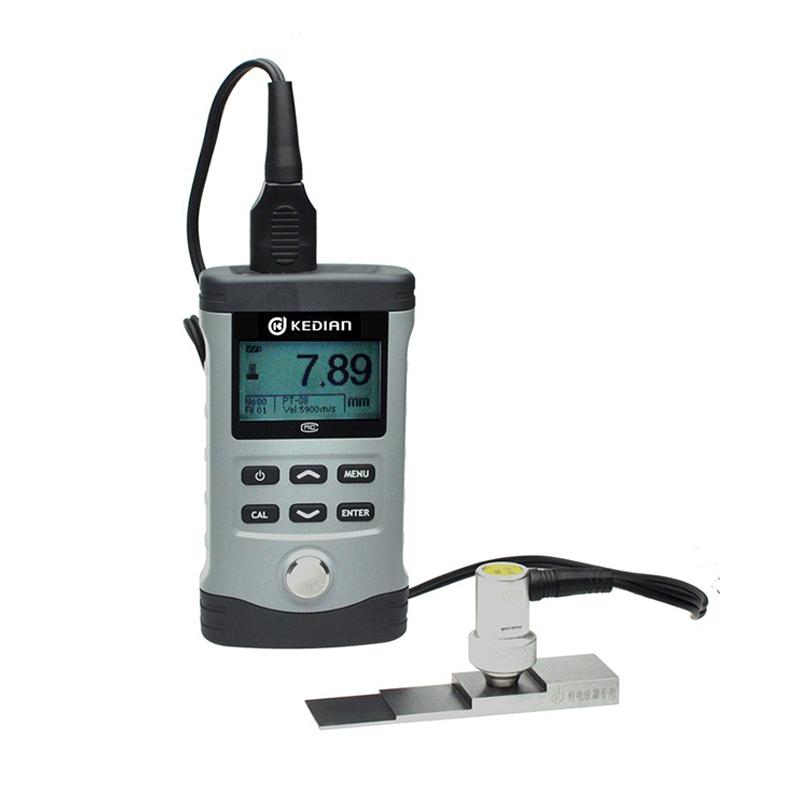

HCH-3000D Precision Ultrasonic Thickness Gauge for Metal, Rubber, Glass, etc Picture

Introduction to the HCH-3000D Ultrasonic Thickness Gauge

HCH-3000D intelligent precision ultrasonic Thickness Gauge adopts new digital signal processing technology, which is an upgraded version of the ultrasonic Thickness Gauge of Kedian Instrument. It has the characteristics of low power consumption, strong penetration, stable indication value, high detection accuracy, and more user-friendly operation interface. New additions include probe identification, batch group management data, multiple online measurement modes, sound velocity measurement, and more, making the instrument more suitable for the needs of industrial sites.

Functional characteristics of ultrasonic Thickness Gauge

● Automatic identification of standard probes, or manual probes.

● The resolution is 0.01 mm

● It has the function of sound velocity calibration (reverse sound velocity measurement) or single point calibration

● The upper/lower limit of thickness measurement can be set with alarm function

● Up to 600 readings can be stored in groups.

● The data output can be printed through the serial output port

Product structure diagram

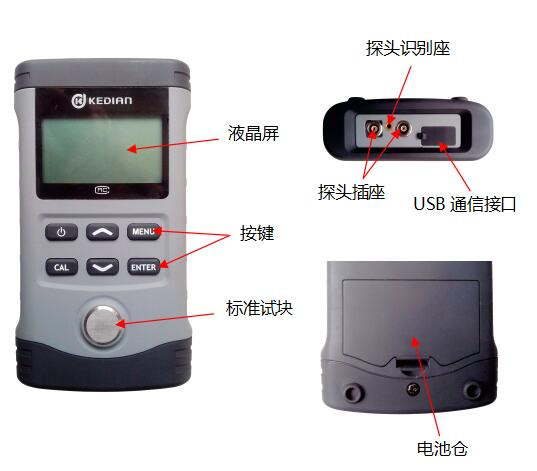

Structural diagram of HCH-3000D intelligent precision ultrasonic Thickness Gauge

Product display diagram

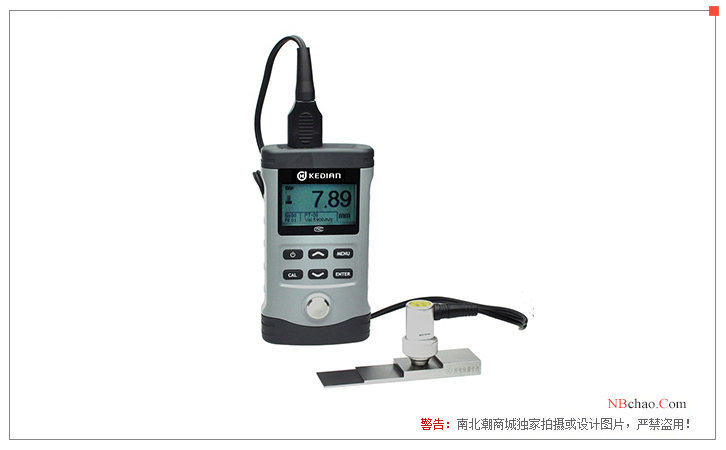

Detail drawing of the HCH-3000D precision ultrasonic Thickness Gauge

FAQ
QMeasuring the wall thickness of steel pipes and equipment made of stainless steel and carbon steel requires high temperature resistance of 250 degrees. Do you have any suggestions?
A This one can be equipped with a high temperature probe.
QHow much data capacity can be stored in the Coating thickness gauge of CHE-3000D?
A Hello, it can store data of 600 measurement points.
QAre all Ultrasonic Thickness Gauges available for inspection in the GB/T11344 standard?
A Not necessarily, but this HCH-3000D Ultrasonic Thickness Gauge can be considered.
QHow thick can HCH-3000D Ultrasonic Thickness Gauge be measured?
A HCH-3000D Ultrasonic Thickness Gauge can measure the thickness of 0.65mm.
