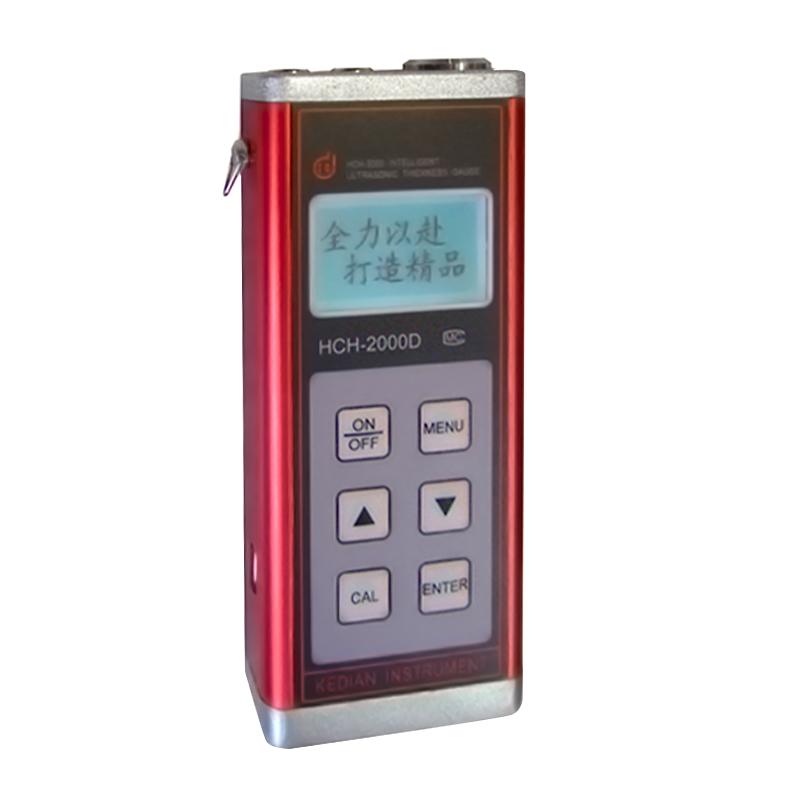

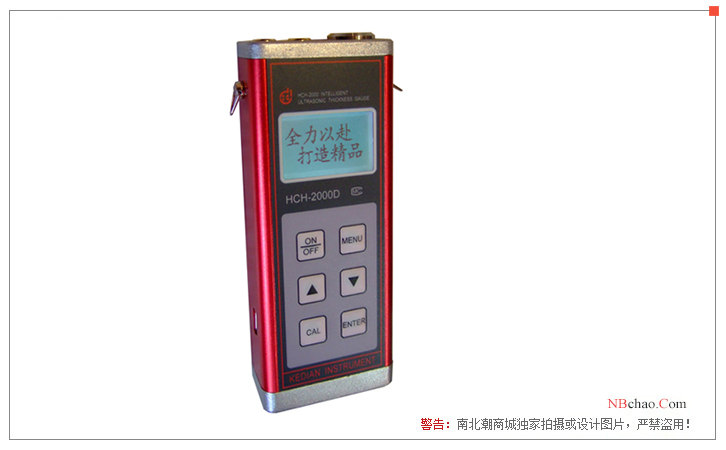

HCH-2000D Ultrasonic Thickness Gauge Boiler, Metallurgy, Chemical Industry, Aviation, etc
HCH-2000D
-
Ultrasonic Film thickness Measurement Instrument DC-2020C Deguang Electronics, Film thickness measurement of metal, plate, pipeline, etc$ 1053.00SE -
Metal Ultrasonic Film thickness meter DC-3020C Deguang Electronic Glass, steel pipe and other Film thickness measurement$ 1551.00SE -
Steel plate Ultrasonic Thickness Gauge DC-3000C, penetration coating measurement material Film thickness$ 1302.00SE -
Ultrasonic wall Thickness Gauge DC-2030C Deguang electronic measurement of cast iron and other Film thickness$ 929.00SE -
Ultrasonic steel plate Thickness Gauge DC-2010C Deguang electronic measurement of steel plate material itself Film thickness$ 804.00SE
KODIN HCH-2000D Ultrasonic Thickness GaugeSPEC
KODIN HCH-2000D Ultrasonic Thickness GaugeDetails
KODIN HCH-2000D Ultrasonic Thickness GaugePacking list
- SKU
- NB003099
- Measurement range
- 0.65~350mm
- Measurement error
- ±(1%H±0.05)mm
- Display resolution
- 0.01mm
- unit system
- mm
- Data storage method
- Manually stored measurements
- Storage Capacity
- 600 Measured values
- Speed of sound
- 1000~9990m/s
- Display
- LCD screen
- Operating language
- Chinese
- Application Software
- none
- Environmental temperature
- -10~60℃
- Working Relative Humidity
- <90%RH
- Power Supply
- 1.2-1 alkaline battery or rechargeable battery
- Host size
- 51*124*27mm
- Application
- Petroleum, chemical industry, electric power, boiler, metallurgy, shipbuilding, aviation, aerospace, etc
- shutdown mode
- Standby for five minutes will automatically shut down
Introduction of HCH-2000D Ultrasonic Thickness Gauge
HCH-2000D ultrasonic Thickness Gauge measuring range: 0.65-350mm, display accuracy: 0.01mm, the internal circuit adopts new digital electronic technology, with small size, low power consumption, strong penetration, anti-beating, anti-vibration, stable indication value, touch button, high detection accuracy, storable measured value, with metric and British conversion, full Chinese display Chinese menu, liquid crystal display, can be connected to microcomputer, printer and other characteristics, is your preferred choice in practical applications.
Scope of application
It is used to measure the thickness of hard materials, such as steel, stainless steel, aluminum, copper, chromium alloy and other metal materials, and plastics, rubber, ceramics, glass and other non-metals;

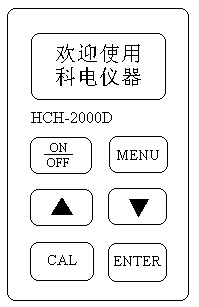

Product part description
1. Button
（1) ON/OFF: Power on and off.
（2) MENU: Menu key to open the menu.
（3) ENTER: Confirm button, after each adjustment, you need to press this button to confirm.
（4）CAL: Calibration key, press this key to calibrate.
（5）▲▼：Adjust the keys，▲ To increase the key,▼For a reduction key.

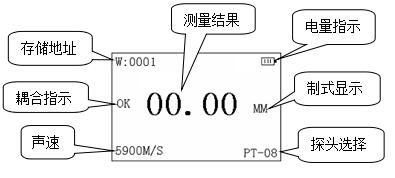

2. Screen display
Product display diagram
