RDS #37 Mayer Rods WFT 84.6μm length 400mm

SE
Formed, wet film thickness 84.6μm, diameter 6.35mm, Total length 400mm, Spreader width 300mm, grip width 50 + 50mm, material stainless steel.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 37# 1/4“ Applicator rod 1/4 "SPEC

RDS 37# 1/4“ Applicator rod 1/4 "Details

RDS 37# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB000031
Production process
formed
WFT
84.6μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
37# 1/4“
Applicator rod 1/4 "
Formed, wet film thickness 84.6μm, diameter 6.35mm, Total length 400mm, Spreader width 300mm, grip width 50 + 50mm, material stainless steel.
RDS #37 Mayer Rods WFT 84.6μm length 400mm Picture

Product description

There are two types of RDS wire Bar Coater: wire-winding type and forming type, but RDS#37 wire Bar Coater currently only has a forming type, with a diameter of 6.35mm and a film thickness of 84.6μm. Formed coating rods are developed by RDS to solve the problems of users who use wire-wound coating rods that are not easy to clean and will block impurities. They do not need to be wound with steel wires, and are directly processed into continuous grooves on the steel rods. , the thickness of the coating film is controlled by the size of the groove, and the precision of the coating film prepared by it is marked as 0.1 micron, and it is suitable for high-viscosity coating experiments.

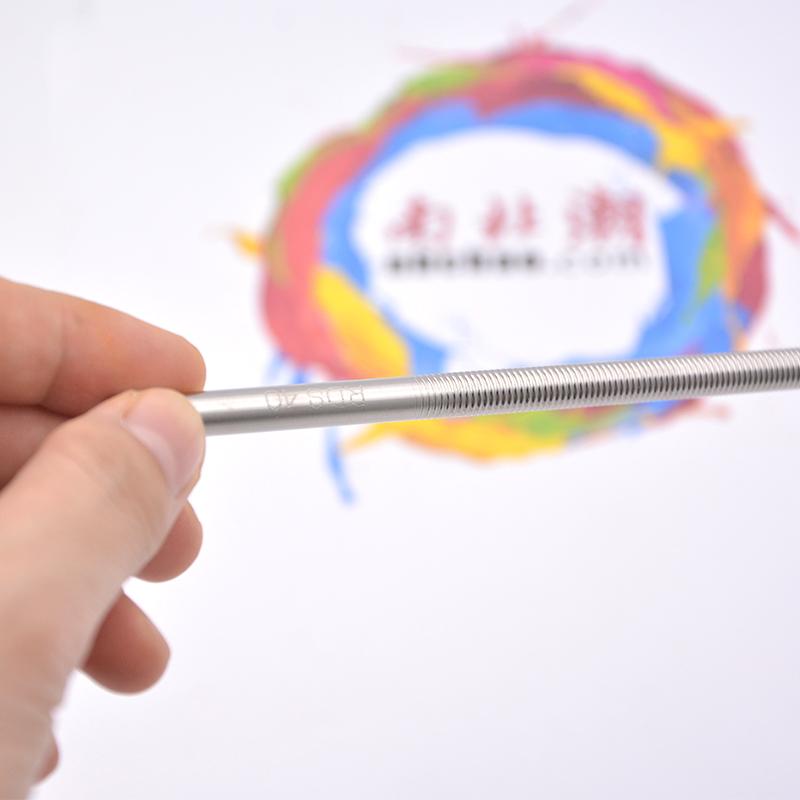

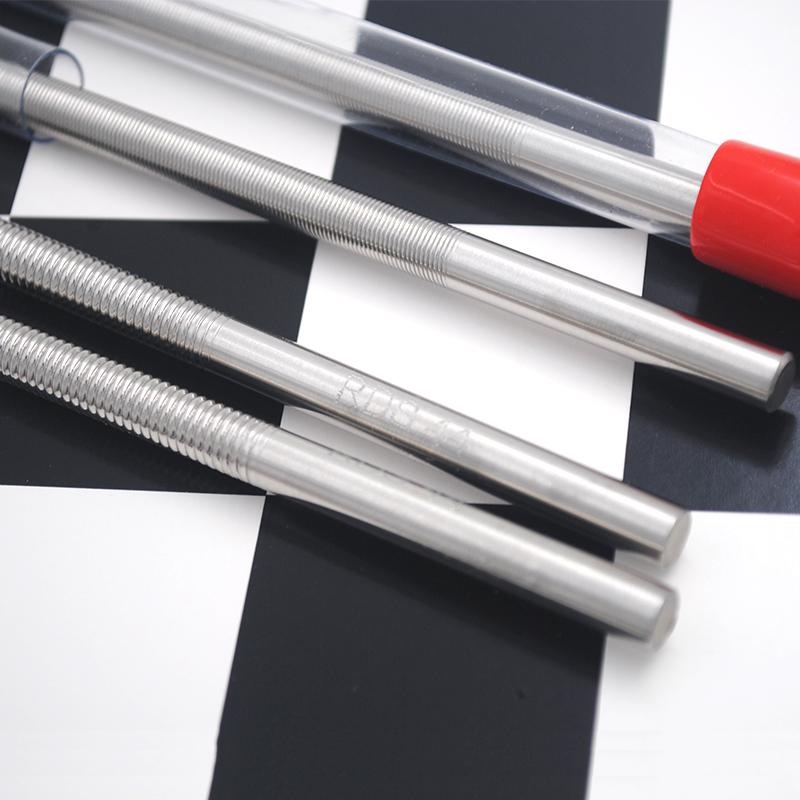

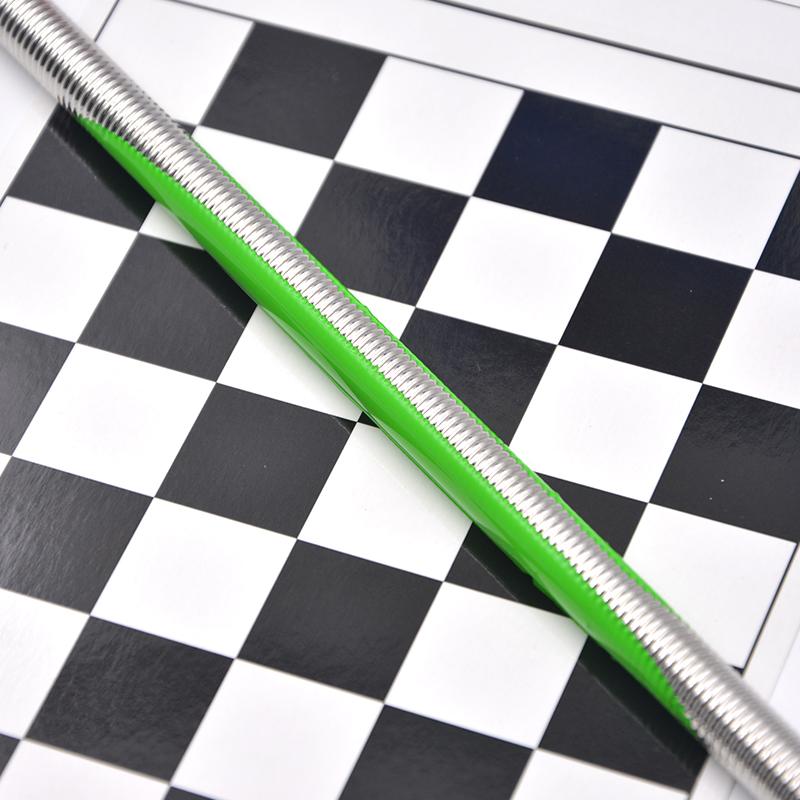

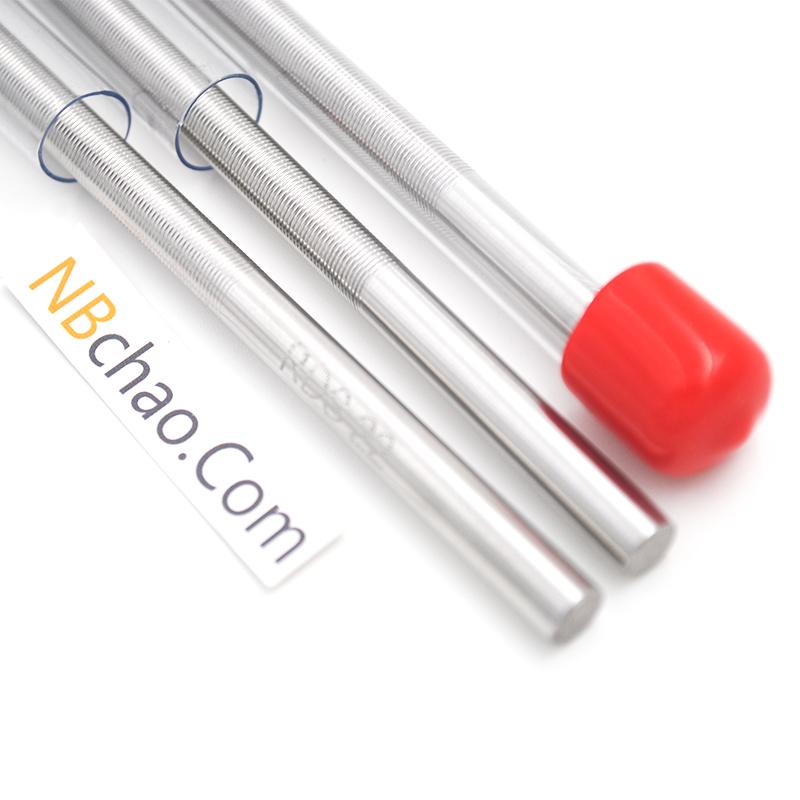

RDS coating Rods Figure 1



RDS coating Rods Figure 2



RDS coating Rods Figure 3



RDS coating Rods Figure 4



RDS coating Rods Figure 5



RDS coating Rods Figure 6



RDS coating Rods Figure 7



RDS coating Rods Figure 8



RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan all extruded wire rods be used for inspection in the GB/T 13452.3 standard?
A Not necessarily, but this 37 #1/4 "extrusion rod can be considered.
QCan silicone coatings be applied to quartz Glass substrates?
A Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
QSpreader and swirl/spin film, pull film what is the difference? Which is good?
A Swirl/spin film coating can not cover the surface of the substrate Glass, Coating is thrown out of the filamentous film and uneven; pull film uniformity is good, Glass substrate on both sides, transparency is general, film thickness is not easy to control; Spreader Glass surface uniformly covered, good transparency, Coating less, and can control the film thickness well.
