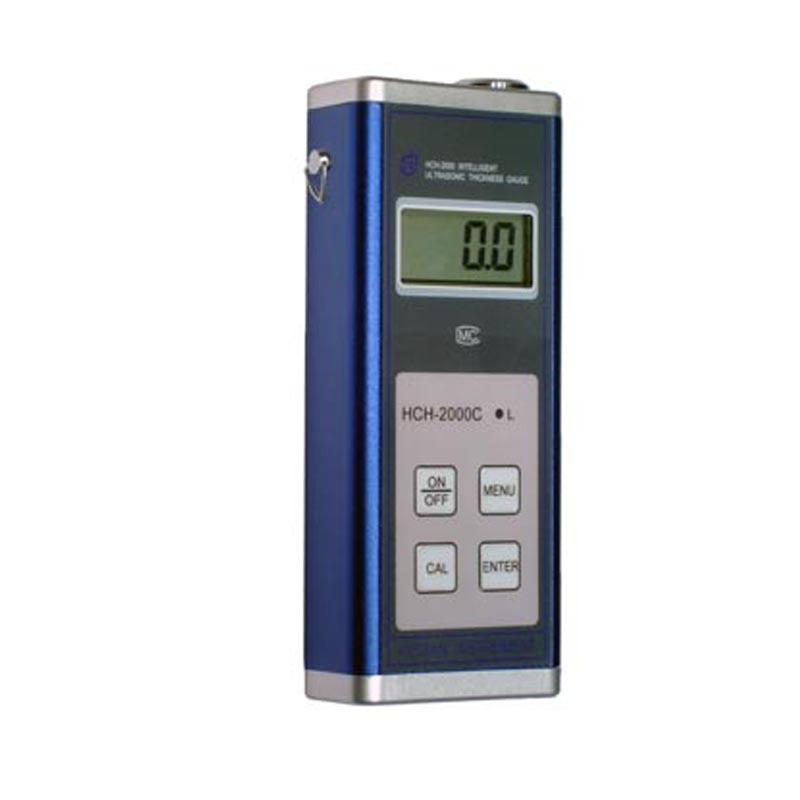

Kodian HCH-2000C Pipeline Ultrasonic Thickness Gauge for Metal, Glass, Plastic
HCH-2000C Pipe Ultrasonic Thickness Gauge is a touch button type Ultrasonic Thickness Gauge. Measurement range is 0.7-199 mm. HCH-2000C is suitable for detecting the thickness of boilers, Pressure Vessel, pipes, metal workpieces, Glass, etc.
Model：
HCH-2000C
Similar products
-
IPRE UT700 Ultrasonic Thickness Gauge measurement range 3~ 200mm$ 506.00SE -
LANDTEK TM8816C Ultrasonic Thickness Gauge for thickness measurement of various ultrasonic conductors$ 381.00SE -
LANDTEK TM8812C Ultrasonic Thickness Gauge split Ultrasonic Thickness Gauge$ 381.00SE -
AMITTARI AT-140A Ultrasonic Thickness Gauge 0.1mm resolution Probe diameter φ 8mm, 5HZ$ 327.00SE -
LANDTEK TM8816 Ultrasonic Thickness Gauge Suitable for Petroleum, Shipbuilding, Machine Manufacturing and Pressure Vessel, Chemical Equipment Boiler, etc$ 343.00SE
KODIN HCH-2000C Ultrasonic Thickness GaugeSPEC
KODIN HCH-2000C Ultrasonic Thickness GaugeDetails
KODIN HCH-2000C Ultrasonic Thickness GaugePacking list
- SKU
- NB003100
- Measurement range
- 0.7~199.9mm
- Probe Frequency
- 5MHz
- Probe style
- Split probe
- Measurement error
- ±(1%H±0.1)mm
- Display resolution
- 0.1mm
- unit system
- mm
- Data storage method
- Manually stored measurements
- Storage Capacity
- 600 Measured values
- Speed of sound
- 1000~9990m/s
- Display
- LCD screen
- Operating language
- Chinese
- Application Software
- none
- Environmental temperature
- -10~60℃
- Working Relative Humidity
- <90%RH
- Power Supply
- 1.2~ 1.5V alkaline battery or rechargeable battery
- Host size
- 51*124*27mm
- Application
- Thickness of Boiler, Pressure Vessel, Pipe, Metal Workpiece, Glass, Plastic, Organic Glass, etc
- Coupled status display
- When the tested part is well coupled with the probe
- shutdown mode
- Standby for five minutes will automatically shut down
HCH-2000C
Ultrasonic Thickness Gauge
Introducing the HCH-2000C Portable Thickness Gage
HCH-2000C ultrasonic Thickness Gauge measuring range: 0.7-199.9mm, display accuracy: 0.1mm, the internal circuit adopts new digital electronic technology and microcomputer technology, and the external is made of metal casing, the instrument is small in size, low power consumption, strong in function, anti-falling, anti-vibration, and more intuitive in touch button operation, which is your preferred instrument in practical applications.
Applications
It can easily and non-destructively inspect the thickness of boilers, pressure vessels, pipes, metal workpieces, glass, plastics, plexiglass, etc.

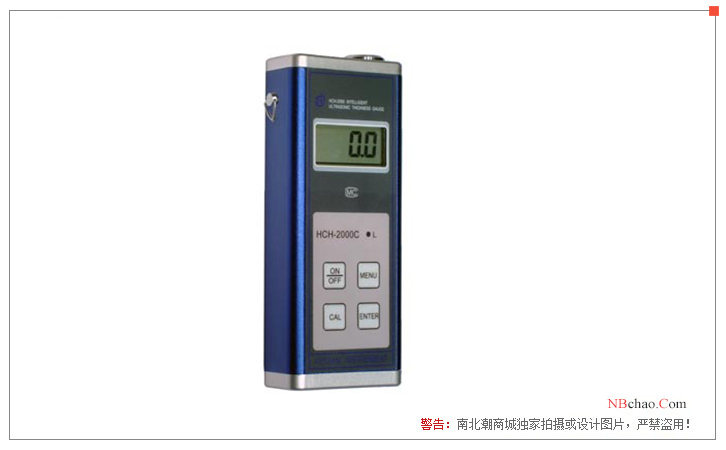

Product display diagram
FAQ
QHow thick can this HCH-2000C Ultrasonic Thickness Gauge be measured?
A
HCH-2000C Ultrasonic Thickness Gauge can detect a minimum thickness of 0.7mm.
