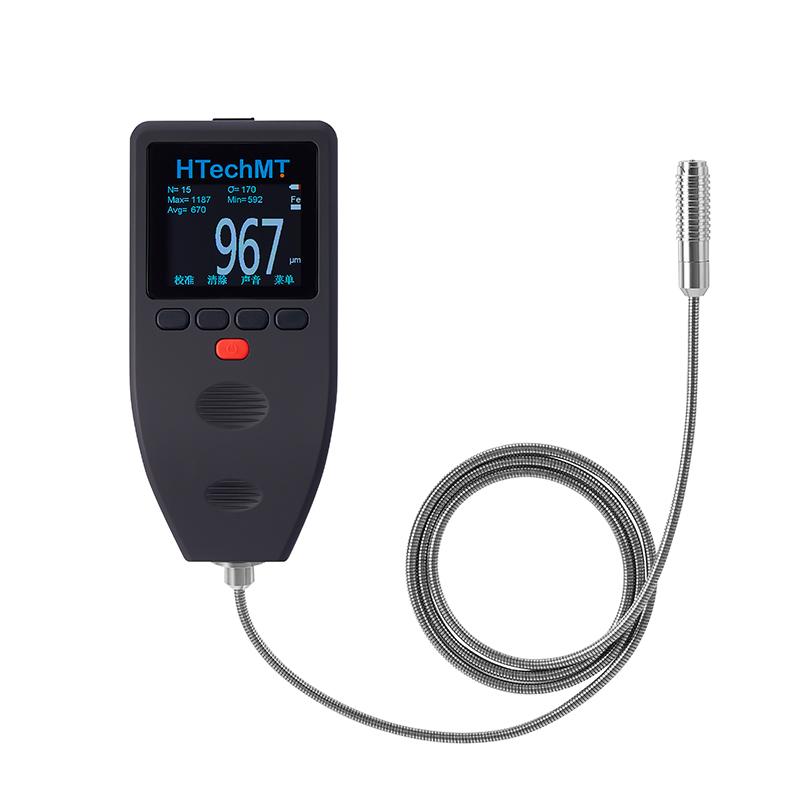

HTechMT CO600FCT + F5S Cladding Thickness Gauge, Iron-based, Advanced, Split 500μm

T-type iron-based host + 0.5mm probe, save 1 million data

Model：

CO600FCT+F5S

HTechMT

Contact

Details SPEC VIDEO CAT OI

HTechMT CO600FCT+F5S Coating Thickness GaugeSPEC

HTechMT CO600FCT+F5S Coating Thickness GaugeDetails

HTechMT CO600FCT+F5S Coating Thickness GaugePacking list

SKU: NB031036

Measurement principle: Magnetic Induction

Measurement range: 0~500μm

margin of error: ±1~3%/2.5μm

Probe material: ruby

Calibrated mode: Smooth two-point calibrated, rough two-point calibrated, zero-point calibrated, factory calibrated

statistical function: Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation

Interface: USB

Power: 2 AA batteries (rechargeable batteries can be used)

Standards: ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400

Language: Chinese, English, German

Display screen: 2.2 TFT LCD

Operating temperature: -10~50℃

Battery life: 20h

Protection level: IP64

Print function: No

Machine Weight: 200g

Machine size: 70*150*32mm

Minimum headroom: 80mm

Minimum measurement surface: R5mm

Minimum substrate thickness: 0.8mm

Test speed: 60 times/minute

Probe size: Φ9mm

statistical function: Create a new group, open a group, view a group, clear a group, delete a group, and exit a group

number of statistical groups: 100 groups

Data storage: Article 1 million

Other functions: Data download to PC, WiFi

CO600FCT+F5S

Coating Thickness Gauge

T-type iron-based host + 0.5mm probe, save 1 million data

HTechMT CO600FCT + F5S Cladding Thickness Gauge, Iron-based, Advanced, Split 500μm Picture

Coating Thickness Gauges provide fast and accurate measurement of non-magnetic coatings or coatings (e.g., e.g., steel, iron) on magnetic metal substrates (e.g., steel, iron).Aluminum, chromium, copper, enamel, rubber, paint, etc.) and non-magnetic metal substrates (e.g. copper, aluminum, zinc, tin, etc.)The thickness of the non-conductive cladding (e.g., enamel, rubber, paint, plastic, etc.).

Executive Standards:ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400

CO600 series classification

CO600 F A E 1

1 Range type: 1/2/3/4/5 for 1.6, 5.0, 14.0, 25.0 and 0.5 mm (integral and integral strip type)

E: Function Type: Economy (E), Basic (B), Statistical (S), Advanced (T)

A: Main unit and probe connection type: Integral type (A), integral strip type (B) and split type (C)

F: Substrate type: Iron-based (F), Non-ferrous (N)

HTechMT CO600FCT+F5S Coating Thickness Gauge Detail Figure 1

Split

	B (Basic)	S (Standard)	T (Advanced)
Iron	CO600FCB	CO600FCS	CO600FCT
Non-iron-based	CO600NCB	CO600NCS	CO600NCT

Monolithic

Range	E (Economy)		B (Basic)
Range	Monolithic	Integral belt line type	Monolithic	Integral belt line type
Iron-based 0.5mm	CO600FAE5	CO600FBE5	CO600FAB5	CO600FBB5
Iron-based 1.6mm	CO600FAE1	CO600FBE1	CO600FAB1	CO600FBB1
Iron-based 5.0mm	CO600FAE2	CO600FBE2	CO600FAB2	CO600FBB2
Iron base 13.0mm				CO600FBB3
Non-ferrous base 0.5mm	CO600NAE5	CO600NBE5	CO600NAB5	CO600NBB5
Non-ferrous base 1.6mm	CO600NAE1	CO600NBE1	CO600NAB1	CO600NBB1
Non-ferrous base 5.0mm	CO600NAE2	CO600NBE2	CO600NAB2	CO600NBB2
Non-ferrous base 13.0mm	CO600NAE3	CO600NBE3	CO600NAB3	CO600NBB3

Range	S (Standard)		T (Advanced)
Range	Monolithic	Integral belt line type	Monolithic	Integral belt line type
Iron-based 0.5mm	CO600FAS5	CO600FBS5	CO600FAT5	CO600FBT5
Iron-based 1.6mm	CO600FAS1	CO600FBS1	CO600FAT1	CO600FBT1
Iron-based 5.0mm	CO600FAS2	CO600FBS2	CO600FAT2	CO600FBT2
Iron base 13.0mm		CO600FBS3		CO600FBT3
Non-ferrous base 0.5mm	CO600NAS5	CO600NBS5	CO600NAT5	CO600NBT5
Non-ferrous base 1.6mm	CO600NAS1	CO600NBS1	CO600NAT1	CO600NBT1
Non-ferrous base 5.0mm	CO600NAS2	CO600NBS2	CO600NAT2	CO600NBT2
Non-ferrous base 13.0mm				CO600NBT3

Series differences

CO600		E	B	S	T
Coating Thickness Gauge		Economical	Basic	Standard	Advanced
Overview	Dimensions	7015032mm
	Weight (with battery)	200g
	display screen	2.2 TFT
	battery	2 x No. 5 batteries (rechargeable batteries available)
	Battery life¹	20 hours
	Operating temperature	-10~50^oC
	precision²	±(1-3)%
	Test speed	60 times/min
Feature settings	Low battery alarm	√	√	√	√
	Smooth two-point calibration	√	√	√	√
	Rough two-point calibration¹		√	√	√
	Rough two-point calibration²		√	√	√
	Zero-point calibration		√	√	√
	Factory calibrated	√	√	√	√
	language³	√	√	√	√
	Ambient light sensors	√	√	√	√
	Automatic screen transversion		√	√	√
	Test tone adjustments		√	√	√
	Display brightness adjustment		√	√	√
	Upper and lower limit functions		√	√	√
Screen settings	Screen statistics function		√	√	√
	Number of measurements		√	√	√
	maximum		√	√	√
	minimum		√	√	√
	average value		√	√	√
	standard deviation		√	√	√
Array statistics	Create a new group			√	√
	Open the group			√	√
	View the group			√	√
	Purge groups			√	√
	Delete the group			√	√
	Leave the group			√	√
	Number of groups			10 groups	100 groups
	Total storage			100,000 pieces	1,000,000
other	USB connection to PC	√	√	√	√
	Data is downloaded to a PC			√	√
	Firmware upgrades	√	√	√	√
	Wifi			√	√

1 Different batteries or settings may vary;

2 Accuracy depends on the accuracy of the standard and the user's proficiency;

3 The language is updated without notice, please contact customer service.

Probe selection

shape	Probe model	A	B	C	Range	Accuracy 1	Minimum headroom	Minimum test radius	Minimum substrate thickness
	CO600F1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600F5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.8mm
	CO600F1H	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2H	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600N1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.3mm
	CO600N2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.3mm
	CO600N5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.3mm
	CO600F1R	9	40	50	1.6mm	± 1-3% or 2.5μm	30mm	5mm	0.8mm
	CO600F2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.8mm
	CO600N1R	9	40	50	1.5mm	± 1-3% or 2.5μm	30mm	5mm	0.3mm
	CO600N2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.3mm
	CO600F3S	16.5	40	50	13.0mm	± 1-3% or 50μm	80mm	10mm	1.0mm
	CO600F4S	24	60	50	26.0mm	± 1-3% or 100μm	120mm	30mm	1.0mm

*High temperature probe temperature is 250°C

FAQ

QHow much data can this cladding thickness gauge store?

A Hello, this one can store 100 groups and 1 million pieces of data.

QIs there a JB/T7217 standard Coating thickness gauge?

A This HTechMT Coating thickness gauge is ok!
