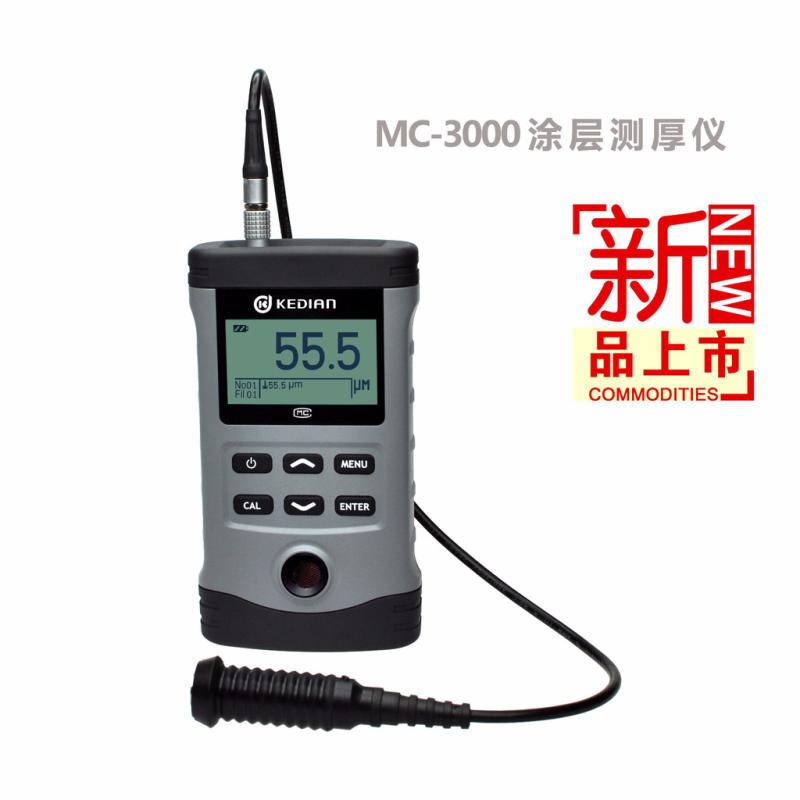

Coating Thickness Gauge MC3000A/C/D

MC3000A

Introduction to MC3000A/C/D Coating Thickness Gauges

MC-3000 series coating Thickness Gauge can easily and non-destructively measure the thickness of non-magnetic coatings on ferromagnetic materials, such as zinc, copper, chromium or paint, enamel, fiberglass, rubber, spraying, asphalt and other coatings on the surface of steel.

Key features

● Basic measurement mode: normal mode, minimum mode, statistical mode

● Monitoring and measurement mode: the difference can be set, and the upper and lower limit alarms can be set

● You can delete and store a single data, a group of data, or all data

● Zero-point calibration, two-point calibration and system calibration can be performed

● The shutdown mode can be set, the backlight can be turned on or off, and the factory state can be restored

● You can print stored values and statistical values

● A total of 6 groups of data are stored in groups, and each group stores 100 measurement points

●Stored measurements can be viewed in groups

skillParameters

1. Measuring range: MC-3000A 0-1200um

                           MC-3000C   0-5000um

                           MC-3000D   10-9000um

2. Display accuracy: 0.1um

3. UnderVoltage display: "" is displayed in the upper left corner

4. Display mode: 3-digit LCD digital display

5. Storage method: Manual storage measurement

6. Measurement error: Measurement error (H is the thickness of the layer to be measured):

A: ±[（1~3）%H+1um]

C:±[（2~3）%H+1um]

D: ±(3%H+1um)

Repeatability:

A:±（0.5%H+1um）

C:±（1%H+1um）

D:±（1%H+2um）

Display accuracy: 0~99u: 0.1 um; 100~999um: 1um; 1mm~9mm: 0.01mm

7. Stored value: 6 groups of 100 measuring points per group

8. Statistical function: average, maximum, minimum

9. Environment: Temperature: 0°C ~ 40°C Relative Humidity less than 90%

10. Power supply: 2 No. 5 batteries, continuous use time up to 200 hours

11. Automatic shutdown: The shutdown mode can be set manually

12. Key disk: 6 keys waterproof, oil-proof keyboard

13. SIZE/WEIGHT: 146*81*30MM 360 GRAMS

14. Optional : printer and communication printing line, microcomputer communication software, internal anti-corrosion probe

15. Standard configuration: main unit, probe, standard sample, manual, warranty card, certificate, No. 5 battery, suitcase

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
