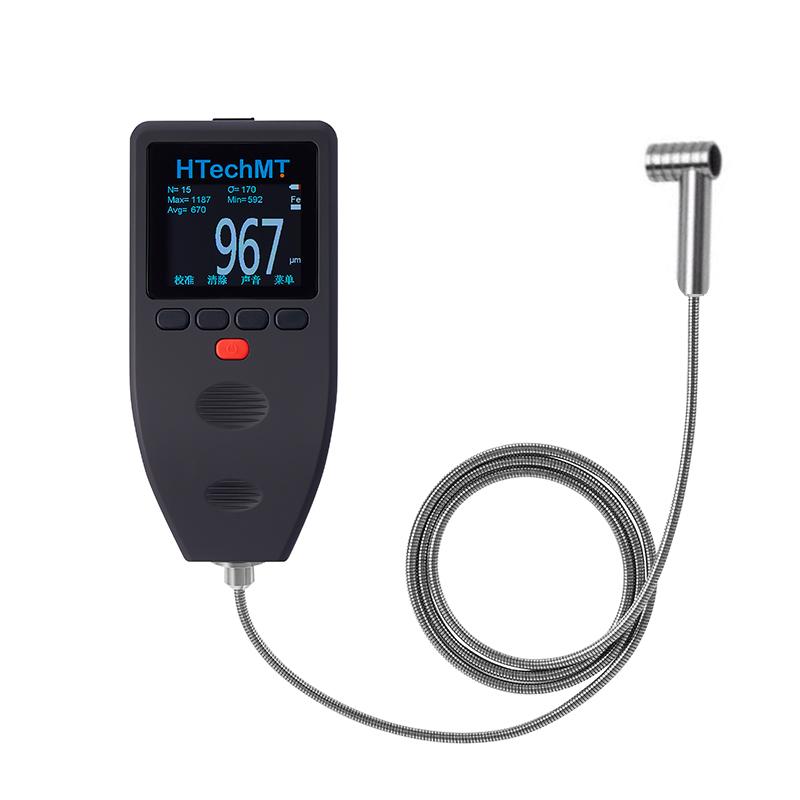

HTechMT CO600FBB2R Coating Thickness Gauge Iron base right angle, basic type 5mm

CO600FBB2R

Coating Thickness Gauge

Type B iron-based integral belt line type 5.0mm, screen statistics function, right angle probe

The coating Thickness Gauge can quickly and accurately measure the thickness of non-magnetic coatings or coatings (such as aluminum , chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron) and non-magnetic metal substrates (such as The thickness of non-conductive coatings (such as enamel , rubber, paint, plastics, etc.) on copper, aluminum, zinc, tin, etc.).

Implementation standards: ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/D1400

CO600 series classification

CO600 FA E 1

 1 Range type: 1/2/3/4/5 corresponds to 1.6, 5.0, 14.0, 25.0 and 0.5mm (whole and whole with line type)

 E: Function type: Economic type (E), basic type (B), statistical type (S), advanced type (T)

 A: Host and probe connection types: integral type (A), integral with line type (B) and split type (C)

 F: Substrate type: Iron-based (F), non-ferrous-based (N)

split type

Integral

Series differences

1 There are differences between different batteries or settings;

2 The accuracy depends on the accuracy of the standard film and the user's proficiency;

3 Language types will be updated without further notice, please contact customer service.

Probe selection

shape	Probe model	A	B	C	Measuring range	Accuracy 1	Minimum headroom	Minimum test radius	Minimum substrate thickness
	CO600F1S	9	40	50	1.6mm	±1-3% or 2.5 μm	80mm	5mm	0.8mm
	CO600F2S	9	40	50	5.0mm	±1-3% or 20 μm	80mm	5mm	0.8mm
	CO600F5S	9	40	50	0.5mm	±1-3% or 2.0 μm	80mm	5mm	0.8mm
	CO600F1H	9	40	50	1.6mm	±1-3% or 2.5 μm	80mm	5mm	0.8mm
	CO600F2H	9	40	50	5.0mm	±1-3% or 20 μm	80mm	5mm	0.8mm
	CO600N1S	9	40	50	1.6mm	±1-3% or 2.5 μm	80mm	5mm	0.3mm
	CO600N2S	9	40	50	5.0mm	±1-3% or 20 μm	80mm	5mm	0.3mm
	CO600N5S	9	40	50	0.5mm	±1-3% or 2.0 μm	80mm	5mm	0.3mm
	CO600F1R	9	40	50	1.6mm	±1-3% or 2.5 μm	30mm	5mm	0.8mm
	CO600F2R	9	40	50	5.0mm	±1-3% or 20 μm	30mm	5mm	0.8mm
	CO600N1R	9	40	50	1.5mm	±1-3% or 2.5 μm	30mm	5mm	0.3mm
	CO600N2R	9	40	50	5.0mm	±1-3% or 20 μm	30mm	5mm	0.3mm
	CO600F3S	16.5	40	50	13.0mm	±1-3% or 50 μm	80mm	10mm	1.0mm
	CO600F4S	twenty four	60	50	26.0mm	±1-3% or 100 μm	120mm	30mm	1.0mm

*High temperature probe temperature is 250℃

Packing list：host X1, AA battery X2, test piece set X1, zero adjustment plate X1, certificate X1, manual X1, silicone protective cover X1, instrument bag (cloth bag) X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
