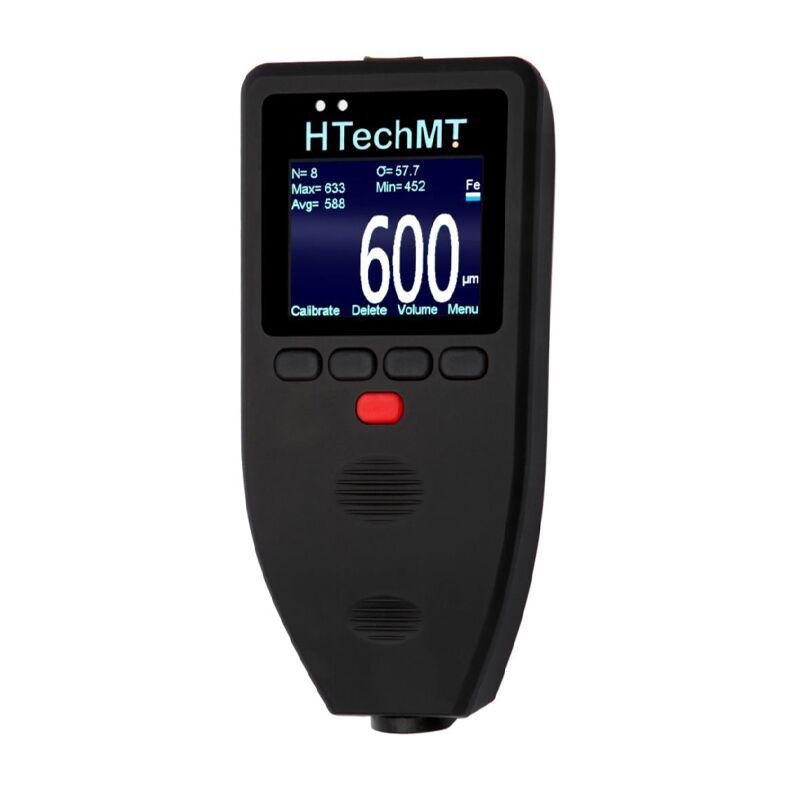

HTechMT CO600FAT5W Film Thickness Gauge iron base, advanced type 500μm

T-type iron-based integral type, 0.5mm, 1 million data stored, WIFI transmission

Model：

CO600FAT5W

HTechMT

Contact

Details SPEC VIDEO CAT OI

HTechMT CO600FAT5W Coating Thickness GaugeSPEC

HTechMT CO600FAT5W Coating Thickness GaugeDetails

HTechMT CO600FAT5W Coating Thickness GaugePacking list

SKU: NB031077

Measurement principle: Magnetic Induction

Measurement range: 0~500μm

margin of error: ±1%

Probe material: ruby

Calibrated mode: Smooth two-point calibrated, rough two-point calibrated, zero-point calibrated, factory calibrated

statistical function: Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation

Interface: USB

Power Supply: 2 AA batteries (rechargeable batteries can be used)

Standards: ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400

system language: Chinese, English, German

Display screen: 2.2 TFT LCD screen

Operating temperature: -10~50℃

Battery life: 20h

Protection level: IP64

Print function: No

Machine Weight: 200g

Machine size: 70*150*32mm

Minimum headroom: 80mm

Minimum measurement surface: R5mm

Minimum substrate thickness: 0.8mm

Test speed: 60 times/minute

Probe size: Φ9mm

statistical function: Create a new group, open a group, view a group, clear a group, delete a group, and exit a group

number of statistical groups: 100 groups

Data storage: Article 1 million

Other functions: Data download to PC, WiFi, firmware upgrade

CO600FAT5W

Coating Thickness Gauge

T-type iron-based integral type, 0.5mm, 1 million data stored, WIFI transmission

HTechMT CO600FAT5W Film Thickness Gauge iron base, advanced type 500μm Picture

Coating Thickness Gauges provide fast and accurate measurement of non-magnetic coatings or coatings (e.g., e.g., steel, iron) on magnetic metal substrates (e.g., steel, iron).Aluminum, chromium, copper, enamel, rubber, paint, etc.) and non-magnetic metal substrates (e.g. copper, aluminum, zinc, tin, etc.)The thickness of the non-conductive cladding (e.g., enamel, rubber, paint, plastic, etc.).

Executive Standards:ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400

CO600 series classification

CO600 F A E 1

1 Range type: 1/2/3/4/5 for 1.6, 5.0, 14.0, 25.0 and 0.5 mm (integral and integral strip type)

E: Function Type: Economy (E), Basic (B), Statistical (S), Advanced (T)

A: Main unit and probe connection type: Integral type (A), integral strip type (B) and split type (C)

F: Substrate type: Iron-based (F), Non-ferrous (N)

HTechMT CO600FAT5W Coating Thickness Gauge Detail Figure 1

Split

	B (Basic)	S (Standard)	T (Advanced)
Iron	CO600FCB	CO600FCS	CO600FCT
Non-iron-based	CO600NCB	CO600NCS	CO600NCT

Monolithic

Range	E (Economy)		B (Basic)
Range	Monolithic	Integral belt line type	Monolithic	Integral belt line type
Iron-based 0.5mm	CO600FAE5	CO600FBE5	CO600FAB5	CO600FBB5
Iron-based 1.6mm	CO600FAE1	CO600FBE1	CO600FAB1	CO600FBB1
Iron-based 5.0mm	CO600FAE2	CO600FBE2	CO600FAB2	CO600FBB2
Iron base 13.0mm				CO600FBB3
Non-ferrous base 0.5mm	CO600NAE5	CO600NBE5	CO600NAB5	CO600NBB5
Non-ferrous base 1.6mm	CO600NAE1	CO600NBE1	CO600NAB1	CO600NBB1
Non-ferrous base 5.0mm	CO600NAE2	CO600NBE2	CO600NAB2	CO600NBB2
Non-ferrous base 13.0mm	CO600NAE3	CO600NBE3	CO600NAB3	CO600NBB3

Range	S (Standard)		T (Advanced)
Range	Monolithic	Integral belt line type	Monolithic	Integral belt line type
Iron-based 0.5mm	CO600FAS5	CO600FBS5	CO600FAT5	CO600FBT5
Iron-based 1.6mm	CO600FAS1	CO600FBS1	CO600FAT1	CO600FBT1
Iron-based 5.0mm	CO600FAS2	CO600FBS2	CO600FAT2	CO600FBT2
Iron base 13.0mm		CO600FBS3		CO600FBT3
Non-ferrous base 0.5mm	CO600NAS5	CO600NBS5	CO600NAT5	CO600NBT5
Non-ferrous base 1.6mm	CO600NAS1	CO600NBS1	CO600NAT1	CO600NBT1
Non-ferrous base 5.0mm	CO600NAS2	CO600NBS2	CO600NAT2	CO600NBT2
Non-ferrous base 13.0mm				CO600NBT3

Series differences

CO600		E	B	S	T
Coating Thickness Gauge		Economical	Basic	Standard	Advanced
Overview	Dimensions	7015032mm
	Weight (with battery)	200g
	display screen	2.2 TFT
	battery	2 x No. 5 batteries (rechargeable batteries available)
	Battery life¹	20 hours
	Operating temperature	-10~50^oC
	precision²	±(1-3)%
	Test speed	60 times/min
Feature settings	Low battery alarm	√	√	√	√
	Smooth two-point calibration	√	√	√	√
	Rough two-point calibration¹		√	√	√
	Rough two-point calibration²		√	√	√
	Zero-point calibration		√	√	√
	Factory calibrated	√	√	√	√
	language³	√	√	√	√
	Ambient light sensors	√	√	√	√
	Automatic screen transversion		√	√	√
	Test tone adjustments		√	√	√
	Display brightness adjustment		√	√	√
	Upper and lower limit functions		√	√	√
Screen settings	Screen statistics function		√	√	√
	Number of measurements		√	√	√
	maximum		√	√	√
	minimum		√	√	√
	average value		√	√	√
	standard deviation		√	√	√
Array statistics	Create a new group			√	√
	Open the group			√	√
	View the group			√	√
	Purge groups			√	√
	Delete the group			√	√
	Leave the group			√	√
	Number of groups			10 groups	100 groups
	Total storage			100,000 pieces	1,000,000
other	USB connection to PC	√	√	√	√
	Data is downloaded to a PC			√	√
	Firmware upgrades	√	√	√	√
	Wifi			√	√

1 Different batteries or settings may vary;

2 Accuracy depends on the accuracy of the standard and the user's proficiency;

3 The language is updated without notice, please contact customer service.

Probe selection

shape	Probe model	A	B	C	Range	Accuracy 1	Minimum headroom	Minimum test radius	Minimum substrate thickness
	CO600F1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600F5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.8mm
	CO600F1H	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2H	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600N1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.3mm
	CO600N2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.3mm
	CO600N5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.3mm
	CO600F1R	9	40	50	1.6mm	± 1-3% or 2.5μm	30mm	5mm	0.8mm
	CO600F2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.8mm
	CO600N1R	9	40	50	1.5mm	± 1-3% or 2.5μm	30mm	5mm	0.3mm
	CO600N2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.3mm
	CO600F3S	16.5	40	50	13.0mm	± 1-3% or 50μm	80mm	10mm	1.0mm
	CO600F4S	24	60	50	26.0mm	± 1-3% or 100μm	120mm	30mm	1.0mm

*High temperature probe temperature is 250°C
