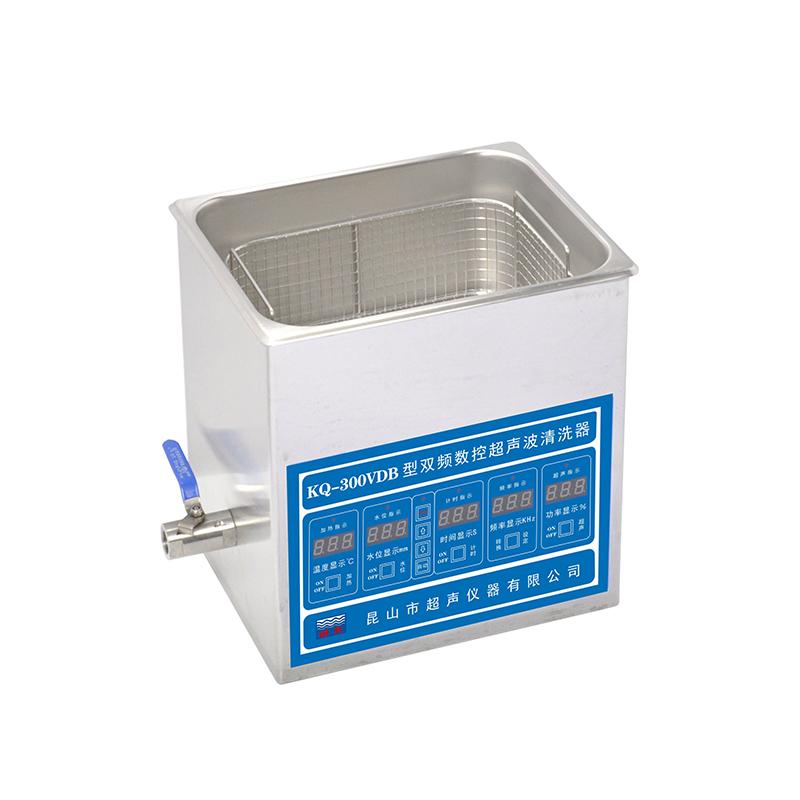

SHUMEI KQ-300VDB dual frequency numerical control ultrasonic cleaner
Model：
KQ-300VDB
shumei KQ-300VDB Dual frequency numerical control ultrasonic cleanerSPEC
shumei KQ-300VDB Dual frequency numerical control ultrasonic cleanerDetails
shumei KQ-300VDB Dual frequency numerical control ultrasonic cleanerPacking list
- SKU
- NB031106
- Dimensions
- 320*264*365mm
- Inner slot size
- 300*240*150mm
- Capacity
- 10L
- Ultrasonic Frequency
- 45/80KHz
- Frequency conversion time adjustable
- 1~999S
- Ultrasonic Power
- 300W
- Ultrasonic Power Adjustable Range
- 40~100%
- Water level display
- Yes.
- Heating power
- 400W
- Temperature setting range
- RT+~80℃
- Timer Range
- 1~480min
- flat cover
- without
- Drainage function
- manual control
KQ-300VDB
Dual frequency numerical control ultrasonic cleaner
Main performance characteristics:
The cleaner is operated by single-chip microcomputer software
The sound-reducing cover, housing, and cleaning tank of the cleaner are all made of good stainless steel
Digital display of over-temperature, over-Voltage, over-current, low water level, no solution protection indication
Digital display memory, setting display ultrasonic working time, ultrasonic power, ultrasonic frequency, ultrasonic frequency automatic conversion time, liquid level (andActual level), heating temperature (and actual temperature)
The cleaner circuit has an automatic frequency sweep function, which can generate a continuous pulse jet, so that the cleaning effect is more obvious and the work is more stable
The cleaner circuit and components are upgraded and matched, with high work conversion rate and low reactive power loss
Two combinations of ultrasonic frequencies are 20/40KHz, 28/50KHz, 40/60KHz, 40/100KHz, 45/80KHz, 45/100KHz, and 80/100KHz
Serial models
| Model | Instrument size (mm) | Cleaning tank size(mm) | Capacity(mm) | Ultrasonic Frequency (KHz) | Adjustable frequency conversion time(S) | Ultrasonic Power (W) | Adjustable power (%) | Inlet water level display | Heating power (W) | Temperature setting range (°C) | Adjustable time (min) | Sound Falling Cap | drain | |
| KQ-100VDB | 260x160x310 | 230x140x100 | 3 | 45/80 | 1-999 | 100 | 40-100 | not | 400 | Room temperature -80 | 1-480 | not | Hand control | |
| KQ-100VDE | 260x160x325 | 230x140x100 | 3 | 45/80 | 1-999 | 100 | 40-100 | not | 400 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-100VDV | 350x250x390 | 230x140x130 | 4 | 45/80 | 1-999 | 100 | 40-100 | not | 400 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-200VDB | 320x174x365 | 300x150x150 | 6 | 45/80 | 1-999 | 200 | 40-100 | Yes | 400 | Room temperature -80 | 1-480 | not | Hand control | |
| KQ-200VDE | 320x174x380 | 300x150x150 | 6 | 45/80 | 1-999 | 200 | 40-100 | Yes | 400 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-200VDV | 410x265x440 | 300x150x180 | 8 | 45/80 | 1-999 | 200 | 40-100 | Yes | 400 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-300VDB | 320x264x365 | 300x240x150 | 10 | 45/80 | 1-999 | 300 | 40-100 | Yes | 400 | Room temperature -80 | 1-480 | not | Hand control | |
| KQ-300VDE | 320x264x380 | 300x240x150 | 10 | 45/80 | 1-999 | 300 | 40-100 | Yes | 400 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-300VDV | 435x398x445 | 300x240x180 | 13 | 45/80 | 1-999 | 300 | 40-100 | Yes | 400 | Room temperature -80 | 1-480 | Yes | Electrically controlled | |
| KQ-500VDB | 530x320x365 | 500x300x150 | 22.5 | 45/80 | 1-999 | 500 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | not | Hand control | |
| KQ-500VDE | 530x320x380 | 500x300x150 | 22.5 | 45/80 | 1-999 | 500 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-500VDV | 638x460x500 | 500x300x180 | 27 | 45/80 | 1-999 | 500 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | Yes | Electrically controlled | |
| KQ-600VDB | 530x320x365 | 500x300x150 | 22.5 | 45/80 | 1-999 | 600 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | not | Hand control | |
| KQ-600VDE | 530x320x380 | 500x300x150 | 22.5 | 45/80 | 1-999 | 600 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-600VDV | 638x460x500 | 500x300x180 | 27 | 45/80 | 1-999 | 600 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | Yes | Electrically controlled | |
| KQ-700VDB | 530x320x365 | 500x300x150 | 22.5 | 45/80 | 1-999 | 700 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | not | Hand control | |
| KQ-700VDE | 530x320x380 | 500x300x150 | 22.5 | 45/80 | 1-999 | 700 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | Yes | Hand control | |
| KQ-700VDV | 638x460x500 | 500x300x180 | 27 | 45/80 | 1-999 | 700 | 40-100 | Yes | 800 | Room temperature -80 | 1-480 | Yes | Electrically controlled | |
