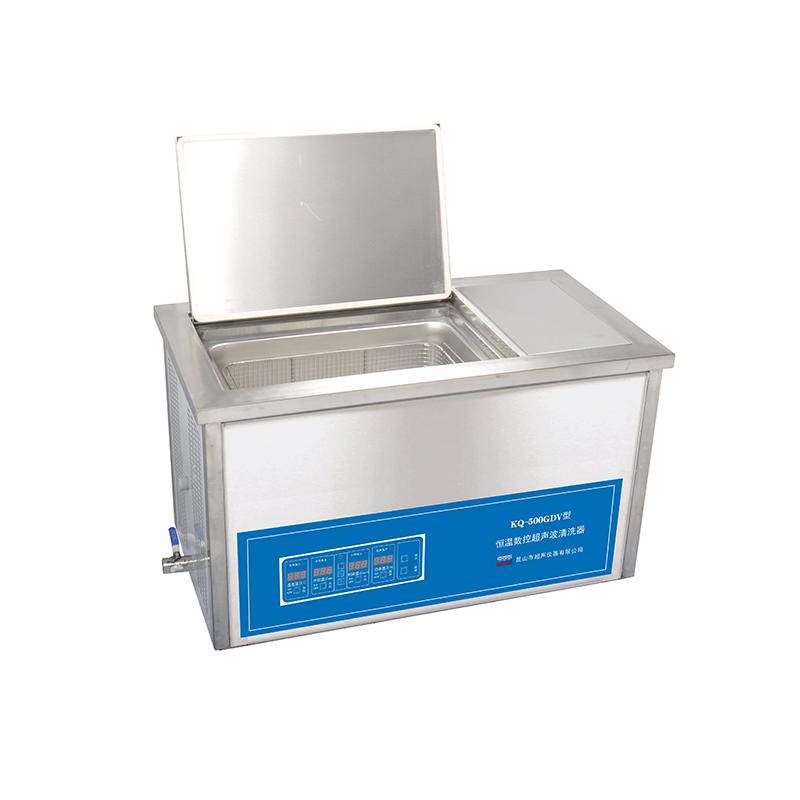

SHUMEI KQ-500GDV thermostatic numerical control ultrasonic cleaner
KQ-500GDV
shumei KQ-500GDV Thermostatic numerical control ultrasonic cleanerSPEC
shumei KQ-500GDV Thermostatic numerical control ultrasonic cleanerDetails
shumei KQ-500GDV Thermostatic numerical control ultrasonic cleanerPacking list
- SKU
- NB031137
- Dimensions
- 910*490*540mm
- Inner slot size
- 500*300*180mm
- Capacity
- 27L
- Ultrasonic Frequency
- 40KHz
- Ultrasonic Power
- 500W
- Ultrasonic Power Adjustable Range
- 40~100%
- Water level display
- Yes.
- Heating power
- 1000W
- Refrigeration power
- 350W
- Temperature setting range
- RT+0~80℃
- Timer Range
- 1~480min
Main performance characteristics:
The cleaner is operated by single-chip microcomputer software
The sound-reducing cover and cleaning tank of the cleaner are made of good stainless steel
The constant temperature series cleaner has good sealing, and has the effect of sound insulation and heat insulation
Digital display of over-temperature, over-Voltage, over-current, low water level, no solution protection indication
Digital display memory, setting display ultrasonic working time, ultrasonic power, inlet liquid level (and actual liquid level), heating temperature (and actual temperature)
Digital display memory, setting display constant temperature in the cleaning machine tank, ± 2°C
The cleaner circuit has an automatic frequency sweep function, which can generate a continuous pulse jet, so that the cleaning effect is more obvious and the work is more stable
The cleaner circuit and components are upgraded and matched, with high work conversion rate and low reactive power loss
The single ultrasonic frequency is 20KHz, 25KHz, 28KHz, 33KHz, and 40KHz
Serial models
| Model | Instrument size (mm) | Cleaning tank size(mm) | Capacity(L) | Ultrasonic Frequency (KHz) | Ultrasonic Power (W) | Adjustable power (%) | Inlet water level display | Heating power (W) | Refrigeration power(W) | Temperature setting range (°C) | Adjustable time (min) |
| KQ-300GDV | 640×490×540 | 300×240×180 | 13 | 40 | 300 | 40-100 | Yes | 500 | 350 | 0-80 | 1-480 |
| KQ-500GDV | 910×490×540 | 500×300×180 | 27 | 40 | 500 | 40-100 | Yes | 1000 | 350 | 0-80 | 1-480 |
| KQ-600GDV | 910×490×540 | 500×300×180 | 27 | 40 | 600 | 40-100 | Yes | 1000 | 350 | 0-80 | 1-480 |
| KQ-700GDV | 910×490×540 | 500×300×180 | 27 | 40 | 700 | 40-100 | Yes | 1000 | 350 | 0-80 | 1-480 |
