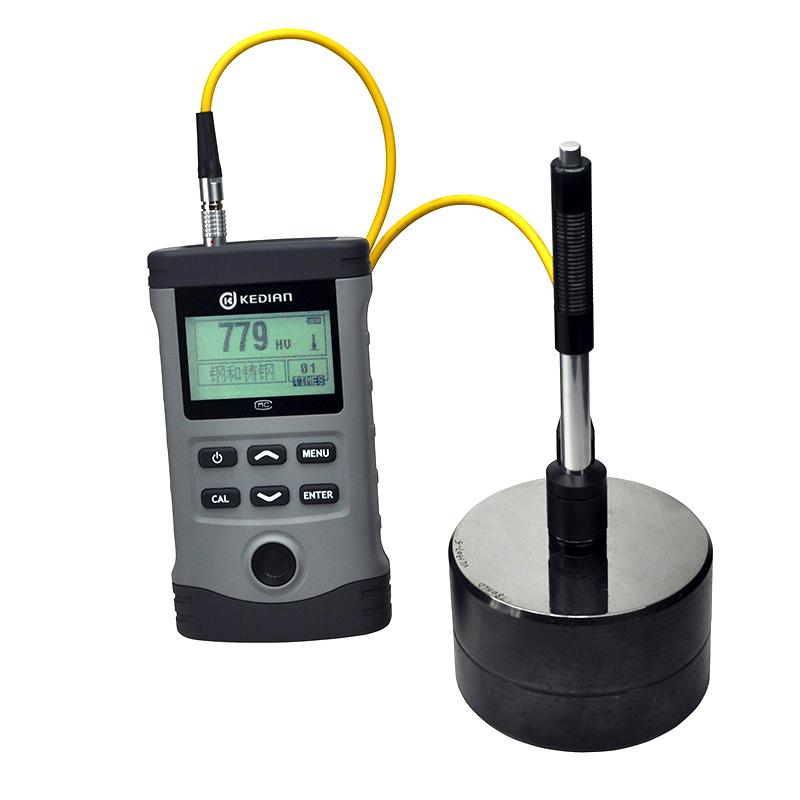

YD-3000A Leeb Hardness Tester

YD-3000A

Leeb Hardness Tester

YD-3000A Leeb Hardness TesterApplications

Installed mechanical or permanently assembled components.

Mold cavities.

Heavy-duty workpieces.

Failure analysis of pressure vessels, turbine-generator sets and their equipment.

Workpieces with a tight test space.

Bearings and other parts.

Formal original records of test results are required.

Material division of metal material warehouse.

Rapid inspection of multiple measuring parts in a large area of large workpieces.

Features

l According to the Leeb hardness measurement principle, it can detect a variety of metal materials with high precision.

l Support "Steel" material, when testing "Forged Steel" specimens with D/DC impact device, the HB value can be read directly, without manual table checking.

l It is convenient to switch to all hardness systems (HL, HB, HRB, HRC, HRA, HV, HS) and convert the measured values of each hardness system in parallel.

l Large-screen 128×64 graphic dot matrix LCD display, rich in information and intuitive.

l Full Chinese display, menu-based operation, simple and convenient operation.

l Fully automatic backlight display, convenient to use in dark environments.

l RS232 communication interface, which can easily and quickly exchange data and set parameters with the PC.

l One main machine can be equipped with 7 different impact devices, and the type of impact device can be automatically identified. There is no need to recalibrate when replaced.

l It can store up to 600 sets of hardness measurement data (impact times 32~1). Each set of data includes information such as a single measurement, an average value, the date of measurement, the direction of impact, the number of times, the material, the hardness system, etc.

l The upper and lower limits of hardness value can be set in advance, and the automatic alarm will be given when the range is exceeded, which is convenient for the needs of users for batch testing.

l The power supply adopts 2 AA (No. 5) ordinary alkaline batteries, which can work continuously for no less than 150 hours, and has power-saving functions such as automatic sleep and automatic shutdown.

l There is a residual power indicator icon on the LCD, prompting the user to replace the battery in time.

l It has the function of calibration of the value indication software.

l It can be equipped with powerful microcomputer software, which has rich functions such as transmitting measurement results, measuring value storage management, measuring statistical analysis, printing measurement reports, etc., to meet the higher requirements of quality assurance activities and management.

l Design according to the standard: "Technical Conditions for Leeb Hardness Tester" JB/T 9378-2001.

Parameters

l Measurement range: HLD(170~960)HLD

l Measurement direction: 360° vertical downward, oblique down, horizontal, oblique upward, vertical upward

l Hardness system: Leeb (HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Rockwell A (HRA), Vickers (HV), Shore (HS)

l Measuring materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel

l Display: LCD, 128×64 graphic dot matrix LCD

l Data storage: up to 600 groups (impact times 32~1)

l Working Voltage: 2×1.5V ordinary alkaline battery

l Continuous working time: about 100 hours (when the backlight is not on)

l Communication interface: RS232

l Indication error: the error is less than or equal to 6HLD (HLD=800),

Repeatability Error less than 6HLD (at HLD=800)

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
