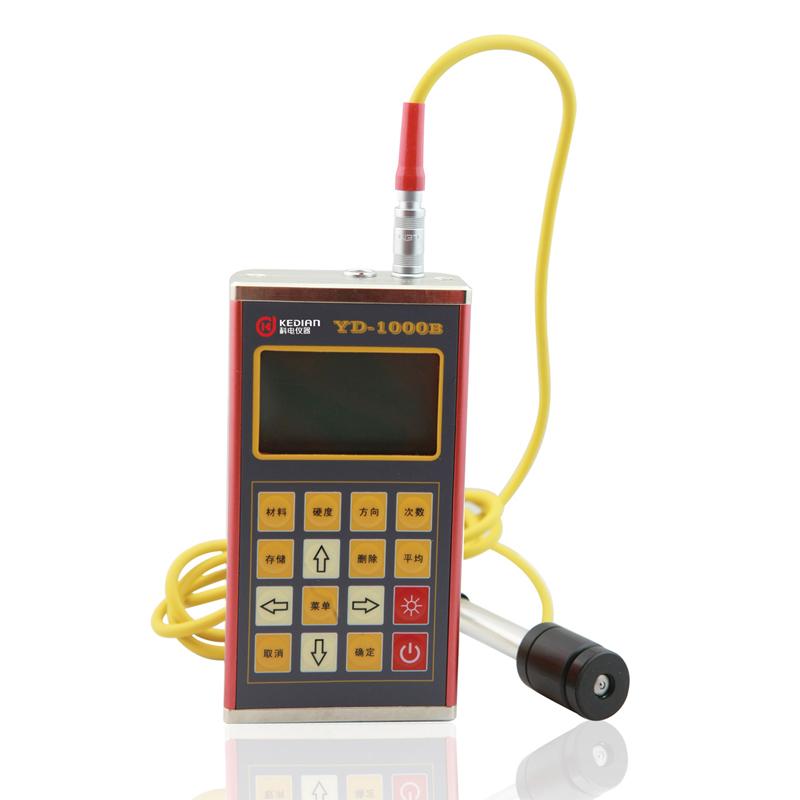

YD-1000B Portable Hardness Tester

YD-1000B

YD-1000B Portable Hardness Tester Introduction

Based on the Leeb hardness measurement principle, a wide range of metal materials can be inspected with high precision.

The "Steel" material is supported, and when the "Forged Steel" specimen is tested with a D/DC type impact device, the HB value can be read directly, eliminating the need to manually check the table.

It is convenient to switch to all hardness systems (HL, HB, HRB, HRC, HRA, HV, HS) and convert the measured values of each hardness system in parallel.

The large-screen 128×64 graphic dot matrix LCD display is rich in information and intuitive.

Full Chinese display, menu-based operation, simple and convenient operation.

It has a bright backlit display, which is convenient for use in low-light environments.

It can store up to 600 sets of hardness measurement data (impact times 32~1). Each set of data includes information such as a single measurement, an average value, the date of measurement, the direction of impact, the number of times, the material, the hardness system, etc. l The upper and lower limits of hardness value can be set in advance, and the automatic alarm will be given when the range is exceeded, which is convenient for users to test in batches.

 Compact, portable, and highly reliable in the fully sealed metal housing, it is suitable for harsh operating environments, and is resistant to vibration, shock, and electromagnetic interference.

The power supply adopts 2 AA (No. 5) ordinary alkaline batteries, which can work continuously for no less than 150 hours, and has power-saving functions such as automatic sleep and automatic shutdown.

  There is a residual power indicator icon on the LCD, prompting the user to replace the battery in time.

 It has the function of calibration of the indicator software.

 It can be equipped with powerful microcomputer software, which has rich functions such as transmission of measurement results, measurement value storage management, measurement statistical analysis, and printing measurement report to meet the higher requirements of quality assurance activities and management.

 The design is based on the standard: "Technical Conditions for Leeb Hardness Tester" JB/T 9378-2001. Measuring range: HLD: 170-960HRC: 17.9-68.5HRB: 59.6-99.6HB: 127-651HV: 83-976HS: 30.1-110.1

Applications

Installed mechanical or permanently assembled components

Workpieces with a tight test space, such as mold cavities

Rapid inspection of multiple measuring parts in a large area of large workpieces

Failure analysis of pressure vessels, automotive generators, and other equipment

Production line for bearings and other parts

Material division of metal material warehouse

Require a formal original record of the test results

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
