Specifications
| eyepiece | 10X flat field large field of view eyepiece, field of view diameter < unk > 18mm |
| Objective lens type | Flat field color difference objective |
| Eyepiece binocular pupil distance adjustment range | 55~75mm |
| objective magnification | 4X、10X、40X、100X |
| Objective numerical aperture | 0.10mm、0.25mm、0.65mm、1.25mm |
| Objective working distance | 23.13mm、4.09mm、0.60mm、0.38mm |
| Objective lens coverslip thickness | 0.17mm、0.17mm、0.17mm、0.17mm |

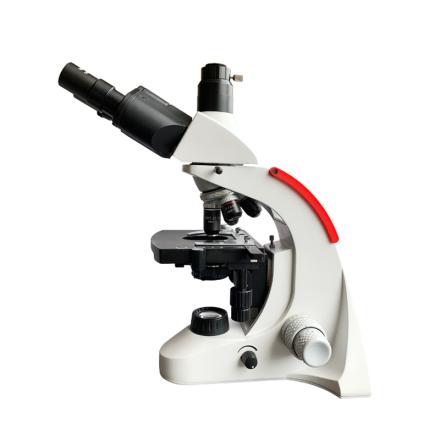

| Eyepiece tube | TL2650B, triple eyepiece 100% spectroscopic 30 ° tilt |
| Binocular pupil distance adjustment range | 55~75mm |
| Eyepiece tube interface | Standard 1X universal interface (optional 0.5X, 0.65X to effectively change the imagery effect) |
| converter | Four-hole inward positioning converter |
| stage | Double-decked mechanical mobile (size: 155x142mm moving range 75mmx50mm) |
| condenser | Abbe condenser, with variable aperture diaphragm and color filter holder, additional matte lens, condenser system can be lifted up and down |
| Transmissive Illumination Light source | European collector, high luminance white 3WLED lighting, adjustable luminance |
| Host Power | AC 100~240V wide Voltage (suitable for LED lighting) |
Packing list
Host X1, eyepiece 10x X1, trinocular observation head X1, 4X10X40X100X (ios) objective X1, tar X1, blue color filter X1, inner hexagonal screw driver X1, 1x C interface X1, power cord X1, dust cover X1, manual X1, warranty card X1, certificate X1, foam and carton Encasement X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/31251/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
