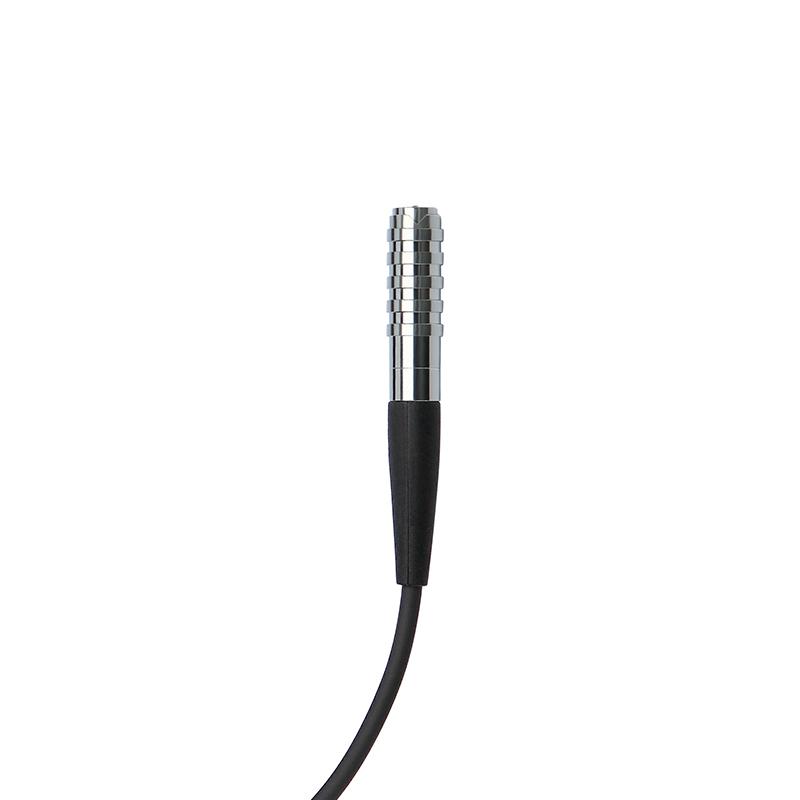

HTechMT CO600N1H Coating Thickness Gauge High temperature probe eddy Current 1600μm
HTechMT Thickness Gauge probe CO600N1H is a 250 ℃ high temperature probe, thickness measurement range 1600 μm, accuracy +/- 1% or 2.5 μm, minimum headroom height 80mm, test radius 5mm, substrate thickness minimum 0.8mm, CO600N1H is an ordinary eddy Current thickness probe.
Model：
CO600N1H
HTechMT
HTechMT CO600N1H Coating Thickness GaugeSPEC
HTechMT CO600N1H Coating Thickness GaugeDetails
HTechMT CO600N1H Coating Thickness GaugePacking list
- SKU
- NB031263
- Measurement principle
- Eddy Current
- Measurement range
- 1600μm
- margin of error
- ±1~3%/2.5μm
- thinnest substrate
- 0.8mm
- Test environment
- Nonmagnetic metal substrate
- probe
- Ordinary probe
- Minimum headroom
- 80mm
- Minimum measurement surface
- R5mm
- Probe contact surface diameter
- 9mm
- Probe contact temperature
- Up to 250 ℃
CO600N1H
Coating Thickness Gauge
The Thickness Gauge probe core is made of super wear-resistant materials, which greatly improves the service life of the probe and ensures the measurement accuracy and repeatability of the instrument. This design reverses the common defects in the market, such as inaccurate measurement due to core wear, or falling off the inlaid rubera.
Probe number
Executive Standards:ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400
Probe selection
| shape | Probe model | A | B | C | Range | Accuracy 1 | Minimum headroom | Minimum test radius | Minimum substrate thickness |
 | CO600F1S | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 80mm | 5mm | 0.8mm |
| CO600F2S | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 80mm | 5mm | 0.8mm | |
| CO600F5S | 9 | 40 | 50 | 0.5mm | ± 1-3% or 2.0μm | 80mm | 5mm | 0.8mm | |
| CO600F1H | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 80mm | 5mm | 0.8mm | |
| CO600F2H | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 80mm | 5mm | 0.8mm | |
| CO600N1S | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 80mm | 5mm | 0.3mm | |
| CO600N2S | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 80mm | 5mm | 0.3mm | |
| CO600N5S | 9 | 40 | 50 | 0.5mm | ± 1-3% or 2.0μm | 80mm | 5mm | 0.3mm | |
 | CO600F1R | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 30mm | 5mm | 0.8mm |
| CO600F2R | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 30mm | 5mm | 0.8mm | |
| CO600N1R | 9 | 40 | 50 | 1.5mm | ± 1-3% or 2.5μm | 30mm | 5mm | 0.3mm | |
| CO600N2R | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 30mm | 5mm | 0.3mm | |
 | CO600F3S | 16.5 | 40 | 50 | 13.0mm | ± 1-3% or 50μm | 80mm | 10mm | 1.0mm |
| CO600F4S | 24 | 60 | 50 | 26.0mm | ± 1-3% or 100μm | 120mm | 30mm | 1.0mm |
*High temperature probe temperature is 250°C
