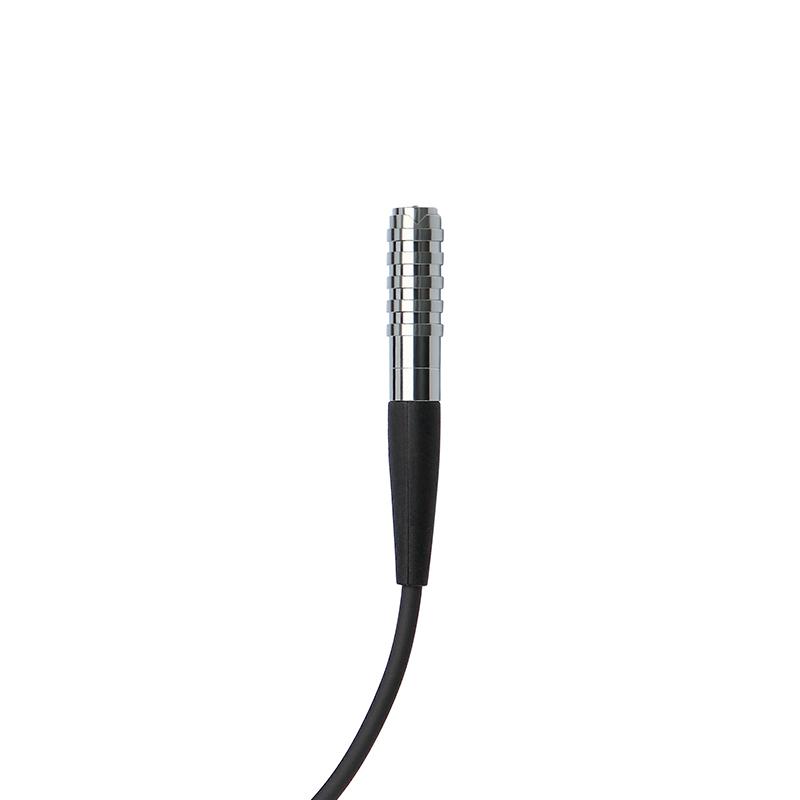

HTechMT CO600N2H Coating Thickness Gauge High temperature probe eddy Current 5000μm
HTechMT Thickness Gauge probe CO600N2H is a high temperature probe that can measure 250 ℃, the thickness measurement range is 5000 μm, the accuracy is +/- 1% or 2.5 μm, the minimum headroom height is 80mm, the test radius is 5mm, and the minimum substrate thickness is 0.8mm. CO600N2H is an ordinary eddy Current thickness measurement probe.
Model：
CO600N2H
HTechMT
HTechMT CO600N2H Coating Thickness GaugeSPEC
HTechMT CO600N2H Coating Thickness GaugeDetails
HTechMT CO600N2H Coating Thickness GaugePacking list
- SKU
- NB031264
- Measurement principle
- Eddy Current
- Measurement range
- 5000μm
- margin of error
- ±1~3%/±20μm
- thinnest substrate
- 0.8mm
- Test environment
- Nonmagnetic metal substrate
- probe
- Ordinary probe
- Minimum headroom
- 80mm
- Minimum measurement surface
- R5mm
- Probe contact surface diameter
- 9mm
- Probe contact temperature
- Up to 250 ℃
CO600N2H
Coating Thickness Gauge
The Thickness Gauge probe core is made of super wear-resistant materials, which greatly improves the service life of the probe and ensures the measurement accuracy and repeatability of the instrument. This design reverses the common defects in the market, such as inaccurate measurement due to core wear, or falling off the inlaid rubera.
Probe number
Executive Standards:ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400
Probe selection
| shape | Probe model | A | B | C | Range | Accuracy 1 | Minimum headroom | Minimum test radius | Minimum substrate thickness |
 | CO600F1S | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 80mm | 5mm | 0.8mm |
| CO600F2S | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 80mm | 5mm | 0.8mm | |
| CO600F5S | 9 | 40 | 50 | 0.5mm | ± 1-3% or 2.0μm | 80mm | 5mm | 0.8mm | |
| CO600F1H | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 80mm | 5mm | 0.8mm | |
| CO600F2H | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 80mm | 5mm | 0.8mm | |
| CO600N1S | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 80mm | 5mm | 0.3mm | |
| CO600N2S | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 80mm | 5mm | 0.3mm | |
| CO600N5S | 9 | 40 | 50 | 0.5mm | ± 1-3% or 2.0μm | 80mm | 5mm | 0.3mm | |
 | CO600F1R | 9 | 40 | 50 | 1.6mm | ± 1-3% or 2.5μm | 30mm | 5mm | 0.8mm |
| CO600F2R | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 30mm | 5mm | 0.8mm | |
| CO600N1R | 9 | 40 | 50 | 1.5mm | ± 1-3% or 2.5μm | 30mm | 5mm | 0.3mm | |
| CO600N2R | 9 | 40 | 50 | 5.0mm | ± 1-3% or 20μm | 30mm | 5mm | 0.3mm | |
 | CO600F3S | 16.5 | 40 | 50 | 13.0mm | ± 1-3% or 50μm | 80mm | 10mm | 1.0mm |
| CO600F4S | 24 | 60 | 50 | 26.0mm | ± 1-3% or 100μm | 120mm | 30mm | 1.0mm |
*High temperature probe temperature is 250°C
FAQ
QCO600N2H Coating thickness gauge can be used to test anti-corrosion coatings?
A
Yes, this is the eddy Current Coating thickness gauge. The range is 5mm.
