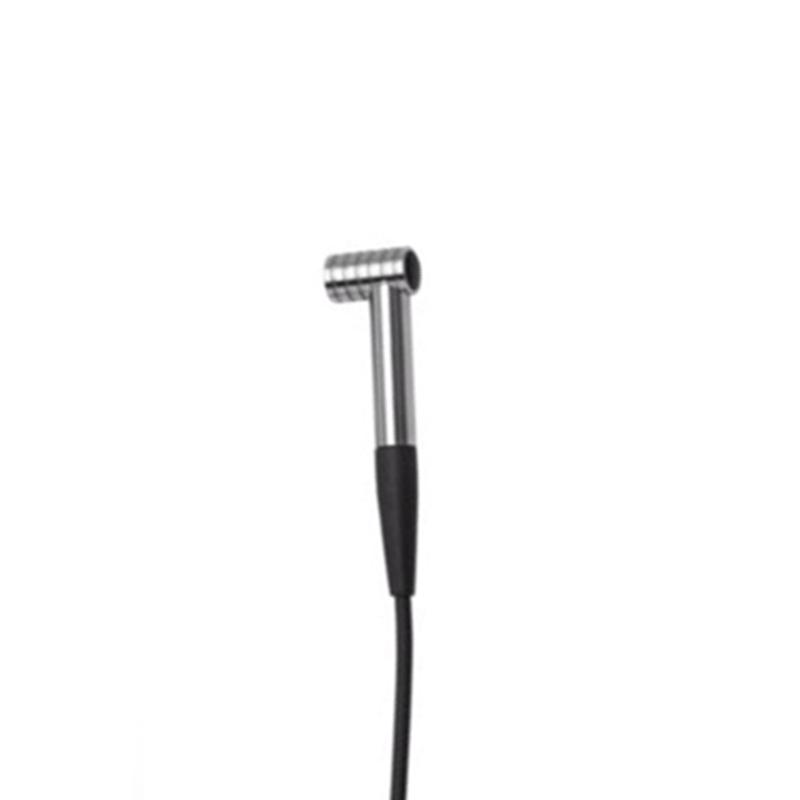

HTechMT CO600N2R Coating Thickness Gauge probe eddy current right angle 5000μm

CO600N2R

Coating Thickness Gauge

The Thickness Gauge probe core is made of super wear-resistant materials, which greatly improves the service life of the probe and ensures the measurement accuracy and repeatability of the instrument. This design reverses the common defects in the market, such as inaccurate measurement due to core wear, or falling off the inlaid rubera.

Probe number

Executive Standards:ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400

Probe selection

shape	Probe model	A	B	C	Range	Accuracy 1	Minimum headroom	Minimum test radius	Minimum substrate thickness
	CO600F1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600F5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.8mm
	CO600F1H	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2H	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600N1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.3mm
	CO600N2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.3mm
	CO600N5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.3mm
	CO600F1R	9	40	50	1.6mm	± 1-3% or 2.5μm	30mm	5mm	0.8mm
	CO600F2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.8mm
	CO600N1R	9	40	50	1.5mm	± 1-3% or 2.5μm	30mm	5mm	0.3mm
	CO600N2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.3mm
	CO600F3S	16.5	40	50	13.0mm	± 1-3% or 50μm	80mm	10mm	1.0mm
	CO600F4S	24	60	50	26.0mm	± 1-3% or 100μm	120mm	30mm	1.0mm

*High temperature probe temperature is 250°C

Packing list：host X1, AA battery X2, test piece set X1, zero adjustment plate X1, certificate X1, manual X1, silicone protective cover X1, instrument bag (cloth bag) X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
