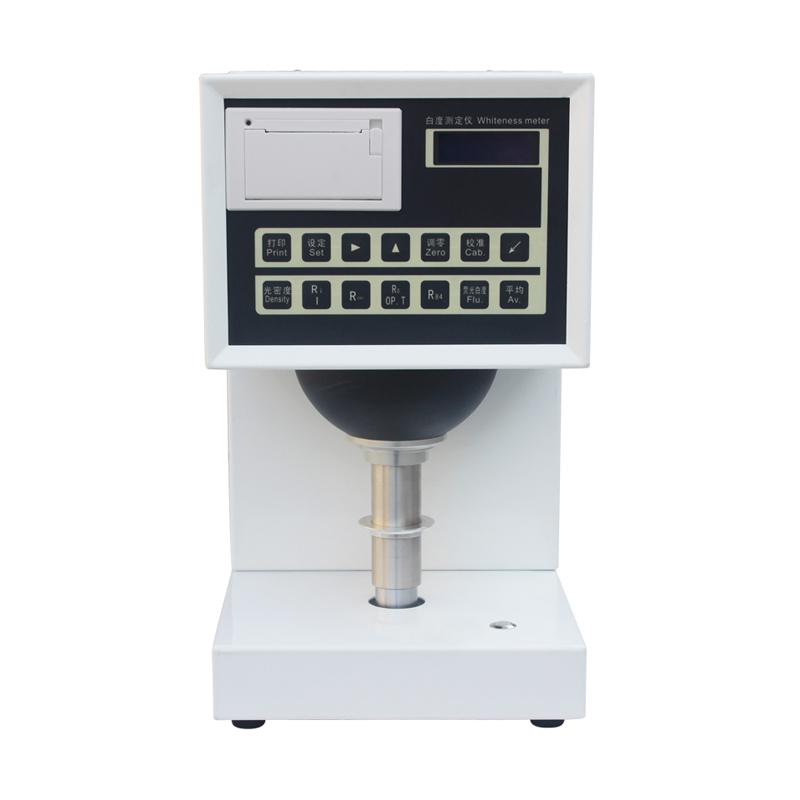

CHINA ASR-5635 Whiteness meter Paper, Textile whiteness Tester

ASR-5635

Whiteness meter

Test plane ≥ Φ30mm, Film thickness ≤ 40mm, diffuse ball diameter 150mm, test hole diameter 19mm, equipped with a light absorber to eliminate the influence of specular reflection of the sample.

Product Description

ASR-5635 Whiteness Meter is used to measure the blue light whiteness of the surface of the object, and the measurement result is displayed on the LCD. Applicable to textiles, printing and dyeing, chemical fiber, plastics, porcelain clay, talcum powder, white cement, paint, paint, ceramics, enamel, paper, pulp and other departments that need to measure the whiteness of products.

5635 meter is a special instrument for measuring the whiteness of objects. Widely used in whiteness measurement of paper and cardboard, textile printing and dyeing, paint coating, chemical building materials, plastic products, cement, calcium carbonate powder, ceramics, enamel, china clay, talcum powder, starch, flour, salt, detergent, cosmetics, etc.

The main function

1. Measure the ISO brightness (ISO Brightness, that is, R457 whiteness). For fluorescent whitening samples, the fluorescent whitening degree produced by the emission of fluorescent substances can also be measured.

2. Determination of lightness stimulus value.

3. Measure Opacity.

4. Measure transparency.

5. Determination of light scattering coefficient and absorption coefficient.

6. Determination of ink absorption value.

7. Measure the reflected optical density.

8. Determination of lead concentration

Executive standard

ISO 2469 "Paper, board and pulp --- Determination of diffuse reflectance factor"

ISO 2470 "Paper and board - Determination of whiteness (diffuse/perpendicular method)

ISO 2471 "Paper and board --- Determination of opacity (paper backing) --- Diffuse reflectance method"

ISO 9416 "Determination of paper light scattering and light absorption coefficient (Kubelka-Munk)"

GB/T 7973 "Determination of Diffuse Reflectance Factor of Paper, Cardboard and Pulp (Diffuse/Perpendicular Method)"

GB/T 7974 "Determination of Brightness (Whiteness) of Paper, Board and Pulp (Diffuse/Perpendicular Method)"

GB/T 2679 "Determination of Paper Transparency"

GB/T 1543 "Paper and board - Determination of opacity (paper backing) (diffuse reflectance method)"

GB/T 10339 "Determination of Light Scattering and Light Absorption Coefficients of Paper, Board and Pulp"

GB/T 12911 "Determination of Ink Absorption of Paper and Board"

GB/T 2913 "Test method for whiteness of plastics"

GB/T 13025.2 "General test method for salt industry, determination of whiteness"

GB/T 5950 "Measurement method for whiteness of building materials and non-metallic mineral products"

GB/T 8424.2 "Instrumental evaluation method for relative whiteness of textile color fastness test"

GB/T 9338 "Measurement method for relative whiteness of fluorescent whitening agent"

GB/T 9984.5 "Determination of Whiteness by Industrial Sodium Tripolyphosphate Test Method"

GB/T 13173.14 "Determination of Whiteness of Powdered Detergents by Test Methods for Surfactant Detergents"

GB/T 13835.7 "Test method for whiteness of rabbit hair fiber"

GB/T 22427.6 "Determination of Starch Whiteness"

QB/T 1503 "Determination of Whiteness of Ceramics for Daily Use"

FZ-T50013 "Cellulose Chemical Fiber Whiteness Test Method Blue Light Diffuse Reflection Factor Method"

Main performance parameters

1. The appearance of the instrument is novel and compact, and the professional circuit design effectively guarantees the accuracy and stability of the measurement data

2. The instrument simulates the illumination of D65 lighting body.

3. The instrument adopts d/o illumination to observe geometric conditions. The diameter of the diffusion ball is 150mm, and the diameter of the test hole is 19mm. It is equipped with a light absorber to eliminate the influence of the specular reflection of the sample.

4. The instrument has power-off protection, and the calibration data will not be lost after power-off

Packing list：Host X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
