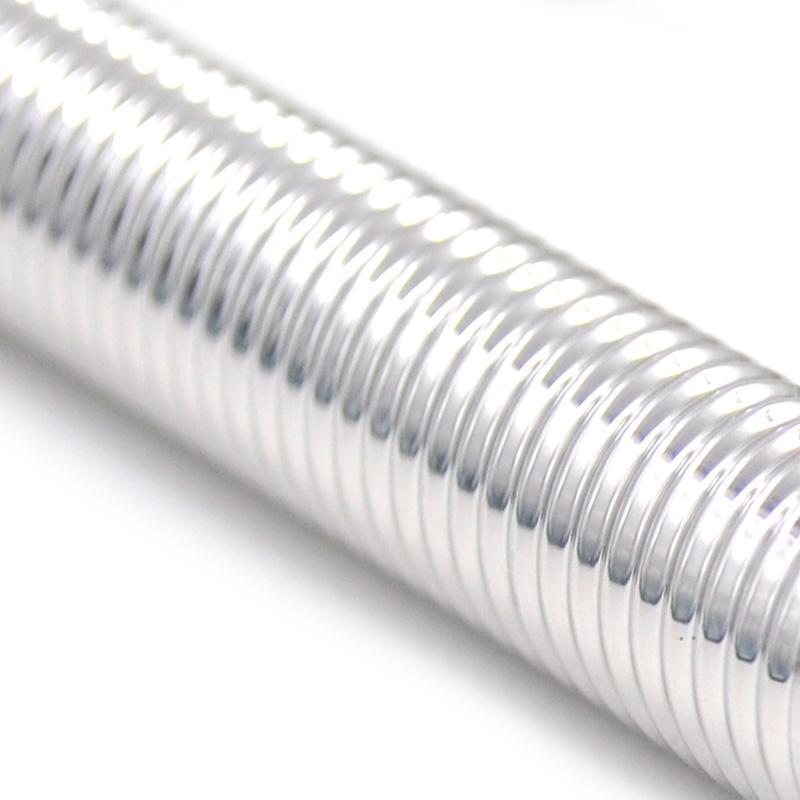

CCT CCT 22um φ 10mm L500mm production wire-wound drawdown Bar Total length 50cm surface Eletroplating

CCT-22 L500mm-10mm production wire-wound drawdown Bar wet film thickness 22μm, Total length 50cm, effective application width 500mm, main rod diameter 10mm, surface process chrome plating, production process extrusion process, material stainless steel.
Contact
Details SPEC

CCT 22um Φ10mm L500mm Custom coating rodSPEC

CCT 22um Φ10mm L500mm Custom coating rodDetails

CCT 22um Φ10mm L500mm Custom coating rodPacking list

SKU
NB031327
WFT
22μm
Total length
500mm
Effective application width
500mm
Main rod diameter
10mm
Surface process
chrome plating
Production process
Extrusion process
material
stainless steel
22um Φ10mm L500mm
Custom coating rod
CCT CCT 22um φ 10mm L500mm production wire-wound drawdown Bar Total length 50cm surface Eletroplating Picture

Introduction

CCT-22 L500mm Φ10mm custom wire rod is a production type wire rod, which is mainly used for quantitative control of fluid in the production process, and for uneven pre-coating, this defect can be solved through this production type metering rod. The production profile has a fixed groove that wipes out excess fluid, resulting in a flat coating.

CCT-22 L500mm Φ10mmThe customized wire rod is an extruded process metering rod with a coating film thickness of 22 microns, a Total length of 50cm, and a diameter of 10mm.

Production of metering rod specifications

The specification length can be customized, please consult for detailsNorth and South Tide customer service

Cicietide 22um Φ10mm L500mm Custom Coating Rod Detail Figure 1

How to use:

Cicietide 22um Φ10mm L500mm Custom Coating Rod Detail Figure 2

When applying liquid to the surface of the substrate, use a metering rod to adjust (scrape off) the amount of liquid.

Application

Coating rods for extrusion production are widely used in the following industries:

Membrane:Liquid crystal film, X-ray film, packaging film, etc

Glass:Automotive glass, liquid crystal glass, architectural glass, etc

Paper:Newspapers, light paper, wallpapers, special papers, etc

Packing Material:Cartons, tapes, wrapping paper, etc

Tape:videotapes, etc

Magnetic card:Tickets, recharge cards, etc
