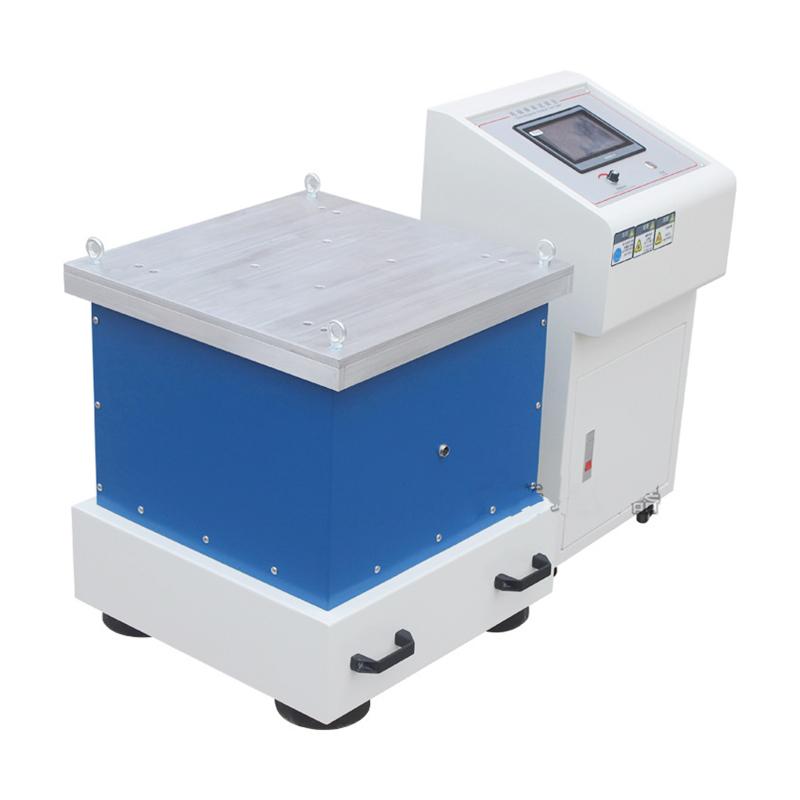

CHINA ASR-C-Z75 Electrodynamic Shaker (Touch Screen)

CHINA ASR-C-Z75 Electrodynamic Shaker adopts LCD touch screen, test direction up and down, test Platform size 750x750mm, maximum test weight 0-60kg, Frequency adjustment range 1-600HZ, ASR-C-Z75 has time timing, countdown display function.

Model：

ASR-C-Z75

Certificate

AISRY

Manufacturer authorization

Contact

Details SPEC CAT

AISRY ASR-C-Z75 Electrodynamic Shaker (Touch Screen)SPEC

AISRY ASR-C-Z75 Electrodynamic Shaker (Touch Screen)Details

AISRY ASR-C-Z75 Electrodynamic Shaker (Touch Screen)Packing list

SKU: NB031335

Test direction: up and down

Maximum test Weight: 0-60kg

Platform size: 750*750mm

Control mode: PLC touch screen type (Linear dispersion diagram is displayed directly on the screen)

Frequency adjustment range: 1~600HZ

Precision: Frequency can be displayed to 0.1HZ, precision 0.1HZ

Amplitude: 0~5Mm (random type)

vibration waveform: sine wave

Maximum Acceleration: 10G

function: Sweep frequency, fixed frequency, time control

Frequency doubling function (0.01Hz): 8 segments multiply increase ① low to high frequency ② high to low frequency ③ low to high and then to low frequency/recyclable

Logarithmic function (0.01Hz): ① down to the upper frequency ② up to the lower frequency ③ down to the upper frequency and then to the lower frequency --3 modes logarithmic/recyclable

Power supply Voltage: AC220V 50HZ

ASR-C-Z75

Electrodynamic Shaker (Touch Screen)

Introduction

Electromagnetic shakers are widely used in national defense, aviation, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual Operating Conditions assessment and structural strength test, and the product has a wide range of applications, wide application area, effective and reliable test effect. Sine wave, frequency modulation, time control.

Features

It adopts professional and simple operation technology and fixed frequency Operating Mode
Built-in amplitude prediction program and amplitude modulation are easy
It has the functions of time timing and countdown display
Four-point synchronous excitation, uniform vibration of the table
The control parameters are displayed synchronously in real time, without manual intervention
Stepless amplitude adjustment, fixed frequency and sweep operation functions to adapt to a variety of test requirements in different industries
The anti-interference circuit is added to solve the interference of the control circuit due to the strong electromagnetic field
The base of the machine adopts a vibration isolation device, which is easy to install and runs smoothly, and there is no need to install anchor fixing screws

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.

Standard
