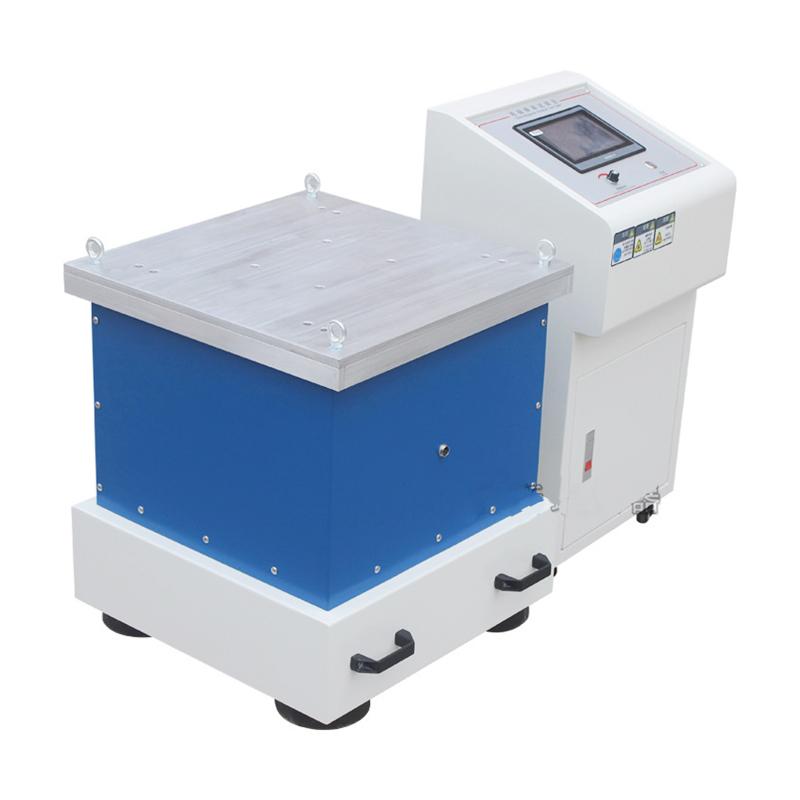

CHINA ASR-C-ZX50 Electrodynamic Shaker (Touch Screen)

CHINA ASR-C-ZX50 Electrodynamic Shaker is a vertical + horizontal integrated machine electromagnetic Shaker Table, Control mode PLC touch screen type, with four-point synchronous vibration, uniform table vibration.

Model：

ASR-C-ZX50

Certificate

AISRY

Manufacturer authorization

Contact

Details SPEC CAT

AISRY ASR-C-ZX50 Electrodynamic Shaker (Touch Screen)SPEC

AISRY ASR-C-ZX50 Electrodynamic Shaker (Touch Screen)Details

AISRY ASR-C-ZX50 Electrodynamic Shaker (Touch Screen)Packing list

SKU: NB031336

Test direction: up and down + left and right + front and rear

Maximum test Weight: 0-60kg

Platform size: 500*500mm

Control mode: PLC touch screen type (Linear dispersion diagram is displayed directly on the screen)

Frequency adjustment range: 1~600HZ

Precision: Frequency can be displayed to 0.1HZ, precision 0.1HZ

Amplitude: 0~5Mm (random type)

vibration waveform: sine wave

Maximum Acceleration: 10G

function: Sweep frequency, fixed frequency, time control

Frequency doubling function (0.01Hz): 8 segments multiply increase ① low to high frequency ② high to low frequency ③ low to high and then to low frequency/recyclable

Logarithmic function (0.01Hz): ① down to the upper frequency ② up to the lower frequency ③ down to the upper frequency and then to the lower frequency --3 modes logarithmic/recyclable

Power supply Voltage: AC220V 50HZ

ASR-C-ZX50

Electrodynamic Shaker (Touch Screen)

Introduction

Electromagnetic shakers are widely used in national defense, aviation, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual Operating Conditions assessment and structural strength test, and the product has a wide range of applications, wide application area, effective and reliable test effect. Sine wave, frequency modulation, sweep, programmable, frequency doubling, logarithmic, time control.

Features

1. Adopt professional and simple operation technology, fixed frequency, sweep frequency at any time convenient switching

2. It has the function of time timing and countdown display

3. Touch controller, simple and convenient operation, solves the shortcomings of inconvenient digital display operation

4. Real-time synchronous display of control parameters, no need for manual intervention.

5. The base of the machine adopts a vibration isolation device, which is easy to install and runs smoothly, and there is no need to install anchor fixing screws

6. Built-in amplitude prediction program and amplitude modulation are easy

7. Four-point synchronous excitation, uniform vibration of the table

8. Stepless amplitude adjustment, fixed frequency and sweep operation functions to adapt to a variety of test requirements in different industries

9. Add anti-interference circuit to solve the interference of strong electromagnetic field to the control circuit

10. Curve display function, you can check the frequency waveform change at any time
