AISRY ASR-4321 Wire and cable horizontal and vertical combustion testing machine Specifications

Search

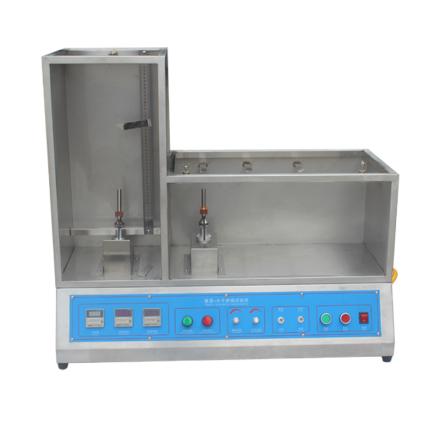

CHINA ASR-4321 Wire and cable horizontal vertical combustion Tester

Brand：AISRY

Model：ASR-4321

Name：Wire and cable horizontal and vertical combustion testing machine

DetailsContact
Specifications
Vertical combustion box Made according to UL1581 standard size, the internal size is 305 * 355 * 610mm.
Horizontal combustion box Made according to UL1581 standard size, the internal size is 305 * 355 * 610mm.
Vertical spark nozzle The nozzle angle is 20 degrees with a gas control valve.
Horizontal spark nozzle The nozzle angle is 90 degrees with a gas control valve.
mode Manual/automatic mode, vertical or horizontal nozzle selection mode.
combustion gas Gas. Methane (customer provided)
Miscellaneous When the preset data is reached, the machine automatically stops the test.
Packing list
Host X1, manual X1, warranty card X1, certificate X1
After-sales instructions

Warranty days: 365 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/31342/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
