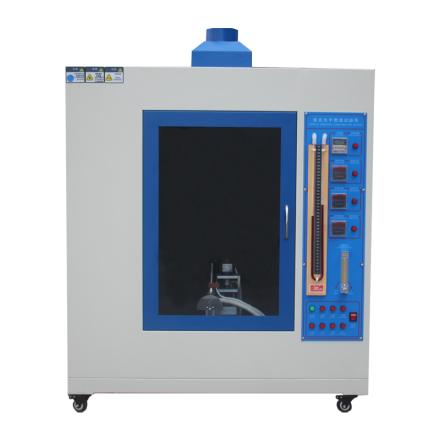

AISRY ASR-4326 Plastic horizontal and vertical combustion testing machine Specifications
Search
Brand：AISRY
Model：ASR-4326
Name：Plastic horizontal and vertical combustion testing machine
Specifications
| test space | ≥ 0.5 cubic meters with Glass observation door |
| Flame time | 0~99 minutes and 99 seconds can be set |
| afterflame time | 0~99 minutes and 99 seconds can be set |
| afterflame time | 0~99 minutes and 99 seconds can be set |
| Combustion angle | 20 °, 45 °, 90 ° (ie 0 °) adjustable |
| Combustion dimension parameters | The inner diameter of the nozzle is Ø 9.5mm, the effective length of the nozzle is 100mm, and there are air conditioning holes. |
| flame height | Adjustable from 20mm to 175mm according to standard requirements |
| Sample method | Motor drive front and rear left and right positive splines |
| Power | AC 220V/50H |
Packing list
Host X1, manual X1, warranty card X1, certificate X1
After-sales instructions
Warranty days: 365 days
