CHINA ASR-1023 Microcomputer Double Column Tensile Tester

CHINA microcomputer double column tensile Tester ASR-1023 effective force range of 1~ 100% F. S, test speed range of 0~500mm/min, ASR-1023 can test various materials and finished products, work in progress of physical performance.
Model：
Certificate
Contact
Details SPEC CAT

AISRY ASR-1023 Microcomputer double column Tensile Testing MachineSPEC

AISRY ASR-1023 Microcomputer double column Tensile Testing MachineDetails

AISRY ASR-1023 Microcomputer double column Tensile Testing MachinePacking list

SKU
NB031387
Force range
1~100%F.S
Deformation indication Accuracy
±0.5%
Test speed range
0~500mm/min
effective travel
850mm
Effective test space
Left and right 380mm, front and rear < unk >
Force unit
g、kg、N、LB、KN
Downtime mode
Upper and lower limit safety settings, emergency stop button, program power and elongation settings
How to get points
Manual point taking and preset point taking (20 points) during the test can be used for tensile and pressure holding tests
Dimensions
850*510*1400mm(W*D*H)
Machine Weight
About 120kg
ASR-1023
Microcomputer double column Tensile Testing Machine

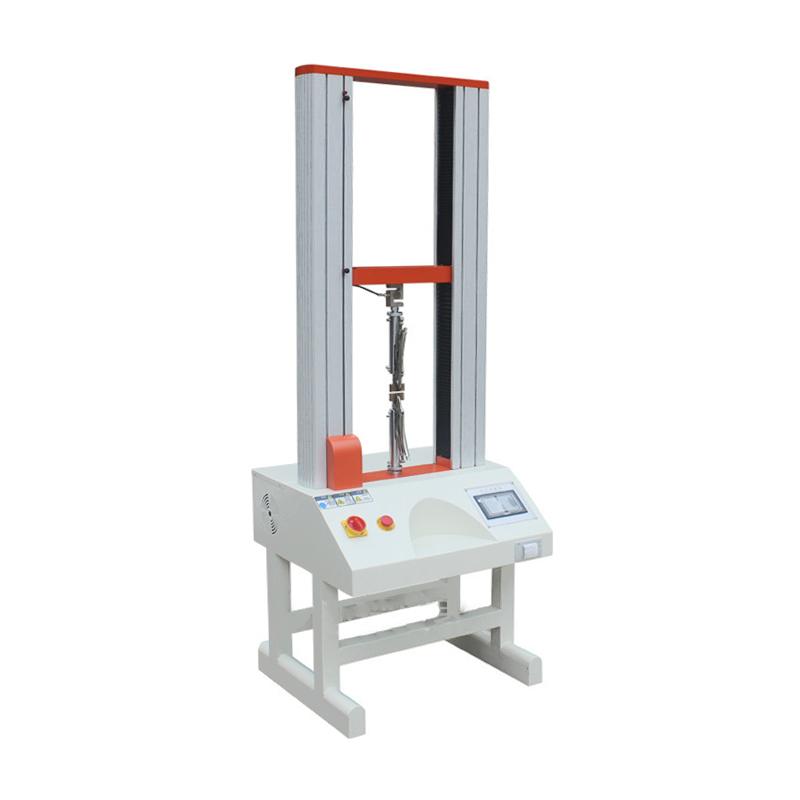

CHINA ASR-1023 Microcomputer Double Column Tensile Tester Picture



Applications

It is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber and plastics, paper products and color printing packaging, adhesive tapes, luggage and handbags, textile fibers, food, pharmaceuticals and other industries. It can test the physical properties of various materials, finished products, and semi-finished products. You can choose various fixtures to do tensile, compressive, holding, holding, bending, tearing, peeling, adhesion, and shear tests.

features

1. The control system adopts an all-digital AC motor with frequency control to ensure high efficiency of the transmission system, stable transmission, low noise, and speed accuracy can be controlled within ±0.5%;

2. The structure of the machine adopts aluminum extruded sealing plate treated with high-grade baking paint, built-in high-precision, low resistance, no gap double roller screw and guide column, which improves the load efficiency and structural rigidity;

3. The product has stable and reliable performance, high measurement accuracy, powerful test software, and easy-to-understand operation.

safety devices

1. Travel protection: set up and down limit protection switches to prevent exceeding the preset travel;

2. Force protection: the system can set the maximum force value to prevent exceeding the sensor calibration value;

3. Emergency stop device: There is an emergency stop switch on the right side of the base, which can handle emergencies.

Standard accessories

1. A one-year warranty and a Chinese operating manual

2. A set of standard tensile fixtures will be presented randomly (other fixtures can be purchased)

3. One high-precision load sensor

4. One micro-printer (can print test report)


FAQ
QMainly test polymer materials, tensile rate, double column, and then the force range can be measured if it is small and large, and it needs 50kn.
A Yes, you need a 50 kn sensor with an accuracy of 0.5.
QHow is the indication accuracy of this double column Tensile machine?
A Hello, ± 0.5%.
QIs the ASR-1023 tensile testing machine equipped with a thermal printer as standard?
A Hello, yes.
