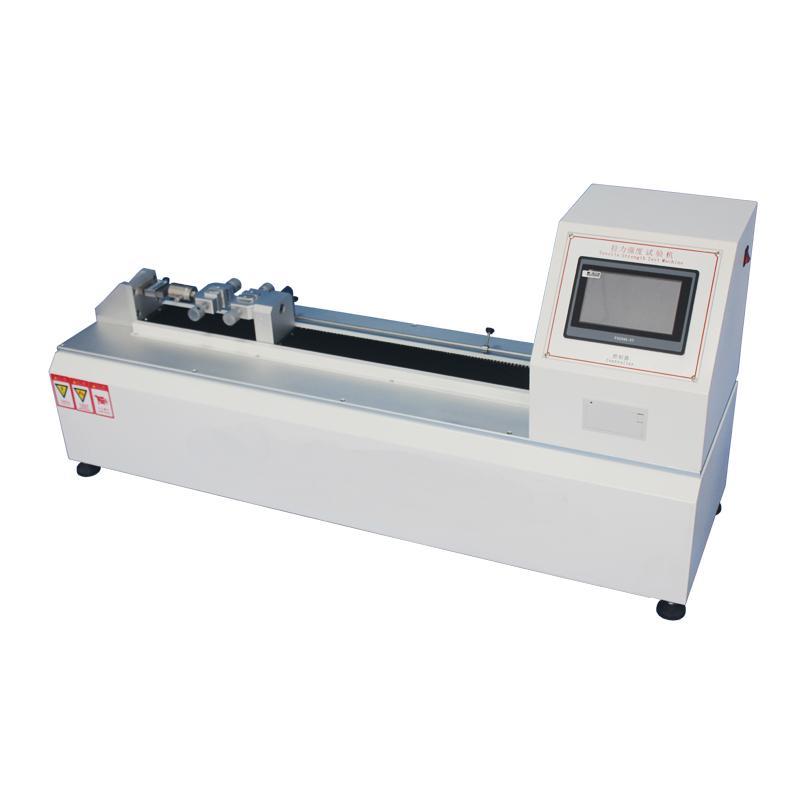

CHINA ASR-1002 Microcomputer horizontal Tensile Strength Tester

ASR-1002(50kg)

Microcomputer horizontal Tensile Strength Tester

Introduction

Microcomputer-controlled horizontal Tensile Testing Machine adopts hydraulic force computer to automatically collect data, print results, easy to operate, high test accuracy, and stable force. Used for stretching, tensile shearing, tearing, etc. of metal and non-metal Mechanical performance test can meet various test methods and standards such as ISO and GB. This equipment is widely used in the wire and cable industry and quality inspection .

Features

1. Very good appearance design

2. Digital liquid crystal display of force value, which can distinguish tension or pressure, and the liquid crystal interface is clear and easy to read;

3. Three measurement units: N, Kgf, Lbf are optional and can be automatically interchanged;

4. LCD liquid crystal display with backlight, can be used in the environment with insufficient light;

5. With a single measurement, the peak values in the two directions of tension and compression can be read, and it can be automatically and manually reset;

6. With travel limit and overload stop function.

7. The desktop single-column structure is beautiful and exquisite, and the operation is easy and natural while sitting.

8. The machine includes a thermal printer, which can automatically output test results.

9. It can store the results of 10 test reference points, automatically calculate the average value, automatically capture large values, and the force value when it breaks.

10. Display mode: PK-2000 dark blue LCD with Chinese display, film touch button, with the following functions:

①.Single test, manual 10-point statistics, and automatically calculate the average value, breaking value;

②. Multi-unit automatic switching such as kgf, Lbf, N;

③. Free point selection function;

④. With multi-function correction function;

⑤. Automatic printing function;

⑥. Using 24-bit AD acquisition, resolution 1/200000;

⑦. The number of decimal places can be arbitrarily selected from 0 to 4;

⑧. Power-on password protection function, which can effectively prevent non-operating personnel from starting the machine;

⑨. The break point ratio is from 0 to 99%, and the user can set the appropriate break stop time according to different materials.

⑩. The overload protection function can be set to effectively prevent the machine from overloading;

Setting range of breakpoint ratio: 0~99% It can be conveniently set according to the test needs of different test pieces, so as to realize the stop state at different positions.

Safety devices: overload ﹑ emergency stop device, up and down travel limit device.

Packing list：host X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
