CHINA ASR-XJJ-11B Digital Display Cantilever Impact Tester

Impact speed of 3.5m/s, pendulum pre-lift angle of 150 °, semi-automatic control, blade angle of 75 °, the distance from the center of the pendulum axis to the center of the sample 327mm.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

AISRY ASR-XJJ-11B Digital Impact TesterSPEC

AISRY ASR-XJJ-11B Digital Impact TesterDetails

AISRY ASR-XJJ-11B Digital Impact TesterPacking list

SKU
NB031395
Impact velocity
3.5m/s
The distance from the center of the pendulum axis to the center of the specimen
327mm
blade angle
75°
Blade fillet radius
0.8mm
blade rake angle
5°
blade back angle
10°
Specimen type and size (length x width x thickness) mm ³
ISO180-2000 or GB/T 1843-2008: Type 1 specimen: 80 × 10 × 4; Type 2 specimen: 63.5 × 12.7 × 6.4; Type 3 specimen: 63.5 × 12.7 × 3.2
Impact energy
Cantilever beam 11J, 5.5J or Maximum Impact Energy as specified by the user
Pendulum elevation angle
150°
Power
AC 220V 50Hz
Dimensions
360*240*680mm
Net Weight
Approx. 80kg
ASR-XJJ-11B
Digital Impact Tester
Impact speed of 3.5m/s, pendulum pre-lift angle of 150 °, semi-automatic control, blade angle of 75 °, the distance from the center of the pendulum axis to the center of the sample 327mm.

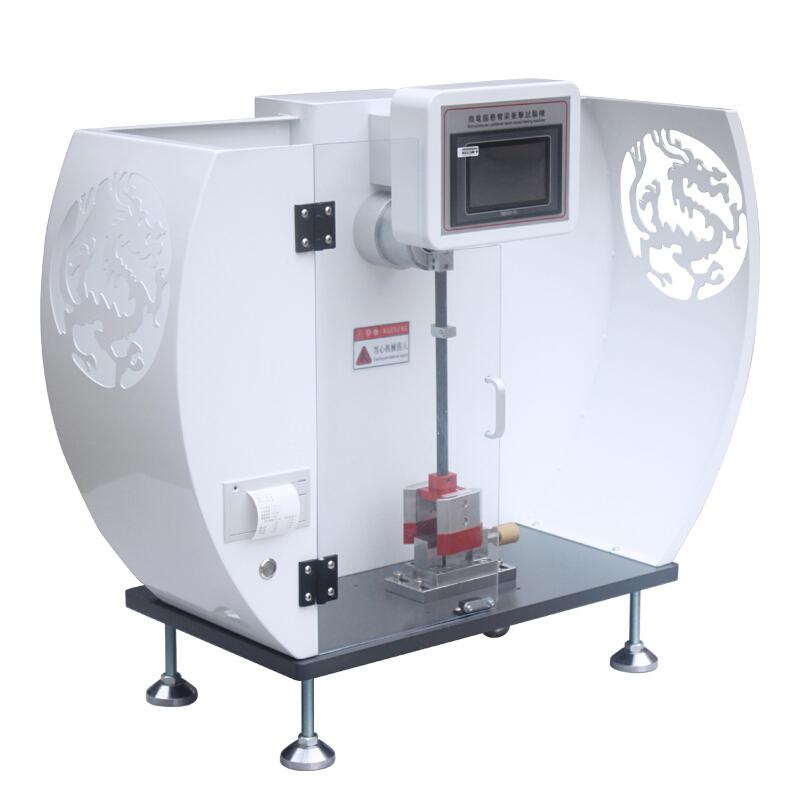

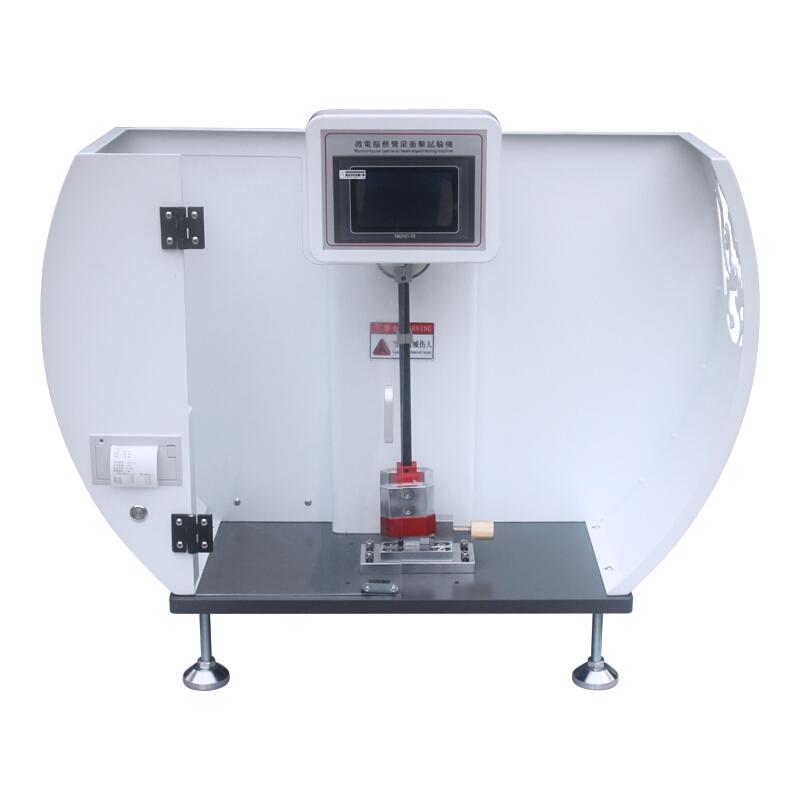

CHINA ASR-XJJ-11B Digital Display Cantilever Impact Tester Picture

 Introduction

Liquid crystal digital display cantilever beam impact testing machine is an instrument for testing the impact resistance of non-metallic materials such as hard plastics, nylon, hard rubber, and electrical insulation materials under dynamic loads. It is required by non-metallic material manufacturers and quality inspection departments. Testing instruments are also indispensable testing instruments for scientific research units to conduct research on new materials.

XBL series digital cantilever beam impact testing machine can print out the test results and other functions.

1. This machine adopts semi-automatic control, which is easy to operate and high in work efficiency.

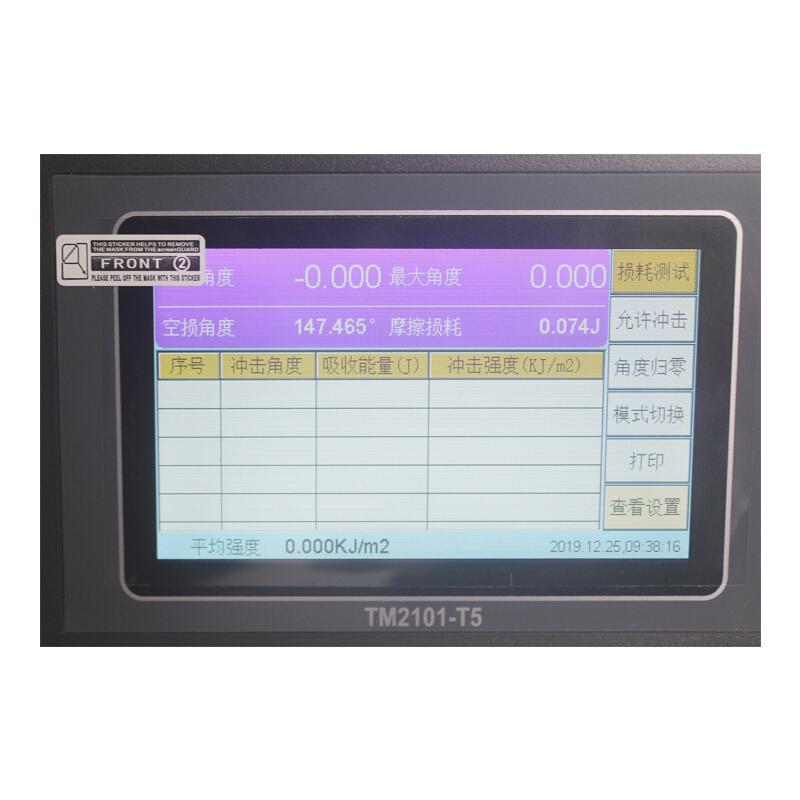

2. The special LCD equipped with this machine can display instant information.

3. Printable output.

Standards

I SO180-2000 "Plastics - Determination of Izod Impact Strength of Hard Materials"

GB/T1843—2008 "Rigid Plastic Izod Impact Test Method"

JB/T8761—1998 "Plastic Izod Impact Testing Machine"

ASTM D256-2010 "Test method for determining the impact strength of plastic IZOD pendulum"
