China

LINSHANG LS170 Color Difference Meter Surface Gloss

SE
APP intelligent Colorimeter, with color difference comparison, Color acquisition, QC detection and other functions, suitable for general paint film or printing surface Gloss detection, measurement diameter is 8mm, full Light spectrum LED Light source Light source.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

LinShang LS170 Color difference meterSPEC

LinShang LS170 Color difference meterDetails

LinShang LS170 Color difference meterPacking list

SKU
NB031397
Lighting method
45°/0°
Lighting source
Light spectrum LED Light source
Measurement caliber
Φ8mm
Measurement conditions
Light source D65, field of view 10 °
Measurement time
About 1s
Color Space
CIE Lab、Luv、LCh、Yxy、CMYK、RGB、Hex
Color difference formula
ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00
Repeatability
Standard deviation Delta E * ab, within 0.03
Dimensions
31.7*31.7*70.4mm
Weight
About 51g
Battery life
Rechargeable lithium battery 3.7V@700mAh, single charge can be continuously measured 10000 times
Display
without
Charging port
USB(Type-C)
Interface
Bluetooth
Operating environment
0~45 ℃, 0~85% RH (no condensation)
Storage environment
-25~ 55 ℃, 0~85% RH (no condensation)
LS170
Color difference meter
APP intelligent Colorimeter, with color difference comparison, Color acquisition, QC detection and other functions, suitable for general paint film or printing surface Gloss detection, measurement diameter is 8mm, full Light spectrum LED Light source Light source.
LINSHANG LS170 Color Difference Meter Surface Gloss Picture

Introduction

Linshang LS170 color difference Detector is a delicate and compact instrument for color collection and color contrast comparison, this color difference Detector is widely used in paint, test strip printing, decorations, leather cotton, textile printing, plastics and other industries. This color aberration Detector has Bluetooth function, works with its matching APP, and is equipped with multiple color libraries that are commonly used. After connecting to the mobile APP through Bluetooth, the color is quickly taken, and the color difference is measured by the data method. After quickly matching the Color Chart number that is close to it, you can share the color through WeChat, QQ, email and other tools.

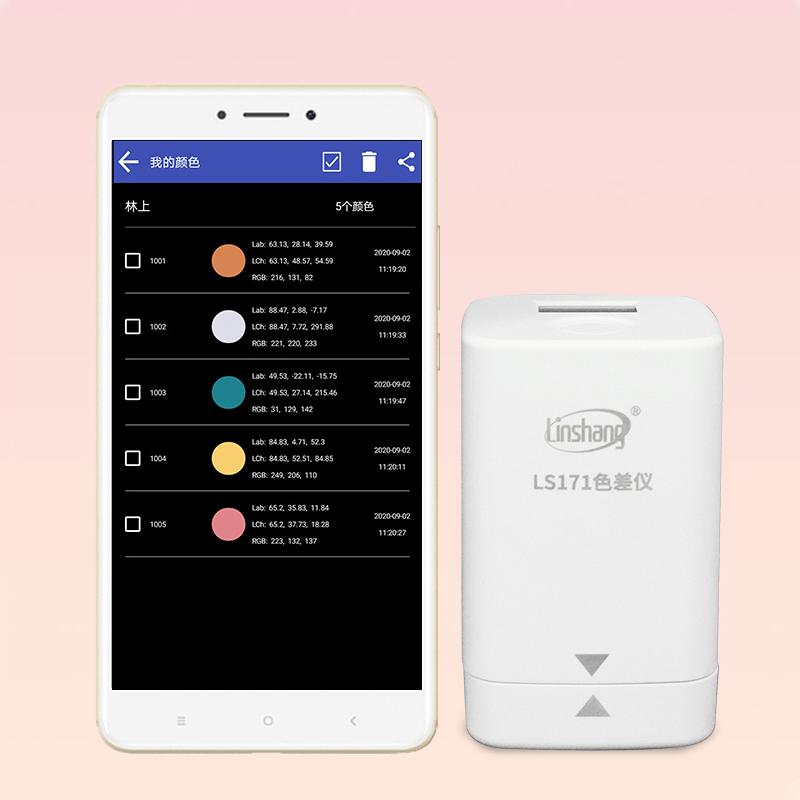

Details of the LS170 Colorimeter in the forest Figure 1

Details of the LS170 Colorimeter in the forest Figure 2

Features

1. The instrument has the function of QC quality inspection, and the threshold (tolerance value) of the qualified judgment can be manually set to intelligently determine whether the color difference is qualified.

Details of the LS170 Colorimeter in the forest Figure 3

2.APP has multiple standard electronic Color Charts, and the instrument measurement speed is fast, and it can quickly match the color number that is close to it. The accuracy rate is up to 90%, and there is no need for heavy Color Charts.

3. It can store massive color data and collect the desired color anytime and anywhere.

4. The instrument can import color data, and the data can be shared through WeChat, QQ, email and other software.

5. 7 color spaces, 6 color difference formulas to choose from, to meet the testing needs of different industries.

Details of the LS170 Colorimeter in the forest Figure 4

6. The volume is as small as lipstick, and it is easy to carry.

Details of the LS170 Colorimeter on the forest Figure 5

7. Support Chinese and English bilingual, after the mobile phone system is set to a foreign language, the APP can be automatically converted to English.

8. The product has a built-in rechargeable lithium battery, ultra-low power consumption, and can be continuously measured 10,000 times when fully charged.

9. There is no need for cumbersome black and white board calibration, and the built-in compensation optical path makes the measurement data stable, and there is no need for frequent calibration.

10. The color of the standard sample can be added, and a personal Color Chart library can be established to meet the comparison of the color difference of the product when there is no physical sample.

11. The standard deviation of the instrument is within △E*ab, within 0.03, and the repeatability is good.

12. The product body is stable and the measurement data is stable.

Meets standards

(1) GBT 3978-2008 Standard Illuminator and Geometric Conditions

(2) GBT 3979-2008 Measurement method of object color

(3) GBT 7921-2008 Uniform color space and color aberration formula

(4) GBT 11186.1-1989 Measurement method of coating film color Part I: Principle

(5) GBT 11186.2-1989 Measurement method of coating film color Part II: Color measurement

(6) GBT 11186.3-1989 Measurement method of coating film color Part 3 Calculation of color difference

(7) JJG 595-2002 Verification Regulations for Color Measurement and Colorimeter

FAQ
QCan LINSHANG LS170 color difference meter meet the standard of GB/T1766?
A Applicable, you can consult the customer service of the mall for details about the GB/T1766 standard.
QDoes the LS170 color reader come with a standard electronic color chip?
A Hello, yes.

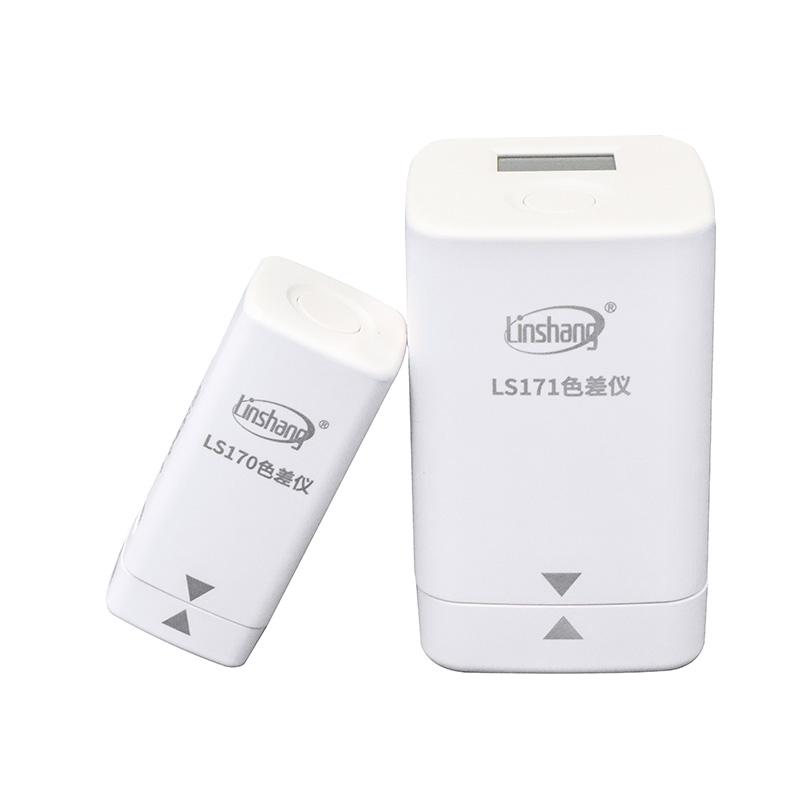

QWhat is the difference between LS170 and LS171 Color Difference Meters?
A Hello, the Optical inspection structure and display screen of LS170 and LS171 are different. LS170 adopts 45/0 ° without display screen, while LS171 adopts D/8 structure and has a 0.96-inch OLED display.
Standard
