LINSHANG LS171 Colorimeter Portable Colorimeter Spinning & weaving Film, Ceramic

SE
LINSHANG LS171 Colorimeter is a portable Colorimeter that supports QC detection function and built-in multiple international standard electronic Formula Guides. LS171 can establish a personal Formula Guide library and support data import and export and data sharing. Suitable for Spinning & weaving, paint film, ceramics and other environment measurement.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

LinShang LS171 Color difference meterSPEC

LinShang LS171 Color difference meterDetails

LinShang LS171 Color difference meterPacking list

SKU
NB031398
Lighting method
8°/d
Lighting source
Light spectrum LED Light source
Integrating sphere size
36mm
Measurement caliber
Φ8mm
Measurement conditions
Light source D65, field of view 10 °
Measurement time
About 1s
Color Space
CIE Lab、Luv、LCh、Yxy、CMYK、s-RGB、Hex
Color difference formula
ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00
Repeatability
Standard deviation Delta E * ab, within 0.03
Battery life
Rechargeable lithium battery 3.7V@700mAh, continuous measurement 10,000 times at full power
Dimensions
57*57*89.4mm
Weight
Approx. 126g
Display
0.96 inch OLED
Charging port
USB(Type-C)
Interface
Bluetooth
Operating environment
0~45 ℃, 0~85% RH (no condensation)
Storage environment
-25~ 55 ℃, 0~85% RH (no condensation)
LS171
Color difference meter
LINSHANG LS171 Colorimeter Portable Colorimeter Spinning & weaving Film, Ceramic Picture

Introduction

The LS171 portable Colorimeter is a new tool for color measurement and chromatic contrast comparison. The instrument conforms to the international CIE related standards and GB standards. It adopts a D/8 optical structure and is equipped with a high-precision sensor that complies with CIE. The instrument has good consistency and repeatability, and can be used for accurate color measurement and quality control with mobile APP, and is widely used in plastics, paints, printing, ceramics, textiles, automobiles and other industries. The instrument can restore the color of the collected samples and compare the color difference, which is a high-precision portable Colorimeter with outstanding comprehensive functions and high cost performance.

Application

As a portable Colorimeter, LS171 is widely used in car paint spraying, test strip printing, leather fabrics, plastic metals, textiles and garments, hardware, furniture industry, plastics, rubber and other fields.

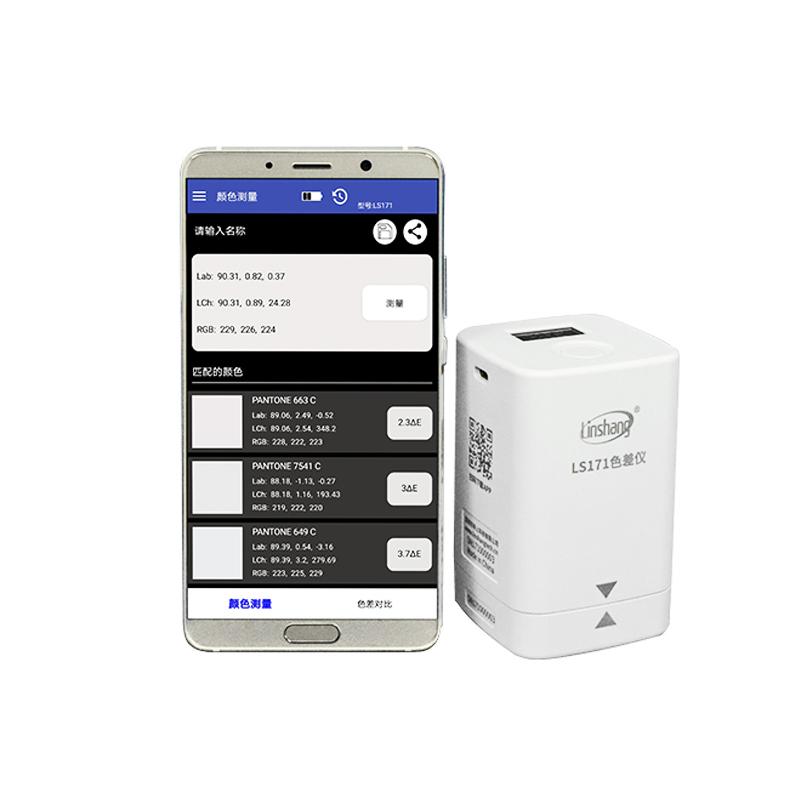

Details of the LS171 Colorimeter in the forest Figure 1

Details of the LS171 Colorimeter in the forest Figure 2

Details of the LS171 Colorimeter on the forest show 3

Features

1. Chromatic aberration comparison has QC detection function, and after customizing the chromatic aberration threshold (tolerance value), you can judge whether the chromatic aberration is qualified.

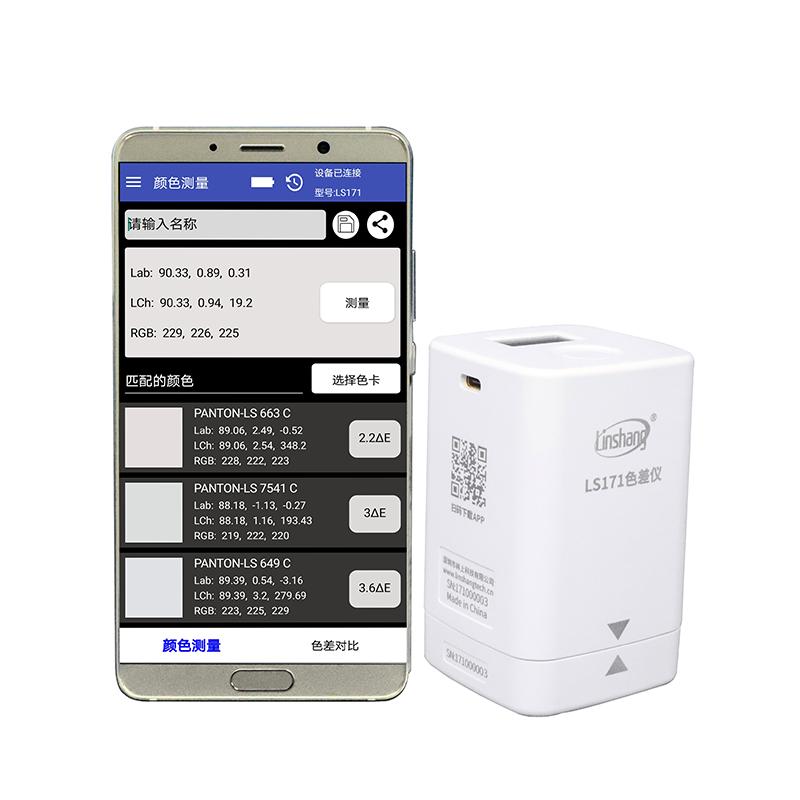

Details of the LS171 Colorimeter in the forest are shown in Figure 4

2. You can collect your favorite colors anytime and anywhere, and intelligently match multiple standard Color Charts, and the matching accuracy is greater than 90%. The mobile APP interface can directly restore the collected colors.

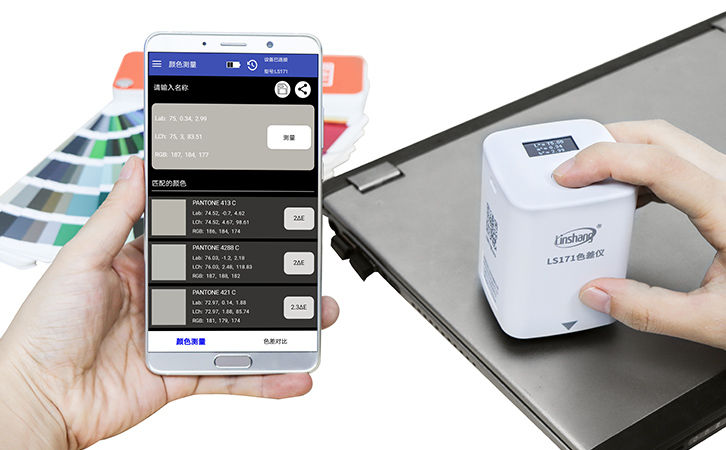

Details of LS171 Colorimeter in the forest Figure 5

3. You can establish a personal Color Chart library to store massive color data.

4. Color data can be imported and exported, and multiple people can share data through QQ, WeChat, email and other software.

Details of the LS171 Colorimeter in the forest show 6

5. With 7 color spaces and 6 color difference formulas to meet the needs of different industries.

Details of the LS171 Colorimeter in the forest show 7

6. Small size, one-handed hold, stable body, convenient measurement.

7. With OLED screen, it can be used alone, or it can be used with the mobile APP (support Chinese and English bilingual, the APP can be automatically converted into English after the mobile phone system is set to a foreign language), which is more powerful.

8. Built-in lithium battery, safer and more convenient to use, can be continuously measured 10,000 times when fully charged.

9. Focus on color collection and color aberration detection, and the repeatability of ΔE*ab is not higher than 0.03.

10. There is no need for cumbersome black and white board calibration, and the built-in compensation optical path makes the measurement data stable, and there is no need for frequent calibration.

Meets standards

(1) GBT 3978-2008 Standard Illuminator and Geometric Conditions

(2) GBT 3979-2008 Measurement method of object color

(3) GBT 7921-2008 Uniform color space and color aberration formula

(4) GBT 11186.1-1989 Measurement method of coating film color Part I: Principle

(5) GBT 11186.2-1989 Measurement method of coating film color Part II: Color measurement

(6) GBT 11186.3-1989 Measurement method of coating film color Part 3 Calculation of color difference

(7) JJG 595-2002 Verification Regulations for Color Measurement and Colorimeter

FAQ
QDo you have the color difference meter involved in JJG (Light Industry) 48?
A The LS171 color difference meter can be
QWhat is the difference between LS170 and LS171 Color Difference Meters?
A Hello, the Optical inspection structure and display screen of LS170 and LS171 are different. LS170 adopts 45/0 ° without display screen, while LS171 adopts D/8 structure and has a 0.96-inch OLED display.
QHow long is the LS171 color difference meter measurement response time?
A Hello, about 1s.
