China TBJ-X2 Automatic Film Applicator Vacuum chuck drawdown Bar & blade Small Lab Film Applicator

SE
Equipped with Drawdown blade + bar, with Vacuum chuck function, to solve the problem of film Spreader substrate is not easy to maintain stability, film and thick film can be applied, universal strong.
$3024.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-X2 Automatic Film ApplicatorSPEC

zy TBJ-X2 Automatic Film ApplicatorDetails

zy TBJ-X2 Automatic Film ApplicatorPacking list

SKU
NB031405
Coating method
Bar + adjustable drawdown blade
Drawdown blade type
Integrated drawdown blade
Drawdown blade Accuracy
±0.003mm
Drawdown blade thickness range
0.001-10Mm adjustable
Length of drawdown blade
400mm
Drawdown blade material
304 stainless steel
Mayer Rod Thickness Range
1-571.5 μm (Spreader thickness according to bar model)
Mayer Rod Accuracy
±0.001mm
Coating speed
5-200Mm/s (< 5mm/s can be customized)
Coating size
300 * 400Mm (Miscellaneous size can be customized)
Spreader distance control
The number can be set arbitrarily within the range of 1-400mm
Vacuum Area
300 * 400Mm (can be customized)
vacuum aperture
Φ1.2mm
Vacuum hole spacing
20*20mm
Vacuum pump size
380*180*280mm
Substrate clamping method
Vacuum adsorption
Control mode
Touch screen
Power supply Voltage
220V  50HZ
Dimension
630 * 410 * 520Mm (length * width * height)
Net Weight
65KG
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-X2
Automatic Film Applicator
Equipped with Drawdown blade + bar, with Vacuum chuck function, to solve the problem of film Spreader substrate is not easy to maintain stability, film and thick film can be applied, universal strong.
China TBJ-X2 Automatic Film Applicator Vacuum chuck drawdown Bar & blade Small Lab Film Applicator Picture

TBJ-X experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.

Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted by hand are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.

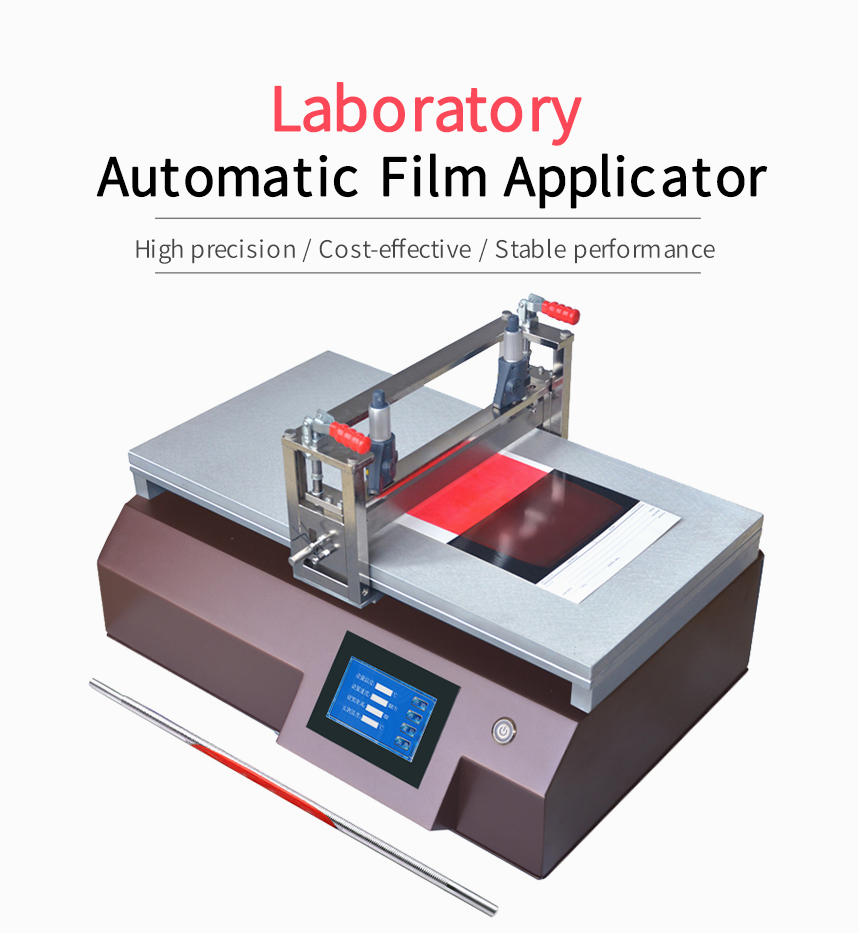

CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 1



CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 2



CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 3



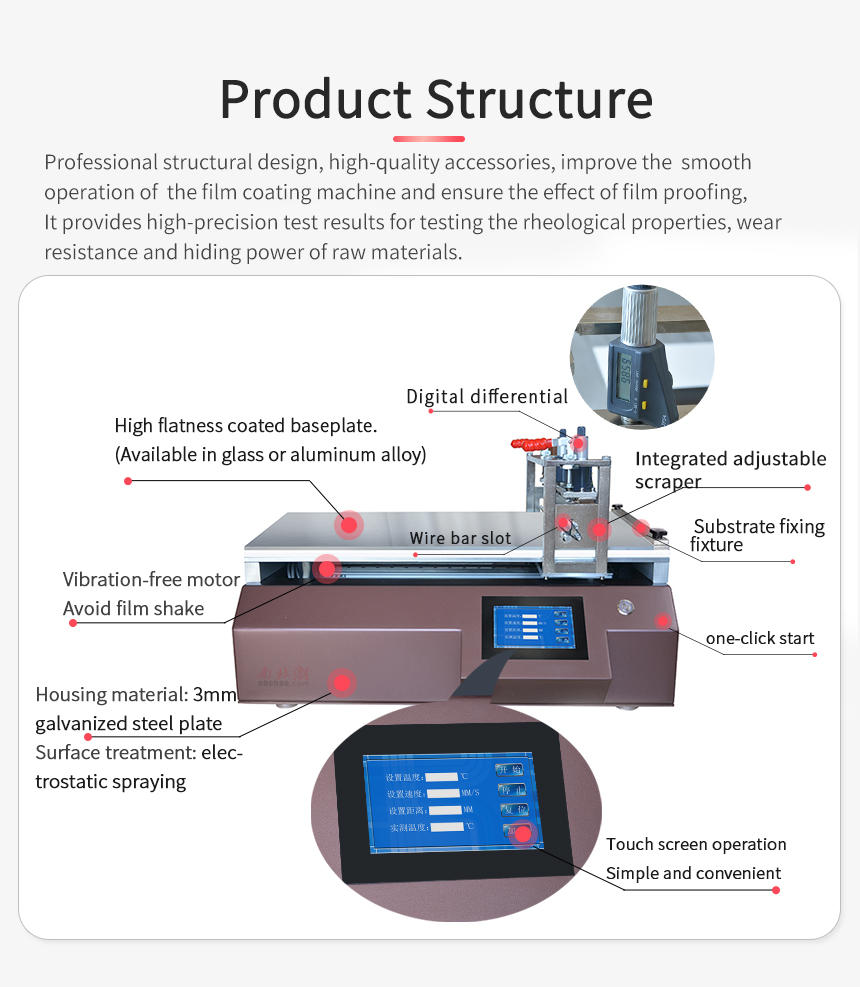

CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 4



CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 5



CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 6



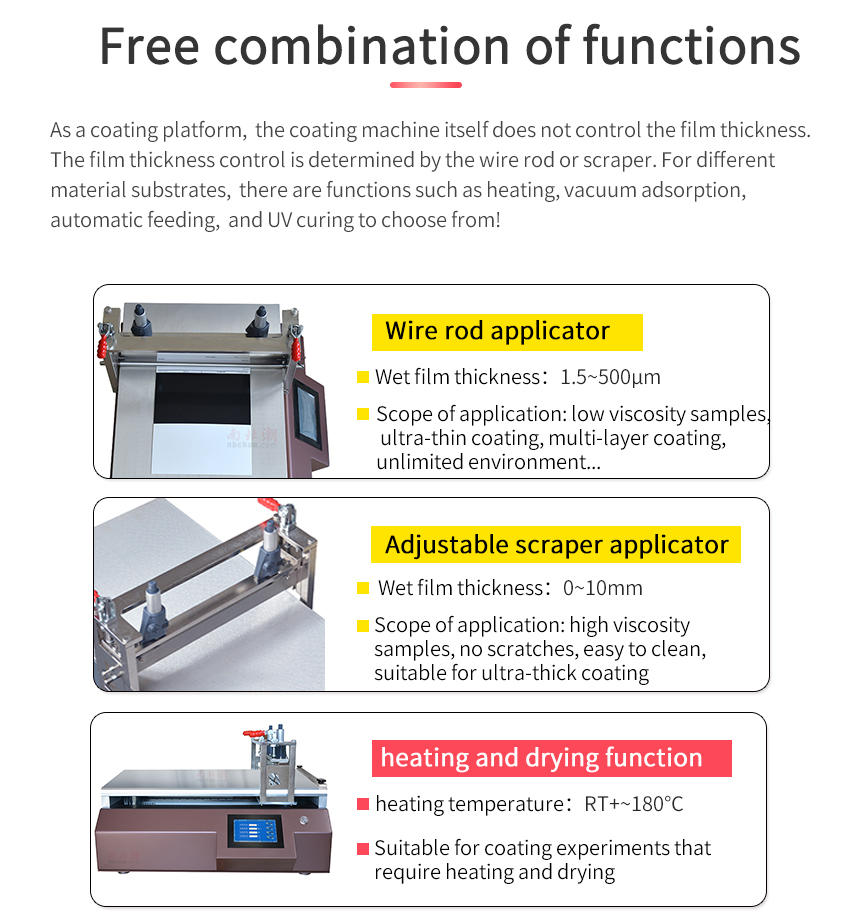

CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 7



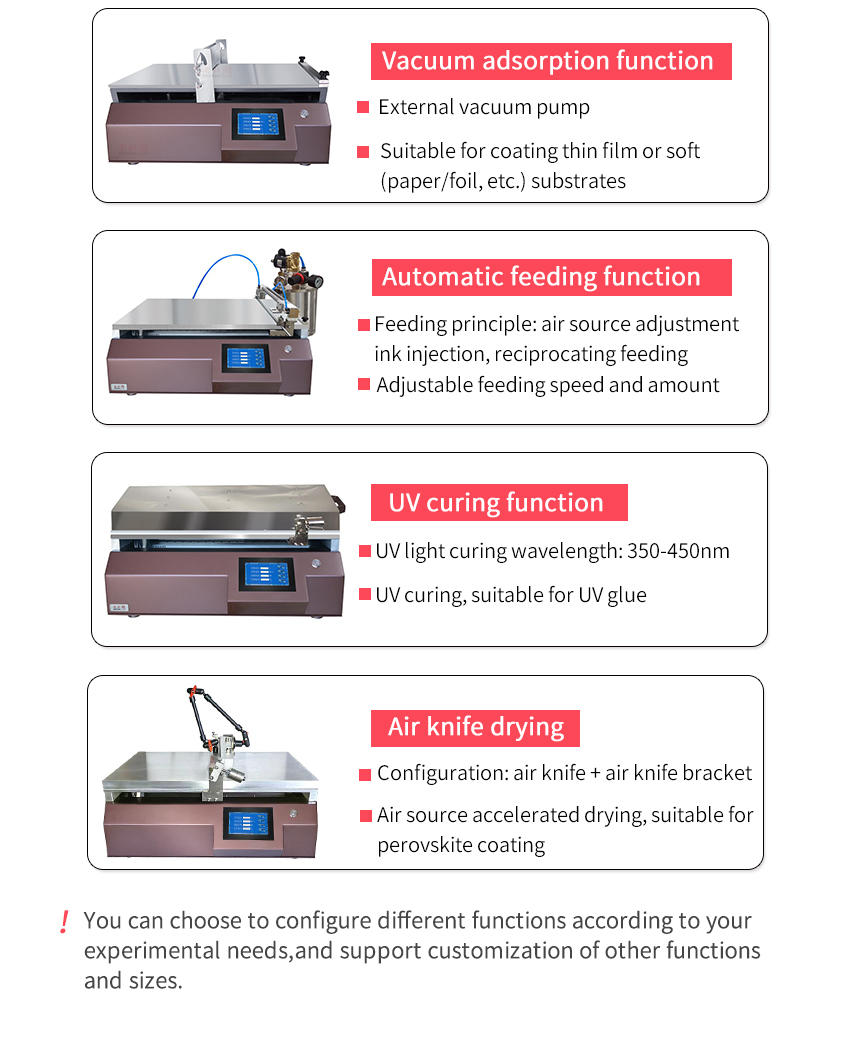

CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 8



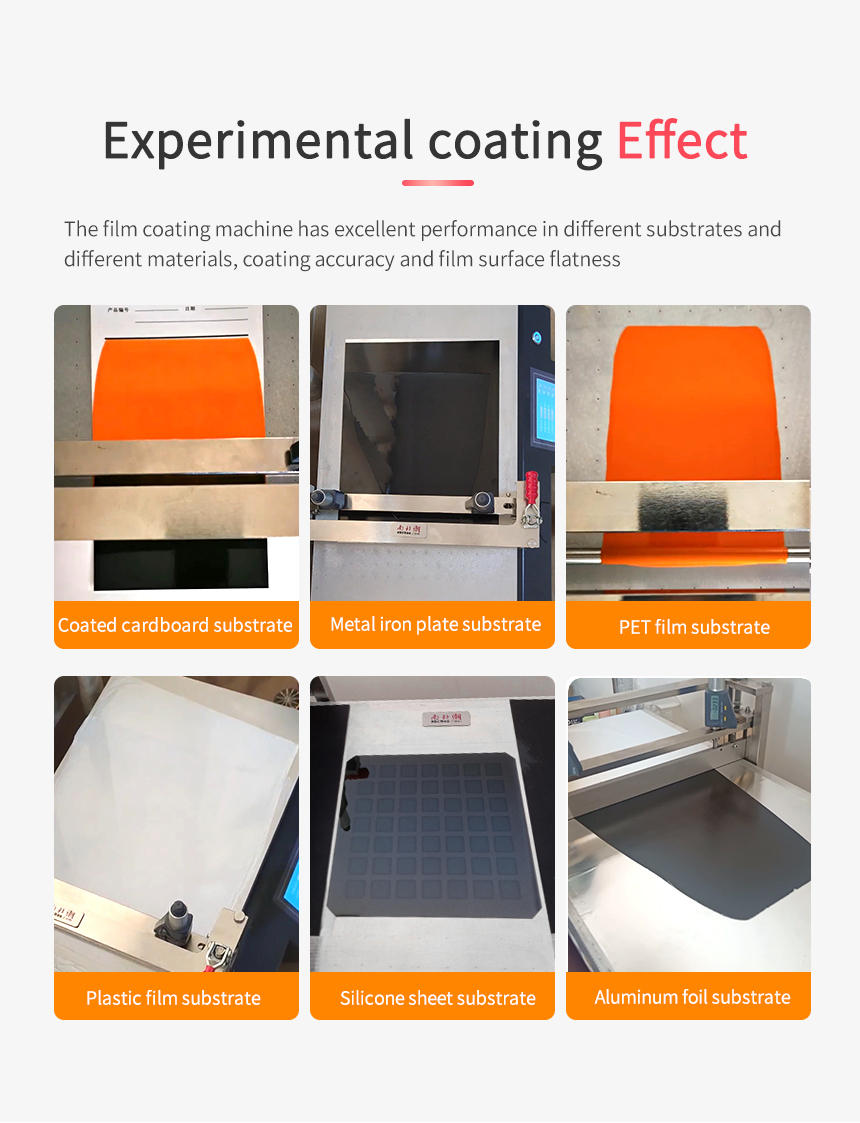

CHINA TBJ-X2 Automatic Film Applicator Vacuum adsorption Applicator Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QCoating, onto the metal Thickness: Uncertain, 100μm~ 1mm Coated on aluminum foil
A With metering rod & doctor blade with vacuum adsorption
QLithium battery industry coater Taobao channel It is aluminum foil and copper foil. I hope the stamping machine is equipped with 14 and 16mm molds.
A Lab Film Applicator with TBJ-X2 vacuum adsorption metering rod & doctor blade
QSpreader on 16 micron thick aluminum foil
A Wire rod + vacuum adsorption can be considered, and the coating length supports customization.
QWant to Spreader a layer of polyimide solution on an ordinary Glass substrate, and then heat drying to obtain a polyimide film, put it in water for disbonding, this one is suitable?
A suitable
QCan the insulating coating be scratched?
A OK
QWhat is the allowable viscosity of the Spreader material for this coater?
A The allowable range of film viscosity is generally determined by the Moulding device. The viscosity of the wire rod generally does not exceed 1000cp, and the doctor blade has no limit. But the accuracy of the wire rod is higher. In addition, due to the heating function, the viscosity of some materials decreases with the increase of temperature, so it is necessary to comprehensively consider the requirements of materials, substrates, film thickness and preparatory purposes. For details, please consult NBchao customer service.
QOur laboratory wants to make a photoresist Spreader and scrape it on the film. Is this suitable?
A Hello, this one can be used as Spreader on film. This one integrates a scraper and a wire rod and can be used.
QHow big is the vacuum hole of this coater?
A Hello, the vacuum hole is 1.2mm in diameter.
QWhat should I do if the film prepared on the experimental automatic film machine is difficult to peel off from the Glass substrate?
A Hello, there are two solutions: first, the baseplate is replaced by PTFE material, PTFE has release properties; second, Teflon solution can be coated on the Glass substrate, and then film liquid after drying.
