China TBJ-B4 drawdown Bar & blade Integrated Lab Film Applicator with heating, lithium battery Film Coater

SE
Drawdown blade + bar can be used at the same time, with heating function, aluminum alloy baseplate, temperature up to 200 ° C, to meet the need for rubber samples to heat Spreader; optional vacuum function.
$2092.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-B4 Automatic Film ApplicatorSPEC

zy TBJ-B4 Automatic Film ApplicatorDetails

zy TBJ-B4 Automatic Film ApplicatorPacking list

SKU
NB031409
Coating method
Bar + adjustable drawdown blade
Drawdown blade type
Integrated drawdown blade
Drawdown blade Accuracy
±0.003mm
Drawdown blade thickness range
0.001~ 10Mm adjustable
Length of drawdown blade
400mm
Drawdown blade material
304 stainless steel
Mayer Rod Thickness Range
1-571.5 μm (Spreader thickness according to bar model)
Mayer Rod Accuracy
±0.001mm
Coating speed
5-200Mm/s (< 5mm/s can be customized)
Coating size
300 * 400Mm (Miscellaneous size can be customized)
Spreader distance control
The number can be set arbitrarily within the range of 1-400mm
Heating Temperature range
RT+~180℃
Temperature Uniformity
±3℃
Heating mode
Aluminum baseplate heating
Substrate clamping method
Mechanical fixture
Control mode
Touch screen control
Host Power Supply
220V 50HZ 1700W
Dimension
626*410*520mm
Net Weight
65KG
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-B4
Automatic Film Applicator
Drawdown blade + bar can be used at the same time, with heating function, aluminum alloy baseplate, temperature up to 200 ° C, to meet the need for rubber samples to heat Spreader; optional vacuum function.
China TBJ-B4 drawdown Bar & blade Integrated Lab Film Applicator with heating, lithium battery Film Coater Picture

TBJ-B experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.


Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted by hand are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.

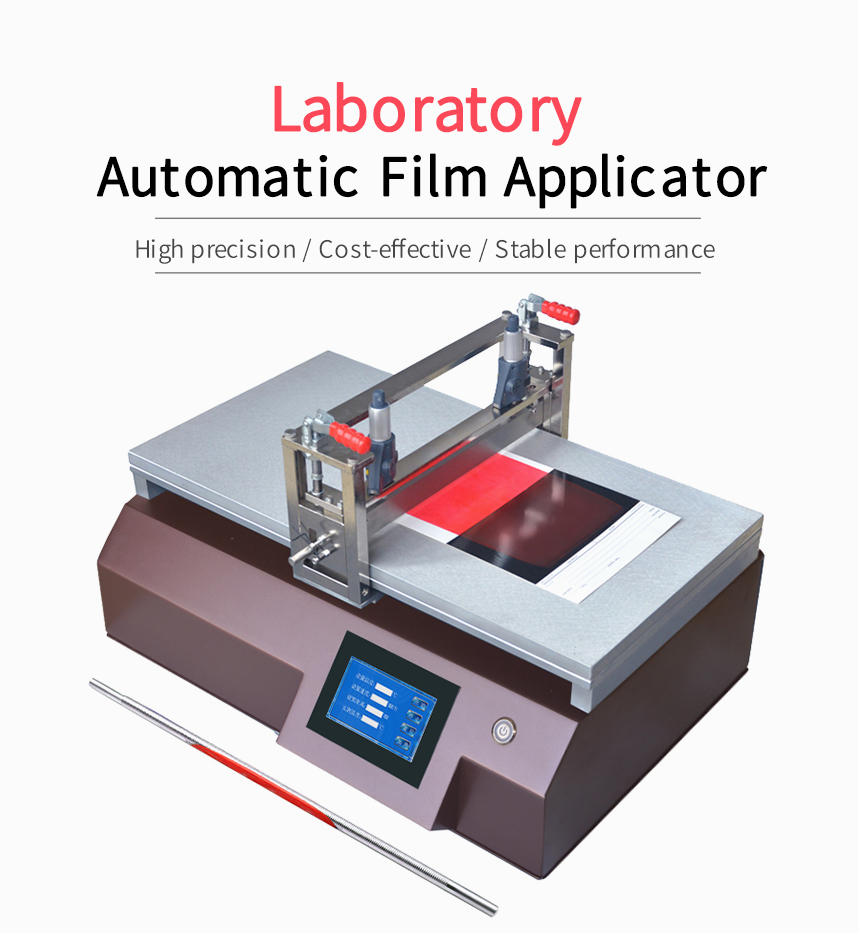

CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 1



CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 2

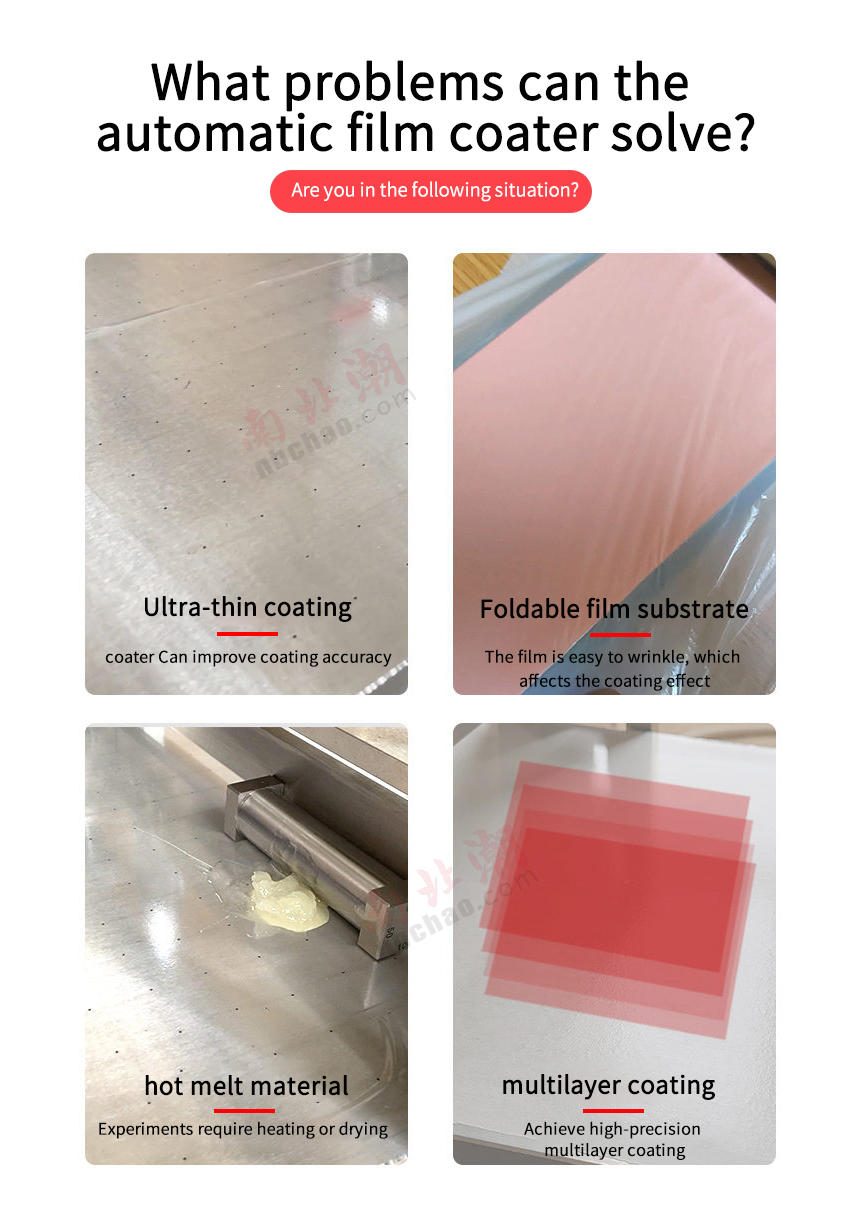

CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 3

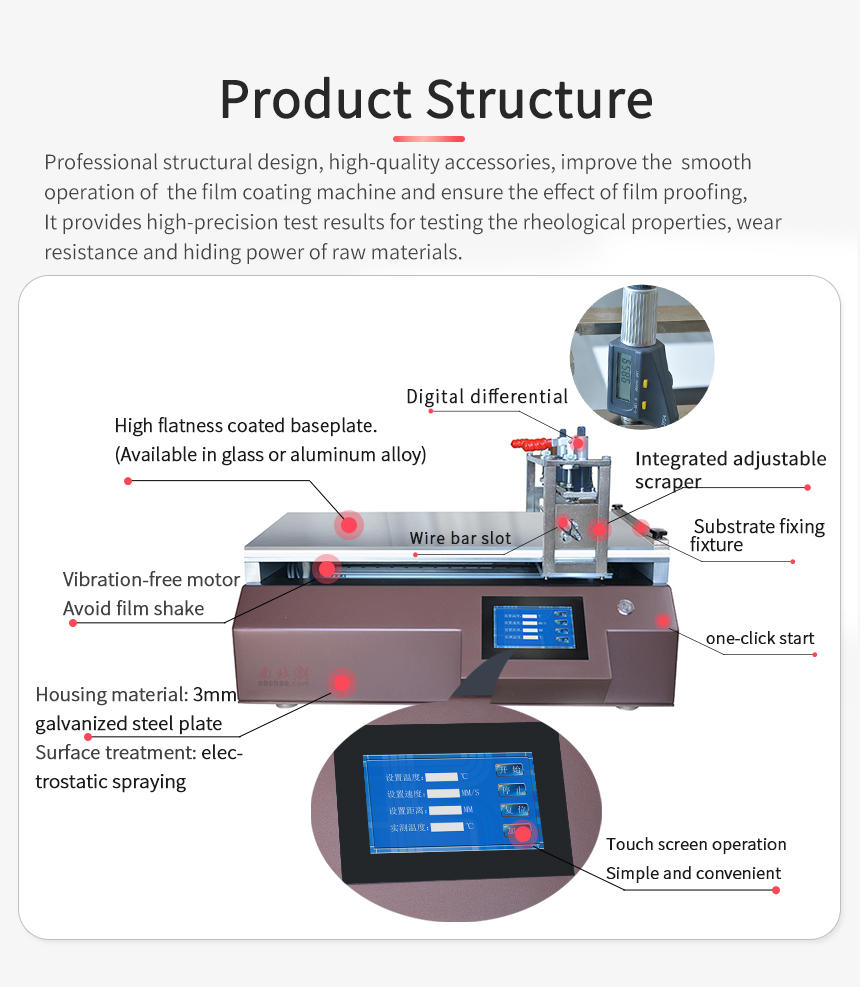

CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 4



CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 5

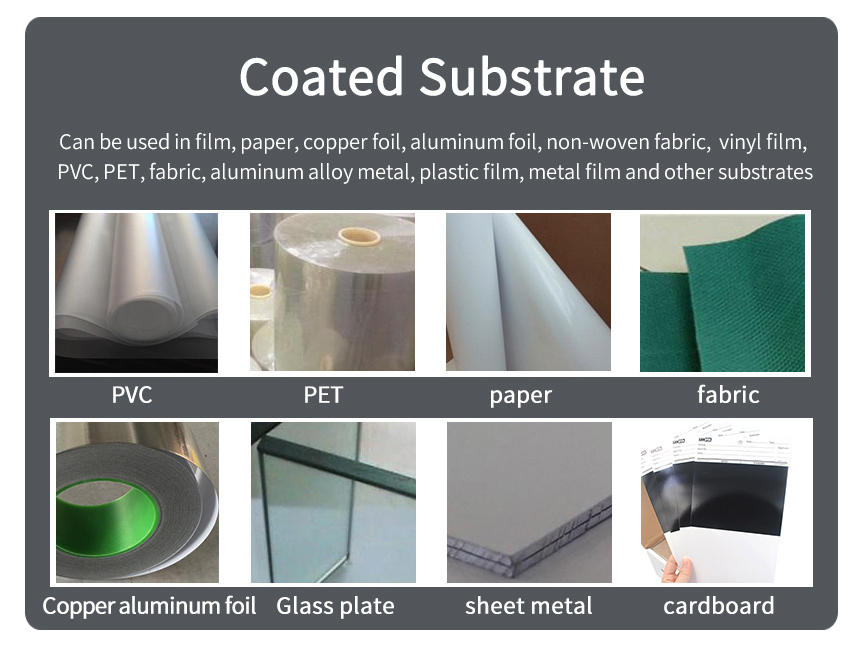

CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 6

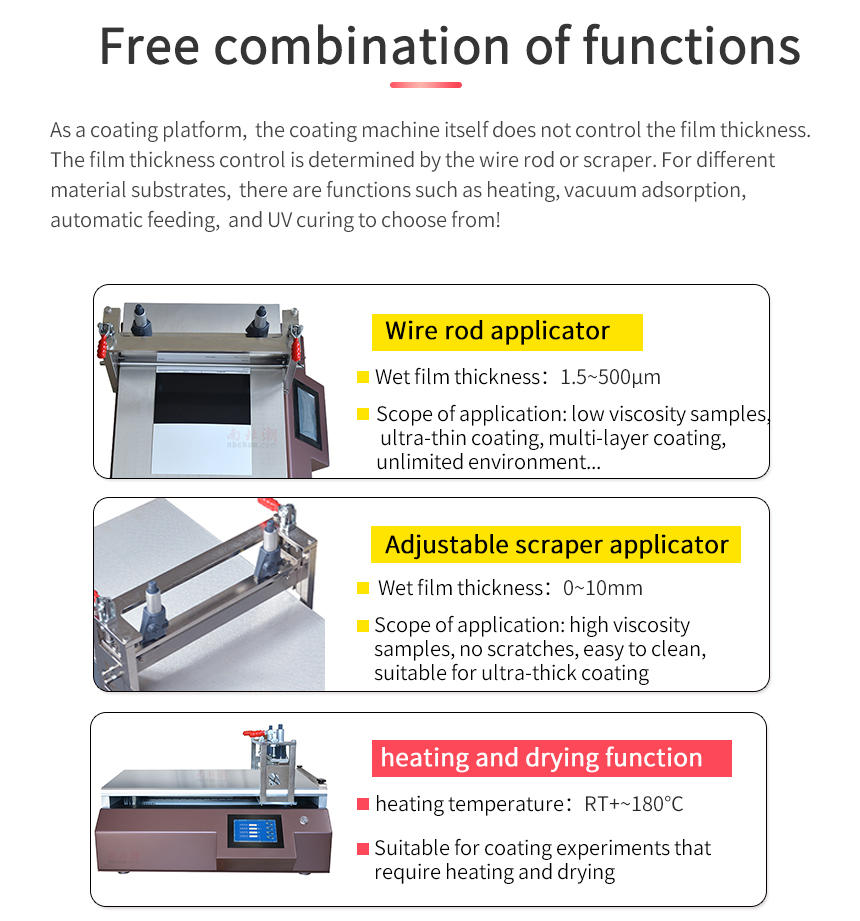

CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 7

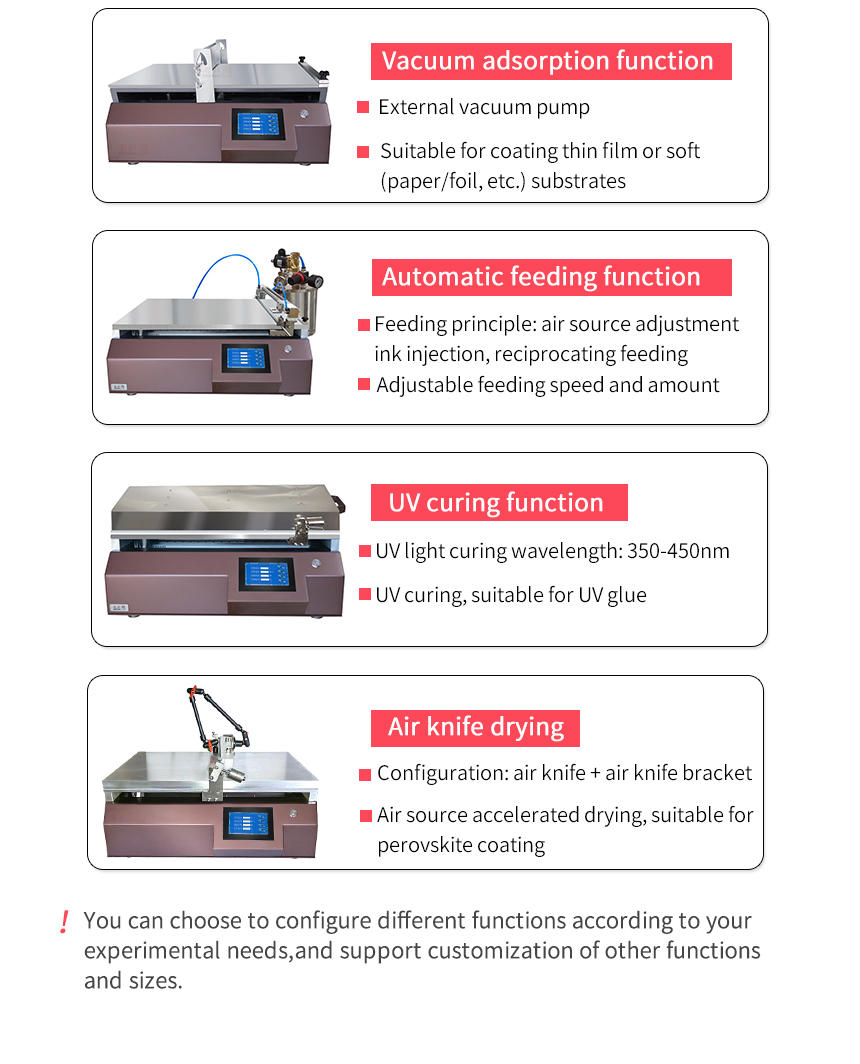

CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 8

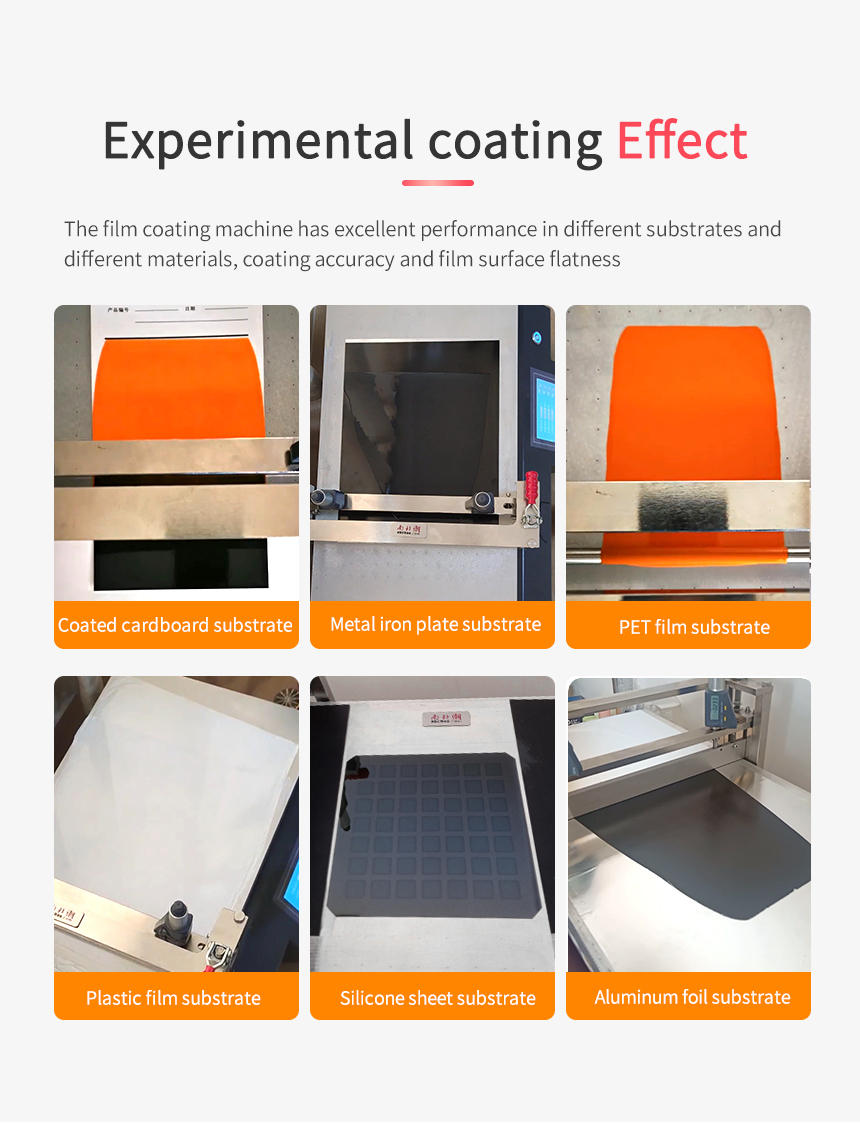

CHINA TBJ-B4 Wire Bar Scraper Integrated Applicator with Heating, Lithium Battery Automatic Film Applicator Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QWaxed, flake, 1 meter long, 0.5 meters wide Apply a layer of glue under the wax, similar to a sticker, Pressure sensitive adhesive Dental materials The normal thickness is 1mm, and the thinnest is 0.2mm. And then film laminating
A Recommended doctor blade heating function
QFilm Applicator Coated on non-woven fabrics, Materials coated with cosmetics have relatively high viscosity. Gelatinous, flowability Thickness is difficult to evaluate, Dry-Film 13~ 20g/square Curing: heat curing Solid content 10%
A Doctor blade heating function
QCoater, solid content of about 65, coated with 40g For paper proofing, doctor blade type
A You can use metering rods & doctor blades,
QDo water-based film, viscosity is not big, coated more than ten microns, to heating, Glass substrate needs to be coated with adjustable width, and the film needs to be disbonded
A Film Applicator for metering rod & doctor blade heating
QCan you do Spreader experiments on silicone gels, hydrogels, and hot-soluble adhesives?
A Very well.
QPolymer film Spreader, there will be organic solvents, DMF, etc., the thickness is 0-100 microns
A This one is ok.
QApply glue to PET film
A This one is ok.
QHow does this Film Applicator fix my Spreader substrate?
A Hello, the coater is equipped with an optional fixture, which can be fixed.
QPET Film Spreader on the scraper Film thickness control is to adjust this Micrometer?
A Hello, yes. 1.000 on the table means 1000μm.
QWhat is the allowable viscosity of the Spreader material for this coater?
A The allowable range of film viscosity is generally determined by the Moulding device. The viscosity of the wire rod generally does not exceed 1000cp, and the doctor blade has no limit. But the accuracy of the wire rod is higher. In addition, due to the heating function, the viscosity of some materials decreases with the increase of temperature, so it is necessary to comprehensively consider the requirements of materials, substrates, film thickness and preparatory purposes. For details, please consult NBchao customer service.
