High-precision bar automatic film, touch operation, 300 * 400mm conventional format, suitable for ultra-thin film on paper or Miscellaneous flat substrate, completely eliminate manual errors.
$1128.00/set
PromotionLoading...
Coupon
Model：
TBJ-A1
zy
Manufacturer authorization
Similar products
-
HuiNuo TM1000Apro high-precision bar Film Coater Aluminum alloy baseplate servo motor$ 2092.00SE -
HuiNuo TM1000A wire-rod Film Applicator aluminum alloy baseplate$ 1781.00SE -
China bar Lab Film Applicator Experimental small coater TBJ-AJ-XB with imported bar$ 1081.00SE -
HUINUO TM1000pro High-accuracy Wire-rod Film Coating Apparatus$ 1936.00SE -
China bar type Automatic Film Applicator TBJ-A1-XB with imported bar$ 1283.00SE
zy TBJ-A1 Automatic Film ApplicatorSPEC
zy TBJ-A1 Automatic Film ApplicatorDetails
zy TBJ-A1 Automatic Film ApplicatorPacking list
- SKU
- NB031410
- Coating method
- bar
- Mayer Rod Thickness Range
- 1-571.5 μm (Spreader thickness according to bar model)
- Mayer Rod Accuracy
- ±0.001mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 300 * 400Mm (Miscellaneous size can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-400mm
- Substrate clamping method
- Mechanical fixture
- Control mode
- Touch screen control
- Host Power Supply
- 220V 50HZ
- Dimension
- 650*410*520mm
- Net Weight
- 45KG
- speed control
- Infinitely variable speed
- Bottom plate material
- Glass
- Optional Accessories

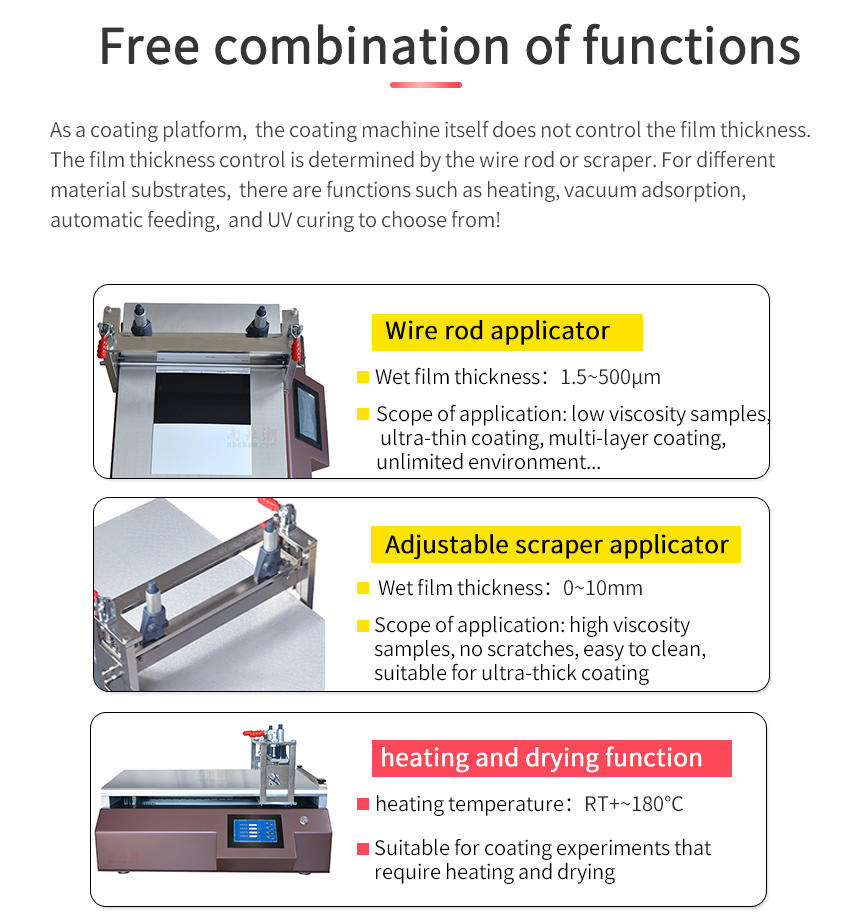

- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function

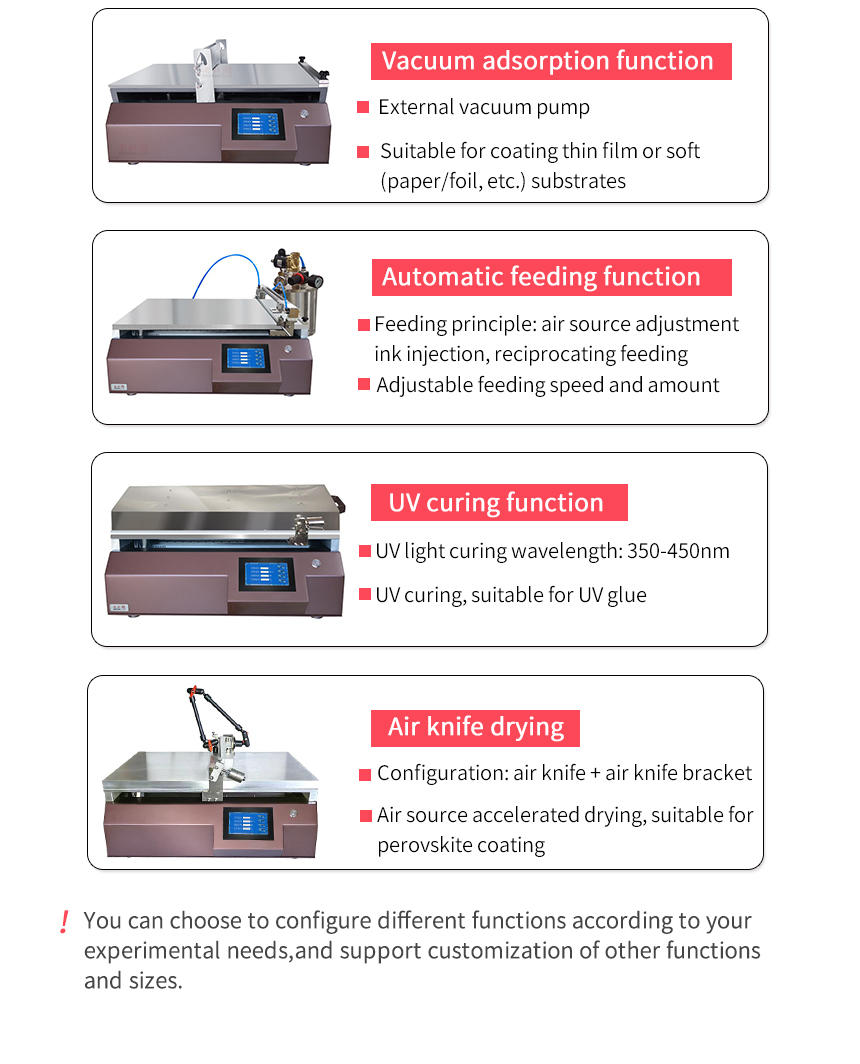

- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

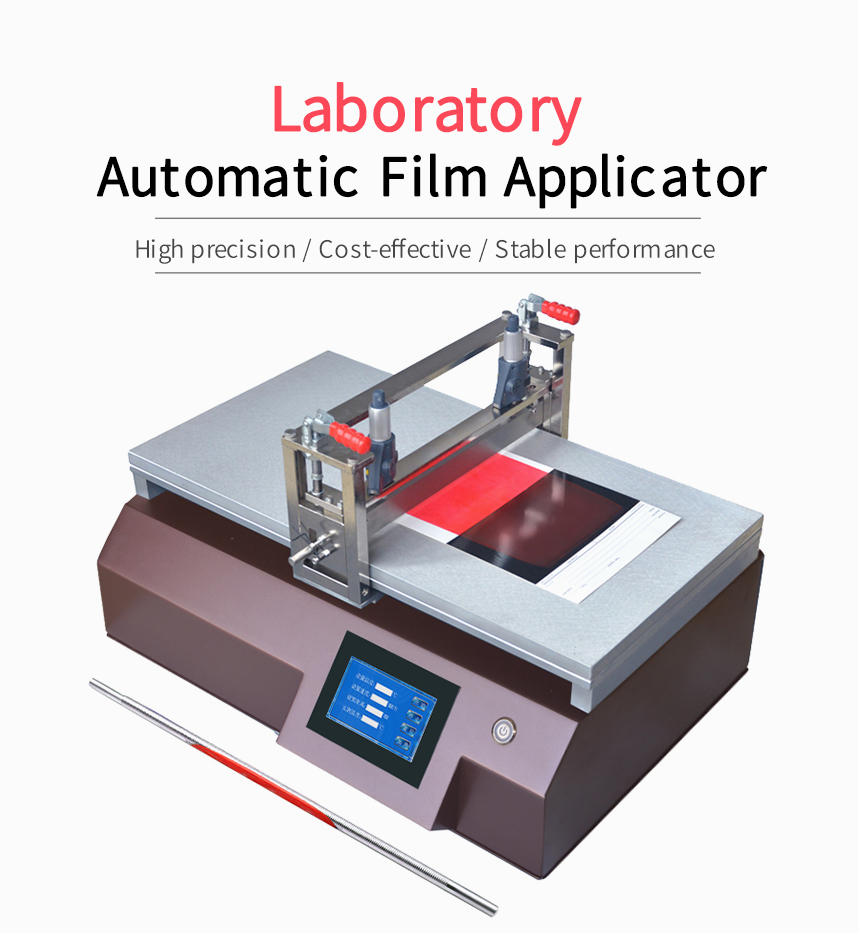

TBJ-A1
Automatic Film Applicator
High-precision bar automatic film, touch operation, 300 * 400mm conventional format, suitable for ultra-thin film on paper or Miscellaneous flat substrate, completely eliminate manual errors.

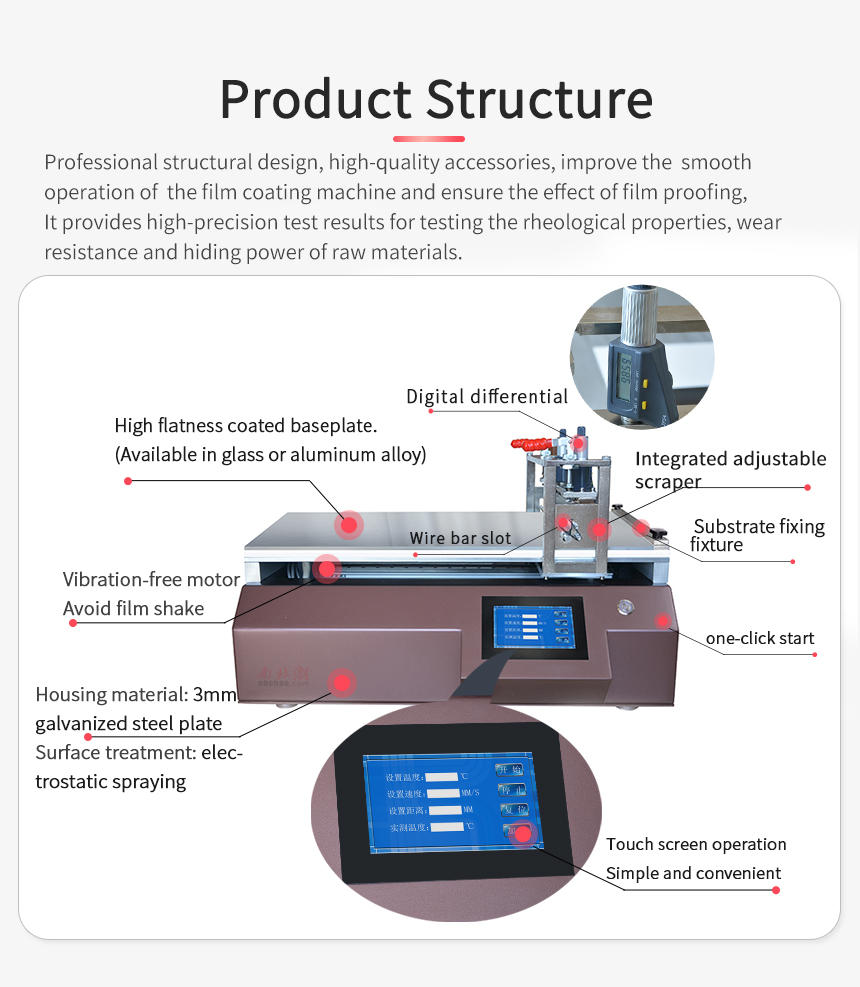

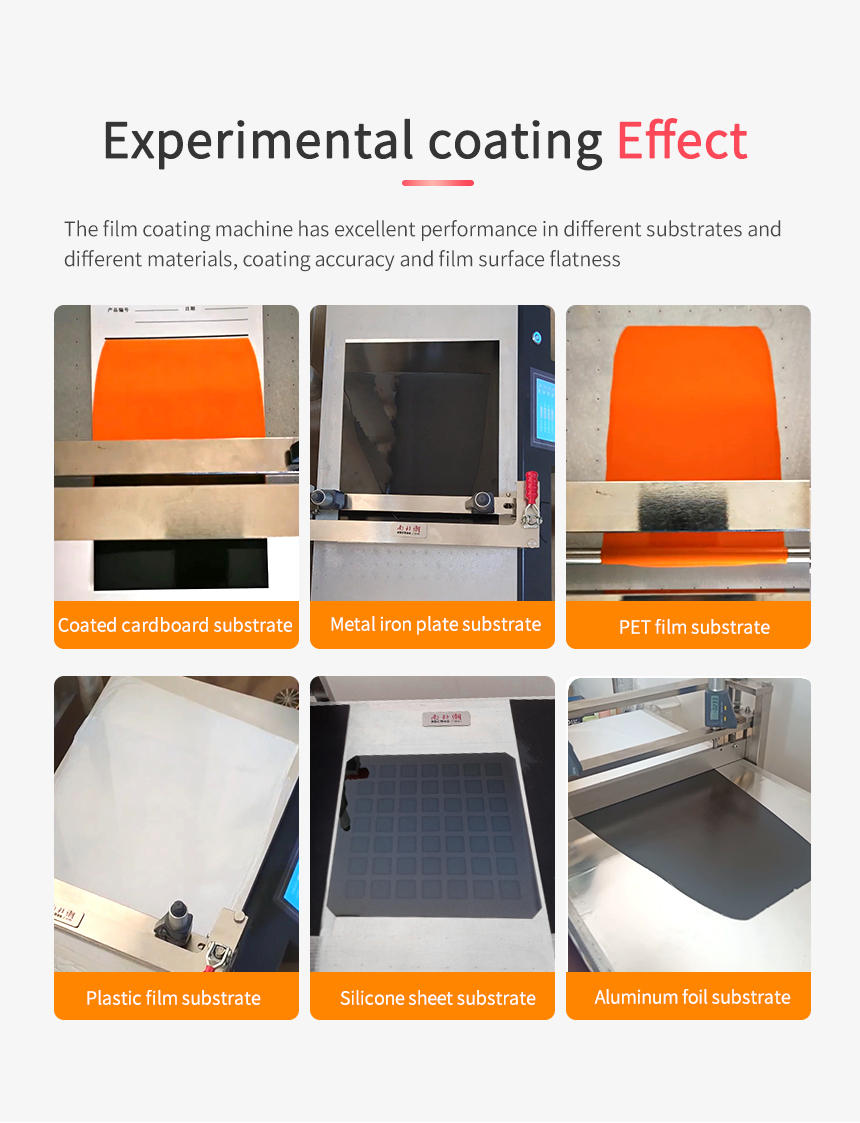

The touch laboratory TBJ-A1 wire rod coating testing machine is a newly upgraded product that is carefully designed to coat precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless coatings. After testing samples, the equipment has been favored by many familiar companies, research and development institutions, and colleges and universities after it was put into the market.
Optional
|
|
|
FAQ
QApply a metallic coating to the film
Want to know lame plating process
Can it be customized according to our requirements?
Send me the lame plating.
A
Use a wire rod coater to scrape more evenly
QSpreader Adhesive
Viscosity of glue 6000-12000mpas
Metal plate substrate 1~ 2mm
Film thickness 30~ 100μm
To heating function
A
You can use a wire rod type, budget if it's ok, with heating function.
QLaboratory, want to scrape flat water filtrate membrane, this can be used?
A
OK
QWhat is the allowable viscosity of the Spreader material for this coater?
A
The allowable range of film viscosity is generally determined by the Moulding device. The viscosity of the wire rod generally does not exceed 1000cp, and the doctor blade has no limit. But the accuracy of the wire rod is higher. In addition, due to the heating function, the viscosity of some materials decreases with the increase of temperature, so it is necessary to comprehensively consider the requirements of materials, substrates, film thickness and preparatory purposes. For details, please consult NBchao customer service.
QIs there an operation video for the Automatic Film Applicator?
A
Hello, yes, please contact the technical customer service to obtain it.
QWill it be complicated to replace the rod for this coater? Can it be equipped with OSP rod Spreader?
A
Hello, the replacement of the wire rod of this coater is not complicated. You can also consult our after-sales technology when you replace it, and it can be equipped with OSP wire rod.
QBuy this small coater of Zhongyi, do you have it with a wire rod?
A
Hello, if you buy this machine, it comes standard with a wire rod.
QWhat should I do if the film prepared on the experimental automatic film machine is difficult to peel off from the Glass substrate?
A
Hello, there are two solutions: first, the baseplate is replaced by PTFE material, PTFE has release properties; second, Teflon solution can be coated on the Glass substrate, and then film liquid after drying.
