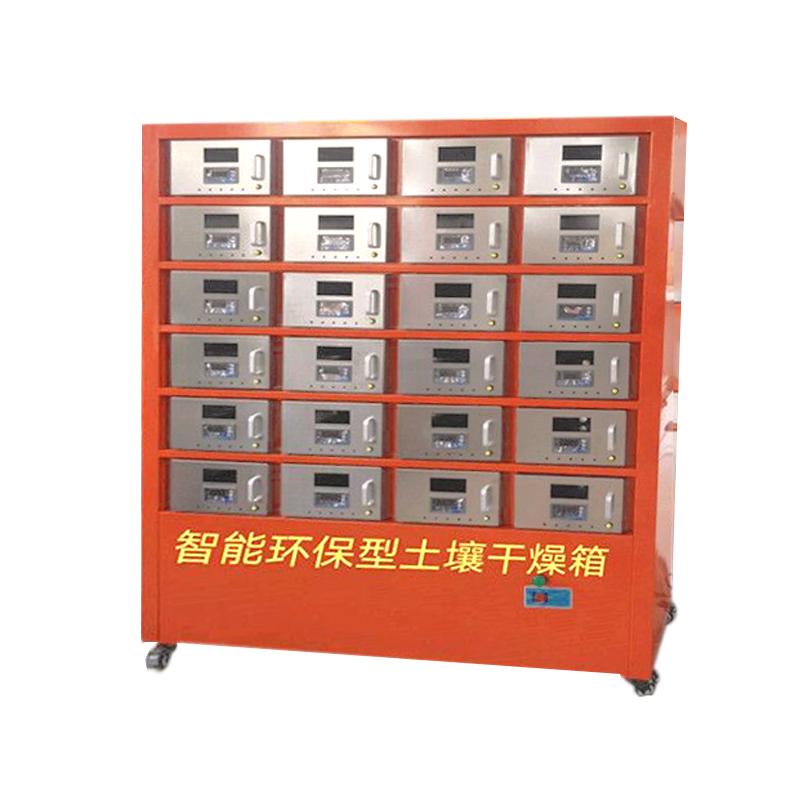

BOZHEN BZ-TR-24H Intelligent environmental protection soil sample Drying Oven

BZ-TR-24H

Intelligent and environmentally friendly soil sample Drying Oven

Introduction

BZ-TR-24H Intelligent Soil Sample Drying Oven has: 1. The air for air-drying samples passes through professional air filtration and adsorption technology, 2. The temperature of the independent sample room is controlled independently. 3. The exhaust gas generated by air-drying of samples is collected and discharged in a unified manner, which does not affect the laboratory environment. 4. The exhaust gas discharged outside is filtered and adsorbed, and the 100-level purification meets environmental protection requirements.

main feature

1. Using air disturbance technology, one in and one out simulates the indoor air flow, which is largely close to the indoor environment and achieves the purpose of rapid air drying.

2. Sampling has professional air filtration and adsorption technology, and is equipped with a general exhaust guide port (external exhaust pipe can be connected) to eliminate the peculiar smell caused by the sample drying process.

3. The exhaust gas is collected uniformly, and then discharged to the outside through the pipeline after filtration, adsorption and purification. To be truly environmentally friendly.

4. There is an independent sample room in the sample box, which separates the samples and prevents cross-contamination.

5. The sample chamber is made of stainless steel to avoid chemical corrosion and organic adsorption; easy to clean.

6. The purified air source chamber is placed in a drying box, with an integrated structure, which has the advantages of quiet effect, small occupation area, simple operation and easy maintenance.

7. The sample room can be equipped with enamel trays, stainless steel trays, etc., which can directly place ordinary soil samples or samples with high water content such as river bottom mud.

8. Each sample chamber is equipped with an independent heating module, so that the constant temperature range and precision of each sample chamber are significantly improved, the temperature control uniformity is effectively improved, and there is no interference between adjacent sample chambers.

9. Optional 7-inch large LCD touch screen, convenient and easy to operate.

10. The sample room is equipped with a transparent observation room, which is convenient for customers to observe the status of samples at any time.

11. Each sample box can be independently controlled and constant temperature.

12. Equipped with a high-power ultra-quiet air purification device, which can accelerate air circulation.

13. The sample room has a large space, which can hold 2-3 kg samples, which is convenient for sample drying.

14. The heating material of the Drying Oven is an infrared silica gel heating module, which is evenly heated and has good insulation effect and long service life.

15. The bottom of the soil drying box is equipped with rollers for easy movement.

Applicable standard

Applicable to the following standards related to NY/T 1121.1-2006 "Soil Testing Part 1: Collection, Processing and Storage of Soil Samples", HJ/T 20-1998 "Technical Specifications for Sampling and Sample Preparation of Industrial Solid Waste" sample drying requirements: GB/ T 32722-2016 "Guidelines for Long-term and Short-term Storage of Soil Quality Soil Samples", HJ/T 166-2004 "Technical Specifications for Soil Environmental Monitoring"

Packing list：Host X1, tray X24, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
