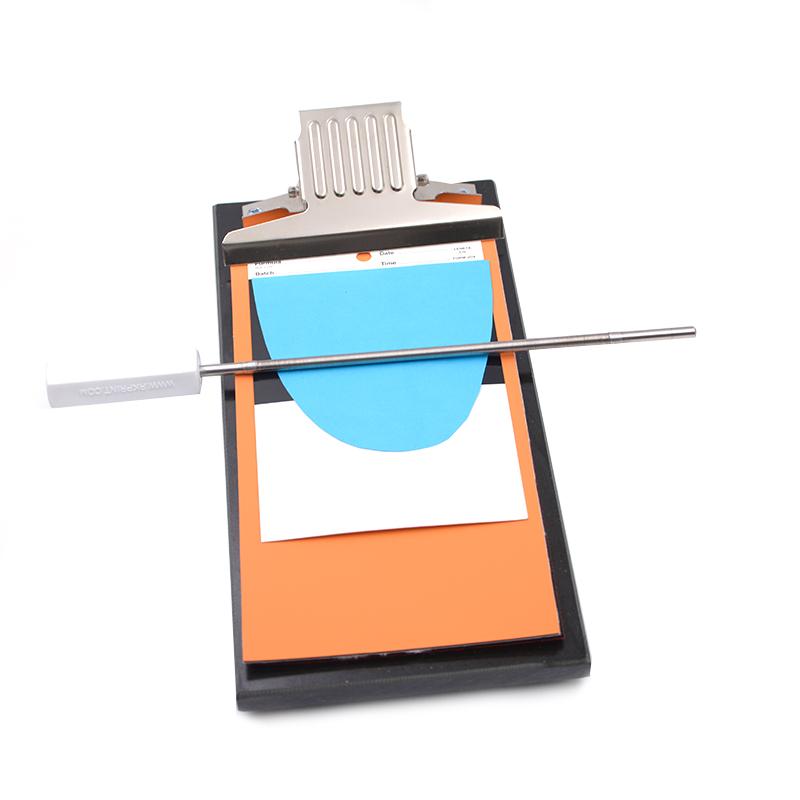

UK RK KHC.10.0 + KHC.20 Wire Bar Drawdown Plate Set, White Handle

KHC.10.0 + KHC.20 set

Applicator rod

Introduction to RK wire rod

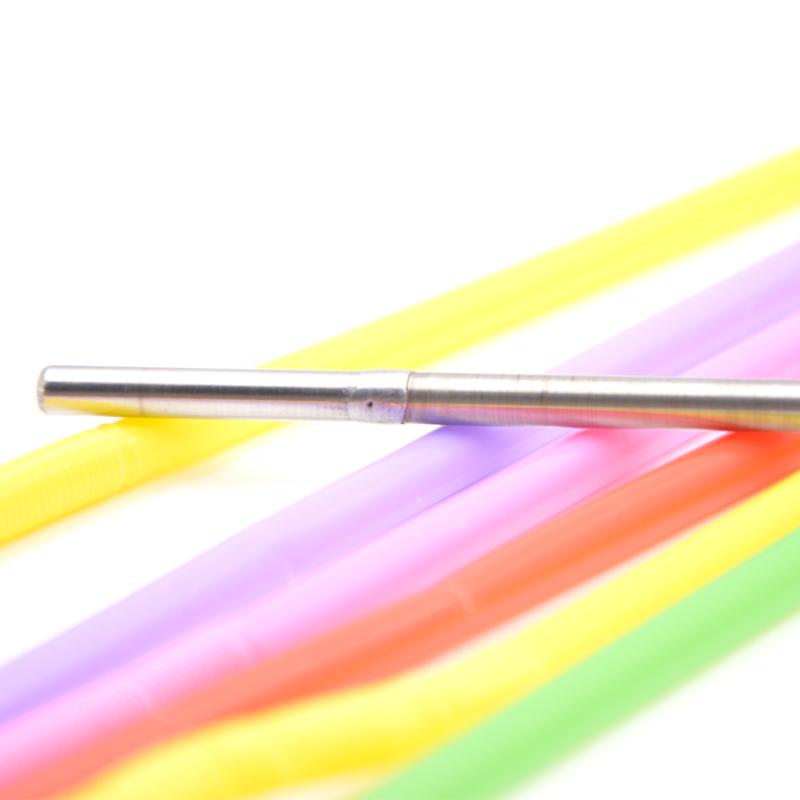

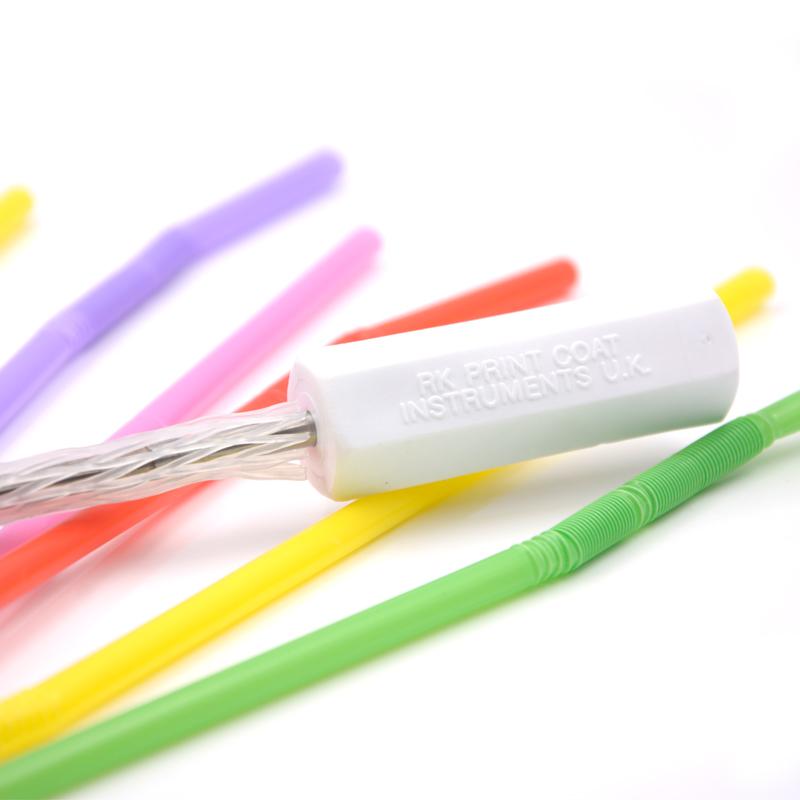

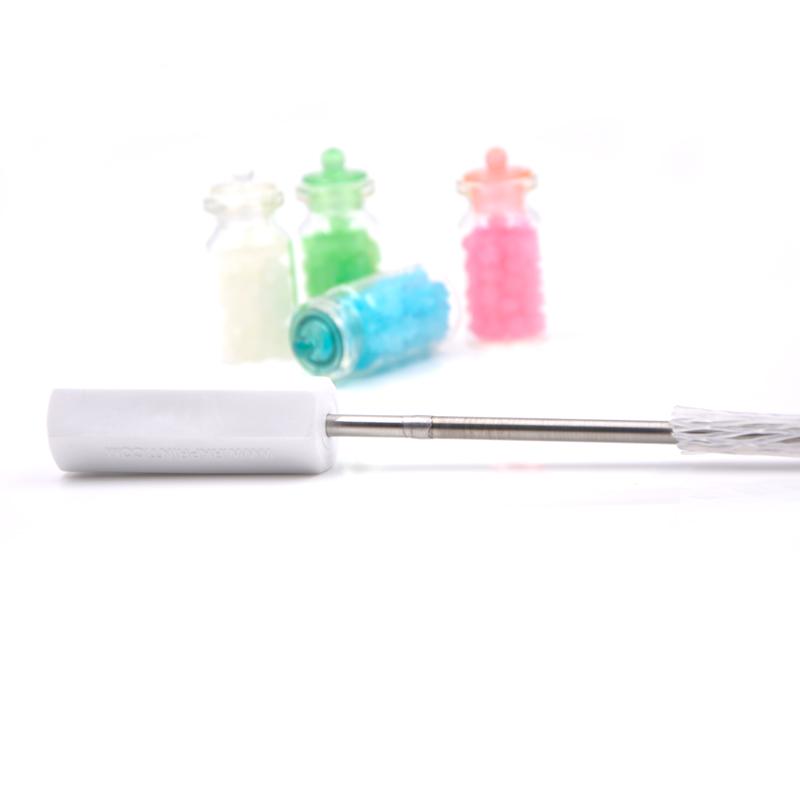

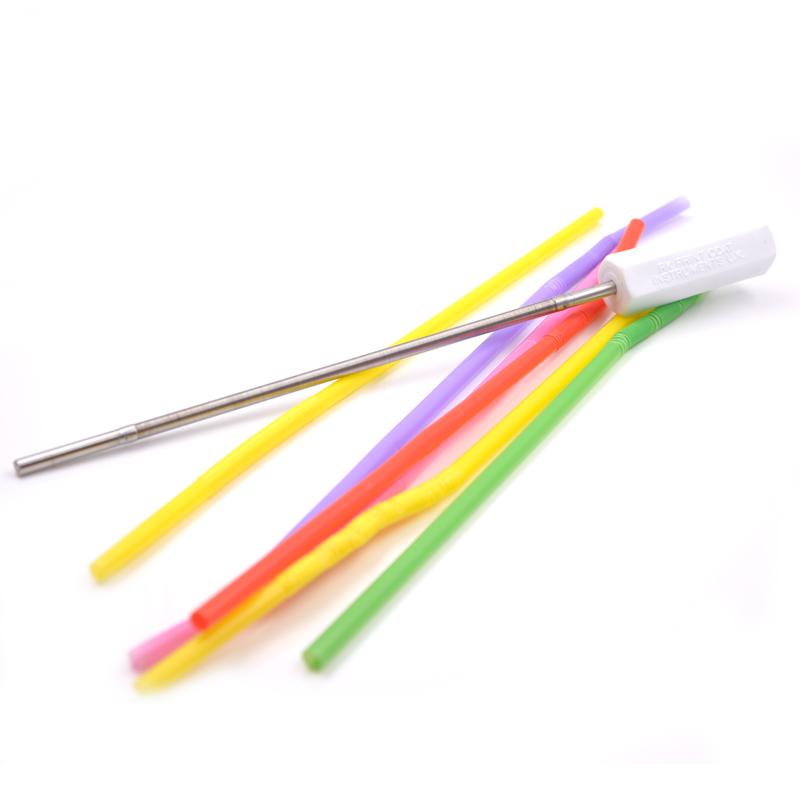

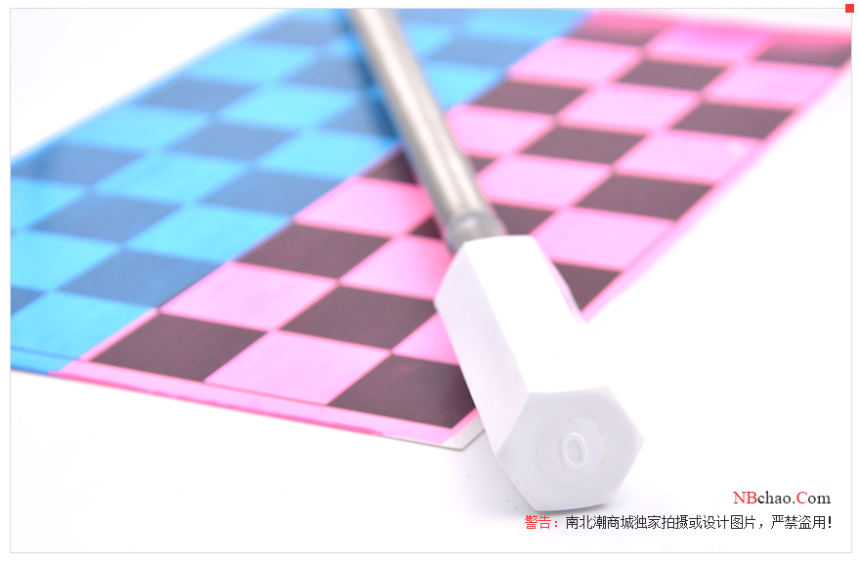

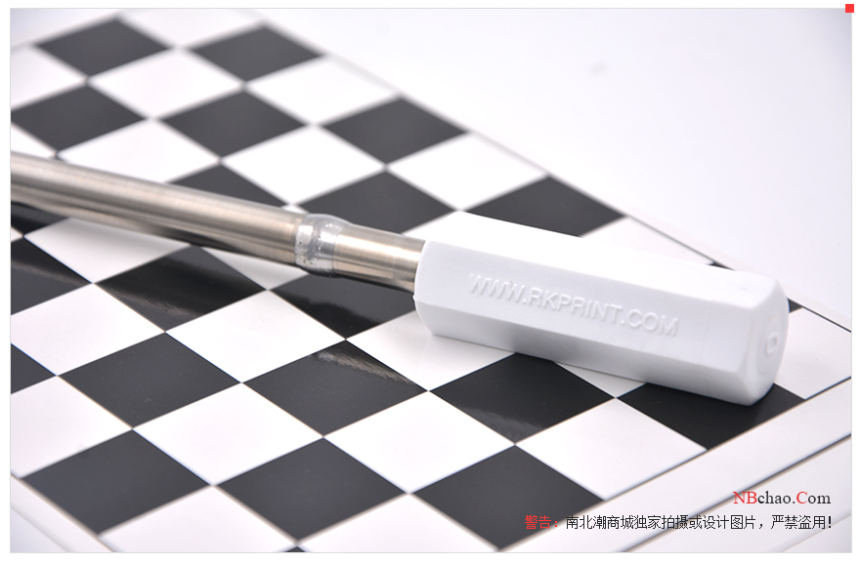

The British RK wire Bar Coater is an imported high-end brand wire bar that adopts a wire-wound process. Its remarkable feature is that it can apply two or more coatings at the same time in one operation. It is an ideal instrument for preparing comparative samples. Another unique design of RK wire rods is that there are different colored rubber tips on one end of the rod corresponding to different rod numbers, making it easier for users to identify. Each RK wire rod size is divided into long rod and short rod, the lengths are 24.5cm and 37.5cm respectively.

RK0 wire rod is a hot-selling model, KHC.10.0 is a short rod, the coating wet film thickness is 4μm, the Total length is 24.5cm, and the effective coating width is 14cm. No. 0 wire rod is a hot-selling model and is popular in fields such as ink proofing, packaging and printing, and daily chemicals.

Introduction to KHC.20 Imprinting Bed

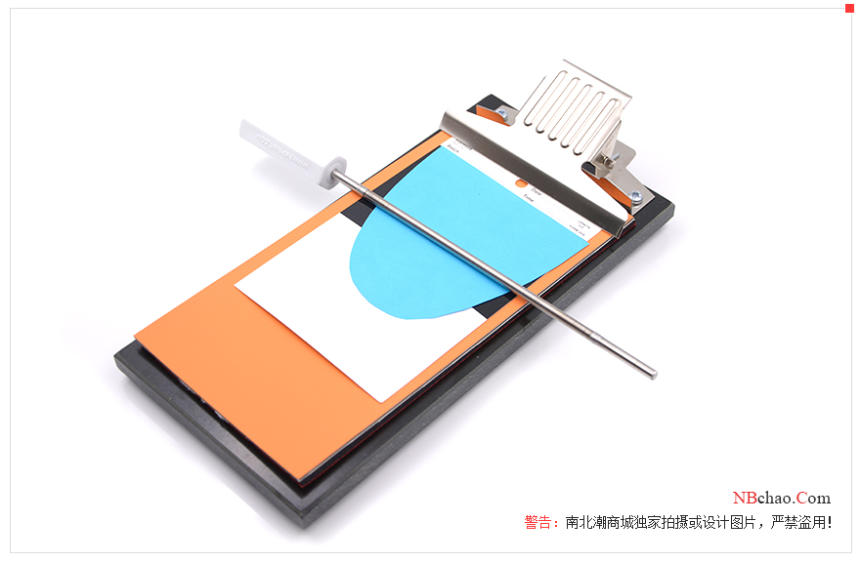

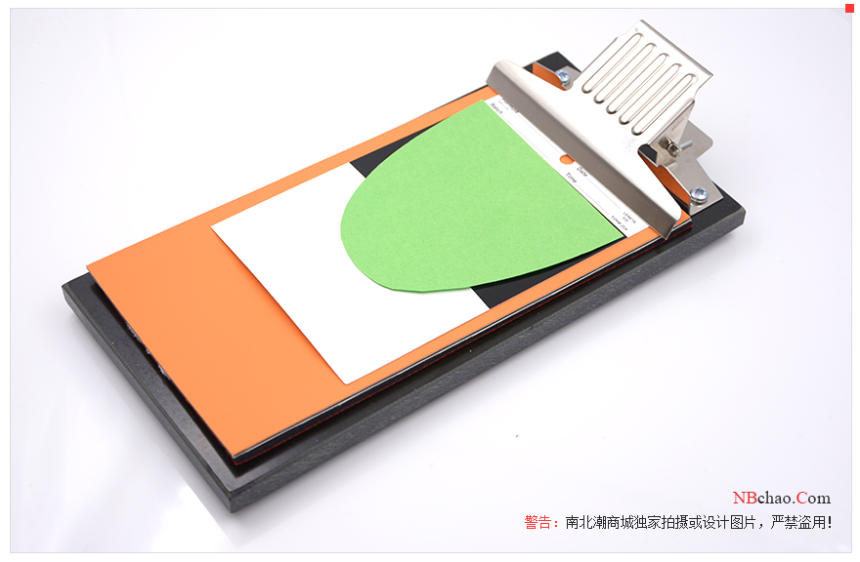

The RK imprinting bed is a coating platform designed by RK in the UK. It uses different material combinations to effectively improve the coating and proofing effect. The RK imprinting bed consists of clamps, a rigid polyester board and a foam/rubber cushion. Compared with proofing directly on hard substrates, proofing on the RK printing bed has better repeatability and proofing effects. This is because the soft foam/rubber pad can absorb the pressure exerted by the operator on proofing to a certain extent, resulting in better proofing results.

KHC.20 is a small imprinting bed, used with RK short rods, with dimensions of 247x124x12mm.

Optional

Note: Click on the accessory image to view product details.

Packing list：Main Rod [with Glue Head] X1, Small Drawdown Plate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
