FANGRUI NDJ-8S Viscosity Sensors 1mPa.S~ 2 million mPa.s High Viscosity

FANGRUI NDJ-8S Viscosity Sensors is a high-viscosity Rotational Viscometer of the NDJ series, using a large LCD display. The NDJ-8S digital Viscometer can automatically prompt a good Rotor speed combination according to the viscosity value of the test sample.
Model：
Certificate
Contact
Details SPEC VIDEO
Similar products

FangRui NDJ-8S Viscosity SensorsSPEC

FangRui NDJ-8S Viscosity SensorsDetails

FangRui NDJ-8S Viscosity SensorsPacking list

SKU
NB031464
Display
Backlit LCD display
Measurement range
1~2000000mPa·s
Rotor specification
1#、2#、3#、4#
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
110~230V 50Hz/60Hz
Interface
R232C Communication interface one, temperature sensor interface one, power jack one
Dimensions
300*300*450mm
Weight
5kg
Display information
Automatic display of the maximum viscosity value measurable by the selected combination of rotor and Rotation speed
Automatic scan function
According to the viscosity value of the test sample, a better Rotor speed combination can be automatically prompted
NDJ-8S
Viscosity Sensors

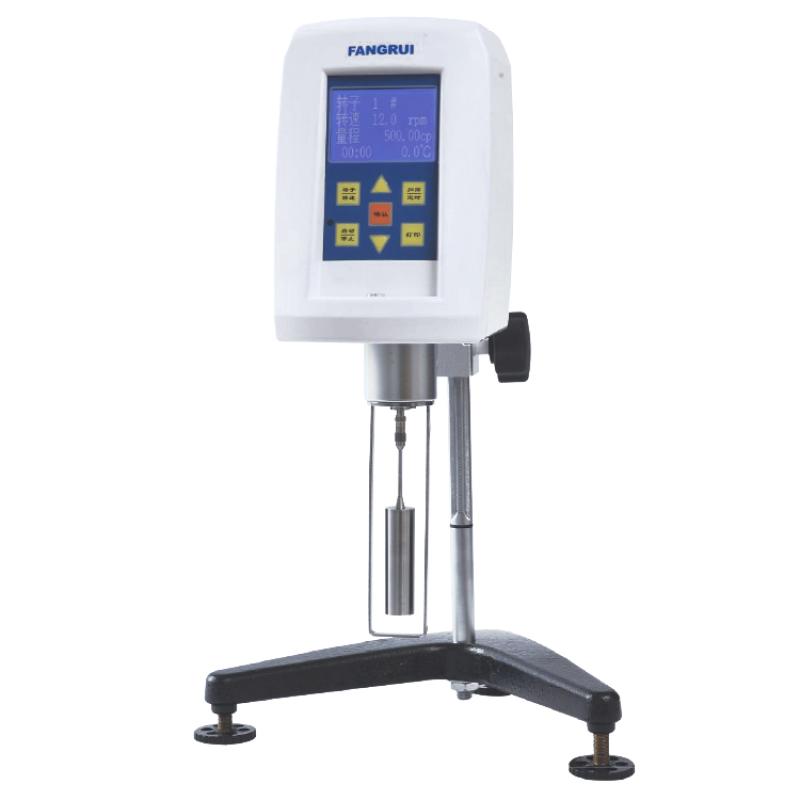

FANGRUI NDJ-8S Viscosity Sensors 1mPa.S~ 2 million mPa.s High Viscosity Picture

product description

FANGRUI NDJ-8S digital viscometer adopts the latest international microcomputer drive technology, imported stepper motor, LCD backlight display, program setting and automatic control. It has stable speed, good accuracy, easy operation, automatic scanning and error alarm. and other practical functions; the screen directly displays information such as viscosity, rotation speed, rotor number, percentage specific torque, the maximum viscosity that can be measured in the selected range, and the temperature of the liquid being measured. The instrument uses standard silicone oil to calibrate the full range and linearity of each gear through the PC interface to ensure that the instrument is highly sensitive, highly precise and highly repeatable. The measured data is accurate and reliable, with excellent repeatability.

Features

1. Digital viscometer is designed and manufactured in accordance with JJG-2005 standard

2. Large LCD with blue backlight function, intuitive and clear

   Display information: rotor number, speed, range, viscosity, temperature, opening angle %

3. ▲/▼ function keys, used to change the rotation speed and rotor number selection

4. The "Rotor Selection" function key prompts the rotor number and the cursor flashes.

5. The "speed setting" function key prompts the speed and the cursor flashes.

6. "Start, stop" function keys to execute or terminate the current measurement program

7. The "Auto Scan" function key helps users select the appropriate rotor speed measurement for unknown samples.

      "OK" function key to confirm the currently selected information

 Applications

NDJ-8S digital viscometer is widely used in fluid and semi-fluid production industries and scientific research units such as oils, paints, coatings, slurries, textiles, food, adhesives, cosmetics, etc. The instrument is chosen by customers in various industries for its advantages of accurate, fast, intuitive and simple measurement.

Product display picture

FANGRUI NDJ-8S viscosity sensor details picture 1

Optional parts

Ultra-low viscosity adapter (0# rotor)

temperature probe

Glass jacketed cup

Constant temperature circulating bath

Standard silicone oil

software

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
