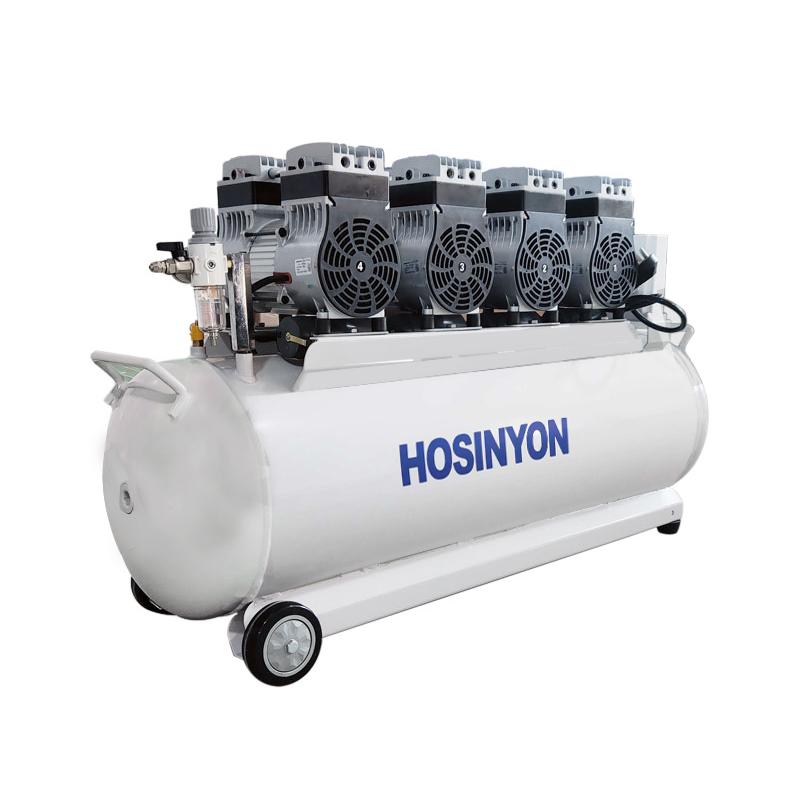

HOSINYON HW54 silent oil-free Air Compressor
SE
HW54
HaoXinYang HW54 Silent oil-free Air CompressorSPEC
HaoXinYang HW54 Silent oil-free Air CompressorDetails
HaoXinYang HW54 Silent oil-free Air CompressorPacking list
- SKU
- NB031471
- Power
- 2200W
- Displacement
- 462L/min
- noise value
- 53dB(A)
- Gas tank Volume
- 120L
- exhaust pressure
- 8bar
- Net Weight
- 90KG
- Dimensions
- 112*35*63.8cm
Benefits:
1. The motor adopts imported movement, which has strong power and durability.
2. The inside of the gas storage tank is treated with anti-rust and anti-bacteria to ensure the cleanliness of the gas and the safety of the product at the source.
3. After a large number of experiments and demonstrations, the pressure and gas production ratio can quickly produce the most gas source under the condition of least energy consumption, and the machine start and stop are all automatic design, which not only saves electricity and worry.
4. The machine is pure and oil-free design, and the exhaust gas is extremely clean, which meets the strict needs of supporting equipment for gas source, ensures the safety of contact personnel, and is more in line with the new world concept of "green environmental protection".
5. Each product is tested for leakage and electric resistance by the withstand Voltage Tester, and the fully flame-retardant silencing cotton is pasted in the silencer box to effectively eliminate the potential safety hazards of the product. and sound muffling.
6. Simple operation, ready-to-use, fully automatic design, no special person on duty for work; The air pressure can be freely adjusted according to the requirements of use, and there is no need for complicated maintenance, and only regular drainage is required.
7. Dryers or filters with different precision requirements can be selected according to the different needs of the industry, and the dew point can range from -20 to -60.
Application
Laboratory instruments, gas chromatography, mass spectrometry, 3D metal printing, petroleum refining, food manufacturing, biology, chemical energy, environmental protection, water quality testing, industrial production, aerospace science and technology, automobile braking and other industries can be adapted
Selection Reference Table
| Head power （W） | Number of heads (pcs) | Compatible models | Exhaust volume （L/min) | Gas tanks （L) | noises (dB) | Pressure switch range (bar) | not | with Silencer(S) | With dryer (D) | With silencer dryer DS | |||||
| routine | Customized | net weight （Kg) | size （cm) | net weight （Kg) | size （cm) | net weight （Kg) | size （cm) | net weight （Kg) | size （cm) | ||||||
| 550 | 1 | HW51 | 116 | 22 | 52 | 5~8 | 6~8 | 28 | 37*33*55 | 46 | 52*45*76 | 41 | 37*48*55 | 63 | 52*60*76 |
| 2 | HW52 | 230 | 60 | 53 | 5~8 | 6~8 | 45 | 66*35*63.8 | 65 | 76*45*85 | 58 | 66*50*63.8 | 86 | 76*60*85 | |
| 3 | HW53 | 348 | 90 | 53 | 5~8 | 6~8 | 70 | 90*35*63.8 | 105 | 100*45*85 | 82 | 90*50*63.8 | 123 | 100*60*85 | |
| 4 | HW54 | 462 | 120 | 53 | 5~8 | 6~8 | 90 | 112*35*63.8 | 123 | 112*45*85 | 103 | 112*50*63.8 | 141 | 112*60*85 | |
| 5 | HW55 | 580 | 150 | 54 | 5~8 | 6~8 | 120 | 132*35*63.8 | 156 | 142*45*85 | 133 | 132*50*63.8 | 174 | 142*60*85 | |
| 750 | 1 | HW71 | 152 | 40 | 52 | 5~8 | 6~8 | 28 | 42*33*65 | 50 | 52*45*76 | 41 | 42*48*65 | 65 | 52*60*76 |
| 2 | HW72 | 308 | 60 | 53 | 5~8 | 6~8 | 48 | 66*35*65 | 75 | 80*50*86 | 61 | 66*50*65 | 88 | 80*60*86 | |
| 3 | HW73 | 456 | 90 | 53 | 5~8 | 6~8 | 72 | 90*35*65 | 108 | 110*50*76 | 98 | 90*50*65 | 125 | 110*60*86 | |
| 4 | HW74 | 608 | 120 | 53 | 5~8 | 6~8 | 92 | 112*35*65 | 126 | 115*50*76 | 105 | 112*50*65 | 143 | 120*60*86 | |
| 5 | HW75 | 758 | 150 | 55 | 5~8 | 6~8 | 128 | 132*37*65 | 158 | 142*50*76 | 142 | 132*52*65 | 176 | 142*60*86 | |
| 1100 | 1 | HW101 | 200 | 50 | 54 | 5~8 | 6~8 or 7~9 | 30 | 65*34*66 | 59 | 75*44*78 | 43 | 65*50*66 | 85 | 75*60*78 |
| 2 | HW102 | 400 | 100 | 56 | 5~8 | 6~8 or 7~9 | 57 | 77*33*74 | 90 | 87*44*86 | 72 | 77*50*74 | 116 | 87*60*86 | |
| 3 | HW103 | 600 | 160 | 58 | 5~8 | 6~8 or 7~9 | 125 | 120*40*89 | 156 | 130*44*99 | 140 | 120*55*89 | 190 | 130*54*101 | |
| 4 | HW104 | 800 | 200 | 60 | 5~8 | 6~8 or 7~9 | 160 | 150*40*89 | 192 | 160*44*101 | 185 | 150*55*89 | 237 | 160*54*101 | |
| 5 | HW105 | 1000 | 240 | 63 | 5~8 | 6~8 or 7~9 | 189 | 172*40*89 | 228 | 182*44*101 | 215 | 172*55*89 | 280 | 182*54*101 | |
| 1500 | 1 | HW151 | 240 | 50 | 54 | 5~8 | 6~8 or 7~9 | 30 | 65*34*66 | 59 | 75*44*78 | 43 | 65*50*66 | 85 | 75*60*76 |
| 2 | HW152 | 480 | 100 | 58 | 5~8 | 6~8 or 7~9 | 57 | 83*42*82 | 90 | 95*64*99 | 72 | 83*42*82 | 116 | 95*78*99 | |
| 3 | HW153 | 720 | 160 | 60 | 5~8 | 6~8 or 7~9 | 125 | 120*40*89 | 156 | 130*50*99 | 140 | 120*54*89 | 190 | 130*65*101 | |
| 4 | HW154 | 960 | 200 | 63 | 5~8 | 6~8 or 7~9 | 160 | 150*40*89 | 192 | 160*50*101 | 185 | 150*54*89 | 237 | 160*68*100 | |
| 5 | HW155 | 1200 | 240 | 65 | 5~8 | 6~8 or 7~9 | 189 | 172*40*89 | 228 | 182*50*100 | 215 | 172*54*90 | 280 | 182*68*100 | |
- 1GB/T 12928-2008《Marine reciprocating Air Compressor for medium pressure and low pressure》
- 2GB 22207-2008《Safety requirements of displacement Air Compressor》
- 3GB/T 25358-2010《Packaged rotary oil-free Air Compressors for petroleum and natural gas industries》
- 4GB 19153-2019《Minimum allowable values of energy efficiency and energy efficiency grades for displacement Air Compressors》
