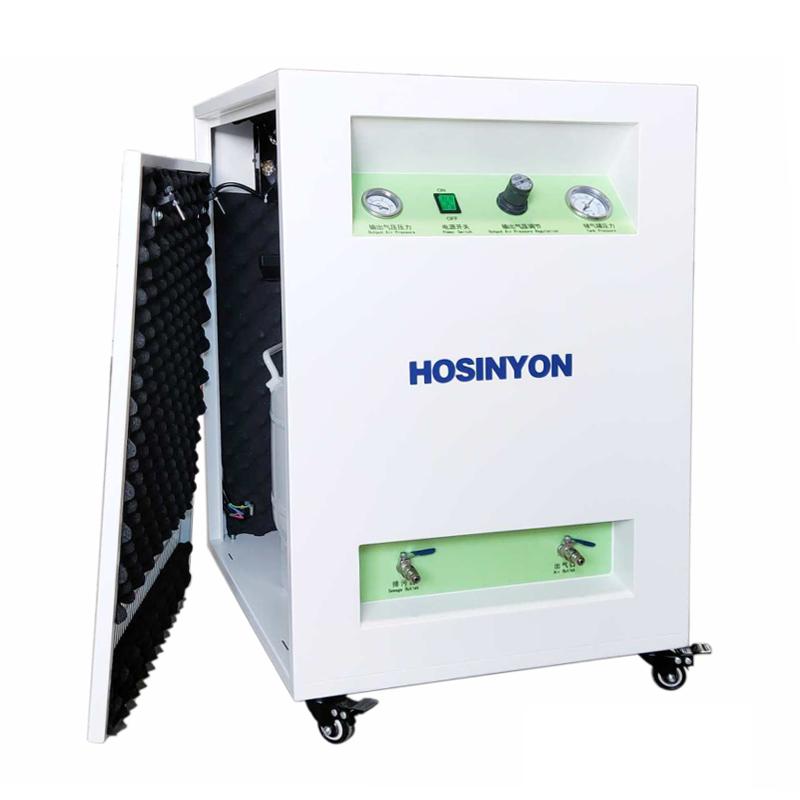

Haoxinyang HW71S Ultra-quiet Oil-free Air Compressor
SE
HW71S
HaoXinYang HW71S Ultra-quiet Oil-free Air CompressorSPEC
HaoXinYang HW71S Ultra-quiet Oil-free Air CompressorDetails
HaoXinYang HW71S Ultra-quiet Oil-free Air CompressorPacking list
- SKU
- NB031485
- power
- 750W
- Displacement
- 152L/min
- Gas storage tank Volume
- 30L
- Noise value
- 42±2pcs
- exhaust pressure
- 5~8bar
- Net Weight
- 46kg
- Dimensions
- 51*54*77cm
- Packaging Dimensions
- 55x58x82cm
product advantages
1. The motor adopts imported movement, which is powerful and durable.
2. The interior of the gas storage tank is treated with anti-rust and anti-bacteria to ensure the cleanliness of the gas and the safety of the product from the source.
3. The ratio of pressure and gas production obtained through a large number of experiments and demonstrations can quickly produce the most gas source under the condition of the least energy consumption, and the start and stop of the machine are all automatically designed, which not only saves electricity and worry.
4. The machine is pure oil-free design, and the exhaust gas is extremely clean, which meets the strict requirements of supporting equipment for gas sources, ensures the safety of people in contact, and is more in line with the new world concept of "green and environmental protection".
5. Each product is subjected to a leakage and resistance test by a withstand Voltage Tester, and the muffler box is pasted with full flame-retardant muffler cotton to effectively eliminate product safety hazards. and silencer.
6. Simple operation, ready to use when plugged in, fully automatic design, no need for a special person to be on duty; the air pressure can be adjusted freely according to the requirements of use, no complicated maintenance is required, only regular drainage is required.
7. According to the needs of different industries, dryers or filters with different precision requirements can be selected, and the dew point can reach -20 to -60.
Application
Suitable for laboratory instruments, gas chromatography, mass spectrometry, 3D metal printing, petroleum refining, food manufacturing, biomedicine, chemical energy, environmental protection, water quality testing, industrial production, aerospace technology, automobile braking and other industries
Selection Reference Table
| Machine head power (W) | Number of heads (pieces) | Corresponding model | Displacement (L/min) | Gas tank (L) | Noise (dB) | Pressure switch range (bar) | none | With silencer box (S) | with dryer (D) | With silencer box Dryer DS | |||||
| conventional | customized | Net weight (Kg) | Size (cm) | Net weight (Kg) | Size (cm) | Net weight (Kg) | Size (cm) | Net weight (Kg) | Size (cm) | ||||||
| 550 | 1 | HW51 | 116 | twenty two | 52 | 5~8 | 6~8 | 28 | 37*33*55 | 46 | 52*45*76 | 41 | 37*48*55 | 63 | 52*60*76 |
| 2 | HW52 | 230 | 60 | 53 | 5~8 | 6~8 | 45 | 66*35*63.8 | 65 | 76*45*85 | 58 | 66*50*63.8 | 86 | 76*60*85 | |
| 3 | HW53 | 348 | 90 | 53 | 5~8 | 6~8 | 70 | 90*35*63.8 | 105 | 100*45*85 | 82 | 90*50*63.8 | 123 | 100*60*85 | |
| 4 | HW54 | 462 | 120 | 53 | 5~8 | 6~8 | 90 | 112*35*63.8 | 123 | 112*45*85 | 103 | 112*50*63.8 | 141 | 112*60*85 | |
| 5 | HW55 | 580 | 150 | 54 | 5~8 | 6~8 | 120 | 132*35*63.8 | 156 | 142*45*85 | 133 | 132*50*63.8 | 174 | 142*60*85 | |
| 750 | 1 | HW71 | 152 | 40 | 52 | 5~8 | 6~8 | 28 | 42*33*65 | 50 | 52*45*76 | 41 | 42*48*65 | 65 | 52*60*76 |
| 2 | HW72 | 308 | 60 | 53 | 5~8 | 6~8 | 48 | 66*35*65 | 75 | 80*50*86 | 61 | 66*50*65 | 88 | 80*60*86 | |
| 3 | HW73 | 456 | 90 | 53 | 5~8 | 6~8 | 72 | 90*35*65 | 108 | 110*50*76 | 98 | 90*50*65 | 125 | 110*60*86 | |
| 4 | HW74 | 608 | 120 | 53 | 5~8 | 6~8 | 92 | 112*35*65 | 126 | 115*50*76 | 105 | 112*50*65 | 143 | 120*60*86 | |
| 5 | HW75 | 758 | 150 | 55 | 5~8 | 6~8 | 128 | 132*37*65 | 158 | 142*50*76 | 142 | 132*52*65 | 176 | 142*60*86 | |
| 1100 | 1 | HW101 | 200 | 50 | 54 | 5~8 | 6~8 or 7~9 | 30 | 65*34*66 | 59 | 75*44*78 | 43 | 65*50*66 | 85 | 75*60*78 |
| 2 | HW102 | 400 | 100 | 56 | 5~8 | 6~8 or 7~9 | 57 | 77*33*74 | 90 | 87*44*86 | 72 | 77*50*74 | 116 | 87*60*86 | |
| 3 | HW103 | 600 | 160 | 58 | 5~8 | 6~8 or 7~9 | 125 | 120*40*89 | 156 | 130*44*99 | 140 | 120*55*89 | 190 | 130*54*101 | |
| 4 | HW104 | 800 | 200 | 60 | 5~8 | 6~8 or 7~9 | 160 | 150*40*89 | 192 | 160*44*101 | 185 | 150*55*89 | 237 | 160*54*101 | |
| 5 | HW105 | 1000 | 240 | 63 | 5~8 | 6~8 or 7~9 | 189 | 172*40*89 | 228 | 182*44*101 | 215 | 172*55*89 | 280 | 182*54*101 | |
| 1500 | 1 | HW151 | 240 | 50 | 54 | 5~8 | 6~8 or 7~9 | 30 | 65*34*66 | 59 | 75*44*78 | 43 | 65*50*66 | 85 | 75*60*76 |
| 2 | HW152 | 480 | 100 | 58 | 5~8 | 6~8 or 7~9 | 57 | 83*42*82 | 90 | 95*64*99 | 72 | 83*42*82 | 116 | 95*78*99 | |
| 3 | HW153 | 720 | 160 | 60 | 5~8 | 6~8 or 7~9 | 125 | 120*40*89 | 156 | 130*50*99 | 140 | 120*54*89 | 190 | 130*65*101 | |
| 4 | HW154 | 960 | 200 | 63 | 5~8 | 6~8 or 7~9 | 160 | 150*40*89 | 192 | 160*50*101 | 185 | 150*54*89 | 237 | 160*68*100 | |
| 5 | HW155 | 1200 | 240 | 65 | 5~8 | 6~8 or 7~9 | 189 | 172*40*89 | 228 | 182*50*100 | 215 | 172*54*90 | 280 | 182*68*100 | |
