SHANGGUANG BM-18AY Trinocular Fluorescence Microscope

Eyepiece 10X objective 4X, 10X, 40X100X, 20X (optional on five holes) Four-hole or five-hole, infinite objective, Electric Light source (40X-1000X) Fluorescence device
Model：
Certificate
Contact
Details SPEC
Similar products

ShangGuangLiuChang BM-18AY Trinocular Fluorescence MicroscopeSPEC

ShangGuangLiuChang BM-18AY Trinocular Fluorescence MicroscopeDetails

ShangGuangLiuChang BM-18AY Trinocular Fluorescence MicroscopePacking list

SKU
NB031501
eyepiece
WF10X/Φ22
objective lens
Infinity flat-field color difference elimination objective: 4 ×/0.10, 10 ×/0.25, 100 ×/1.25 (oil) Infinity flat-field color difference elimination fluorescent objective: PL FL40X/0.85 (spring)
trinocular observation head
Hinged 30 ° tilt
Pupil distance adjustment range
55mm-75mm
Total Magnification
40X~1000X
converter
Four holes (inward ball positioning)
stage
Double-decked mechanical mobile (size: 210mmX140mm, moving range: 75mmX50mm)
Focusing system
Coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit device plate, fretting grid value: 2μm
Fluorescent device
3W high-brightness monochrome LED, which can be combined in monochrome or two-color. The emission wavelength of each monochrome LED is: G: 520nm~ 530nm, B: 460nm~ 470nm.
Light source
3W high-brightness white LED, adjustable luminance
condenser
1.25NA Abbe condenser, variable light bar
Color filter
Blue, Frosted Glass
BM-18AY
Trinocular Fluorescence Microscope
Eyepiece 10X objective 4X, 10X, 40X100X, 20X (optional on five holes) Four-hole or five-hole, infinite objective, Electric Light source (40X-1000X) Fluorescence device

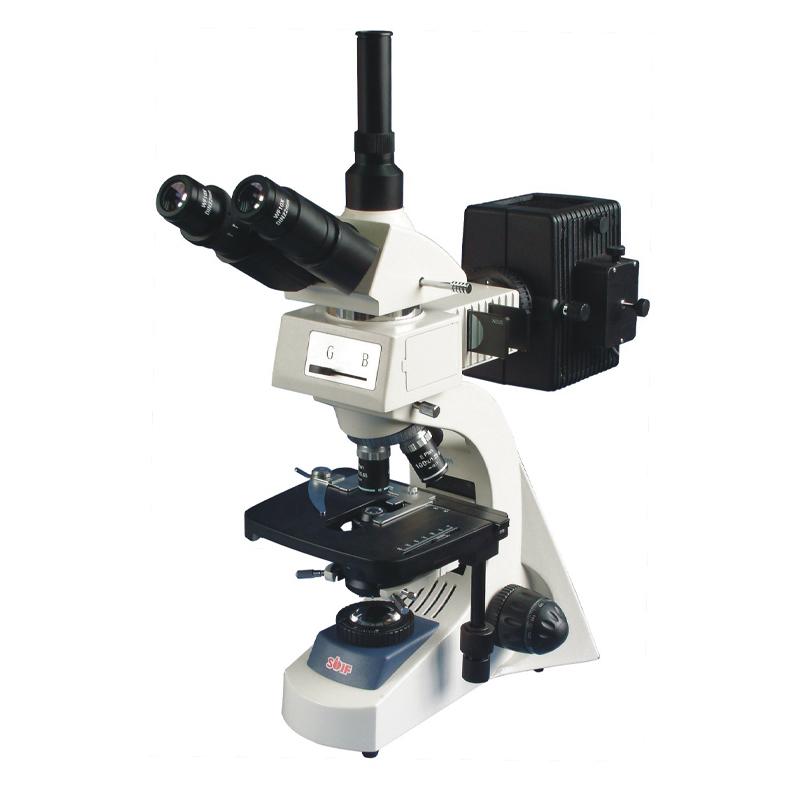

SHANGGUANG BM-18AY Trinocular Fluorescence Microscope Picture

The scientific research grade LED trinocular fluorescence microscope XSP-BM18AY is suitable for fluorescence microscopy and transmission brightfield observation. The transflective light source adopts high-power and high-brightness LED, the lighting device has low power consumption, long service life, and has a good heat dissipation effect, the instrument is safer and more comfortable to use, and the use and maintenance cost is low, which is a satisfactory instrument for biology, cytology, oncology, genetics, immunology and other research work, and can be used by scientific research, universities, and other departments. Total magnification: 40X-1000X

Characteristics:

1. Adopt today's more professional infinity optical system.

2. Equipped with a large field of view eyepiece and a fluorescence objective lens, the field of view is flat and clear.

3. Planetary coaxial coarse and micro dynamic focusing device is adopted, and the focusing is comfortable and stable.

4. Two optical path outputs, one for observation and one for connecting the camera device.

5. The light source adopts 3W high-brightness monochrome LED, which can switch LEDs in different bands, and the brightness is not adjustable.

6. Double-layer mechanical stage with scale is adopted, and the handwheel is adjusted in the coaxial and longitudinal and horizontal directions, which is more convenient to operate.

Options

nameParameters
Plan eyepieceWF16X、WF20X
Micrometer eyepiece: 0.1 ruler, 0.05 ruler, 0.5 reticul, 0.2 reticul, 0.1 coordinate
objectiveInfinity plan achromatic objectives: 20X, 60X, 80X
Infinity Plan Achromatic Fluorescence Objective PL FL10X/0.35
LED fluorescence filter setViolet 390nm~400nm, ultraviolet 360nm~370nm
converterFive-hole (inward-facing ball positioning)
Color gelsGreen, yellow
RulerThe objective micrometer is 0.01mm
Eyepiece micrometer: 0.1 ruler, 0.05 ruler, 0.5 grid, 0.2 grid, 0.1 coordinate
Camera interface Camera interface: 1X, 0.5X
Digital camera interface: 1X, 2.5X/4X
Camera (1) Japanese JVC camera + image capture card
It has the functions of single, timed, continuous image acquisition, multimedia connection, printout and so on
(2) Digital cameras with 1.3 million, 2 million, 3.2 million and 5 million pixels
It has the functions of single, timed, continuous image acquisition, display scale, measurement, etc., and can be connected to multimedia, printing, EMAIL and other ways of output.
(3) Digital camera + basic measurement management software
The 15-million-pixel Canon SLR camera has the functions of real-time image acquisition, image fusion, display scale, measurement, etc., and can be connected to multimedia, printing, email and other ways of output
Image analysis software(1) Basic management software UV
It can be collected in a single, timed and continuous manner, the ruler and magnification can be displayed, the length, angle, radius, perimeter, area and other measurements can be carried out on the microscopic image, and the output can be connected to multimedia, printing, email and other ways.
(2) Bioanalytical software UV-P
It can be single, timed, and continuous acquisition, display ruler and magnification, and can analyze various morphologies of biological cells, germs, glands, etc. in the field of view, and can be output in a variety of ways such as multimedia, printing, and email.
(3) Particle size analysis software UV-G
It can automatically measure and analyze the particles in the field of view, and can output the distribution map and integral distribution map in a linear or nonlinear statistical way according to the particle size, area, shape and other parameters of the particles, and can also obtain common statistical data such as D10, D50, D90, etc. It can be connected to multimedia, printing, email and other ways to output.
