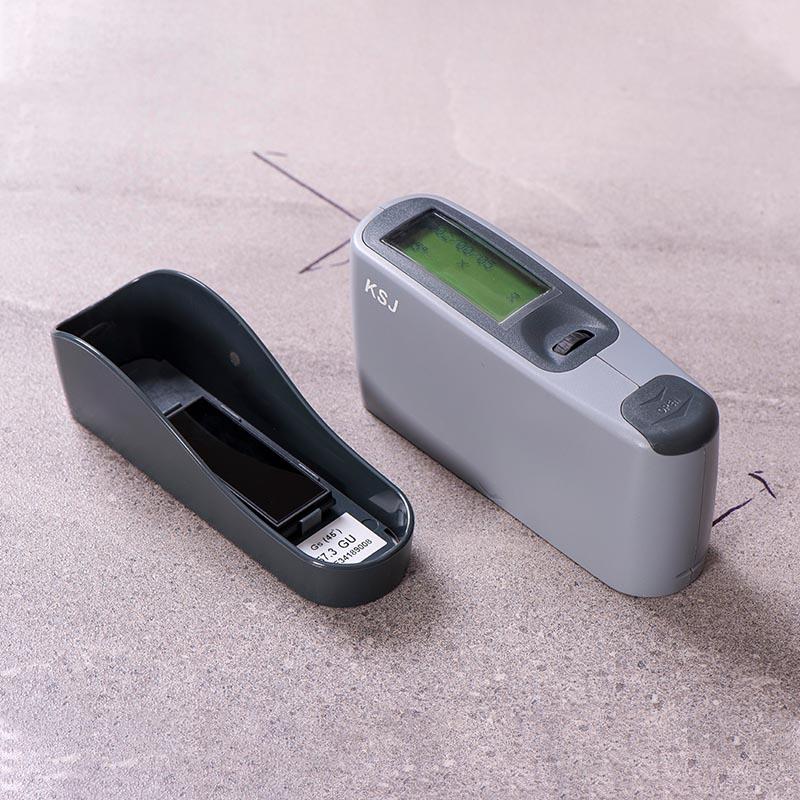

KSJ MG4-F3 Glossiness Meter 45 ° Measurement range 0.0~800GU
MG4-F3
KSJ MG4-F3 Glossiness MeterSPEC
KSJ MG4-F3 Glossiness MeterDetails
KSJ MG4-F3 Glossiness MeterPacking list
- SKU
- NB031569
- Measurement angle
- 45°
- Measurement range
- 0.0~800GU
- Repeatability
- 0~119.9GU：≤0.2GU；120~800GU：≤0.2%
- reproducibility
- 0.5GU|0.5%
- error of indication
- 0~119.9GU：≤1.5GU；120~800GU：≤1.5%
- Graduation
- 0.1GU|1GU
- Zero Error
- ≤0.2
- Measuring Area
- 9*12mm
- Measurement port size
- 12*28mm
- Light source
- LED
- Dimension
- 155X48x75mm (without base)
- Weight
- 400g
- Power Supply
- One AA (or LR6) alkaline dry or rechargeable battery
- Power life
- One alkaline battery can support more than 15,000 measurements
- Operating temperature
- 5~45℃
- Operating humidity
- Less than 85% RH, no condensation
- Storage temperature
- -10~60℃
Scope of application
This type of instrument is mainly used for 45° light on the surface of plastics, porcelain, enamel, enamel and other materials and productsZe measurements.
Introduction
Applicable standard: ASTM C346
Boot self-calibration and self-diagnosis, intelligent design, and the accompanying software is very intimate;
Massive data storage, viewing, uploading, and exporting are flexible and convenient;
The menu content of the machine is complete, easy to operate, and the function is customized;
Streamlined design, multiple measurement angles, including reflectivity, to achieve one-click measurement;
The surface of the metal base is hardened and not deformed;
Using a 5# alkaline battery, 10,000 measurements can be completed continuously;
Adhering to the traditional advantages of KSJ's accurate measurement, stable measurement, small inter-station difference, and good mutual comparison;
The old manufacturer, the same two-year warranty for export and domestic (CN) sales, after-sales guarantee, warranty, maintenance, calibration are assured!
