Specifications
| Detection Voltage | 0.6KV~30KV |
| Film thickness range | 0.05～10mm |
| High Voltage output mode | pulse |
| Measurement Voltage display | 3 digit display |
| resolution | 0.1KV |
| Voltage Accuracy | ±（0.1kv+3%） |
| Leak point count | Up to 999 |
| Alarm method | Headphones, buzzer alarm, light alarm |
| shutdown mode | Manual shutdown, automatic shutdown |
| Display | 128 * 64 dot matrix LCD with backlight display |
| Power consumption | ≤6W |
| Host size | 240mm*165mm*85mm |
| Power | 12V 4400mA |
| Continuous battery life at maximum Voltage | ☺ 12 hours |
| Charging time | Technologies 4.5 hours |
| Adapter Voltage | Input AC 100-240V Output 12.6V 1A |
| Probe line | Standard length is close to 1.5m |
| ground wire | 2 * 5M black/black |
| fuse | 1A |

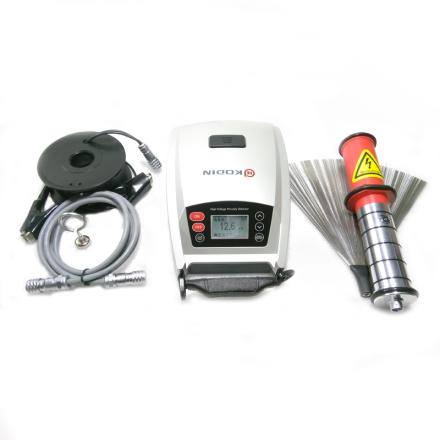

Packing list
Host x1, high voltage probe x1, connecting cable x1, fan brush probe x1, grounding wire x1, charger x1, strap x1, magnetic grounding column x1, ABS Encasement box x1, manual x1, certificate x1, warranty card x1, fuse x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/31606/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
