ShangGuang XSP-2CA Biological Microscope

Binocular, four objectives, 1600X, electric light source
Model:
Certificate

ShangGuangLiuChang XSP-2CA MicroscopeSPEC

ShangGuangLiuChang XSP-2CA MicroscopeDetails

ShangGuangLiuChang XSP-2CA MicroscopePacking list

SKU
NB031615
objective lens
Objective for eliminating color difference
Total magnification
4X10X Boosting 40X Boosting 100X
numerical aperture
0.1、0.25、0.65、1.25N.A.
Eyepiece magnification
10X、16X
Total magnification
40X~1600X
Adjustable Condenser Numerical Aperture (NA)
1.2
Coarse fretting focusing range
15mm, fretting grid value 0.002mm
stage
120 * 120mm, moving range 76 * 50mm, vernier 0.1mm
Field of view
18、11mm
XSP-2CA
Microscope
Binocular, four objectives, 1600X, electric light source

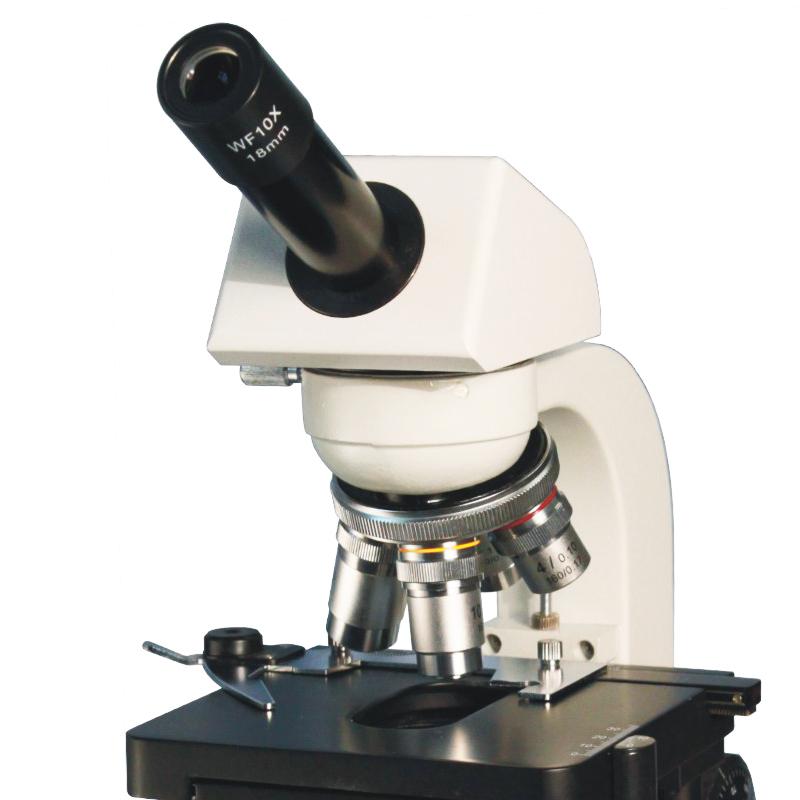

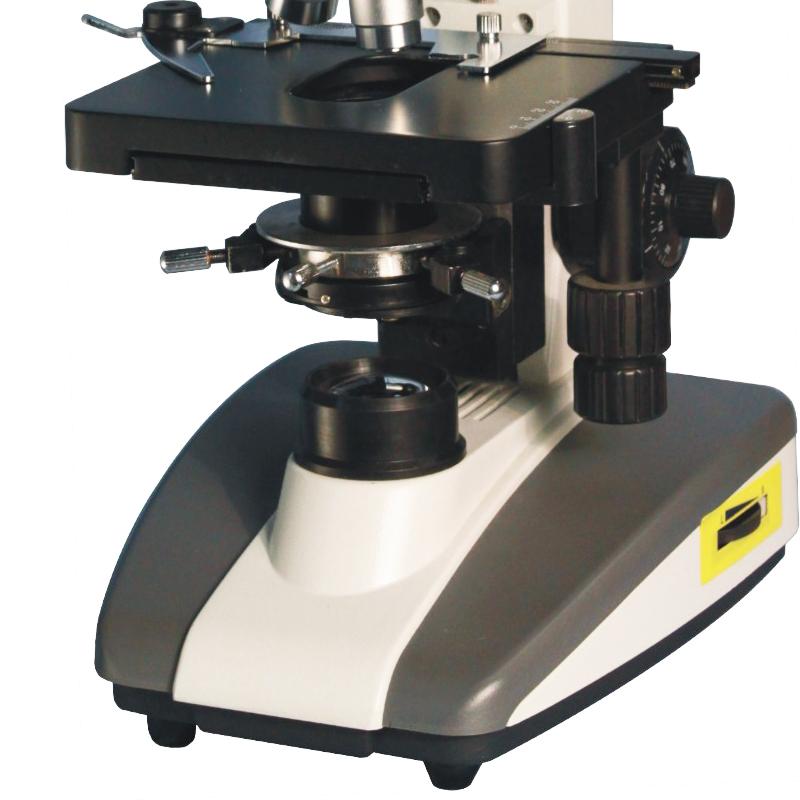

ShangGuang XSP-2CA Biological Microscope Picture

Introduction

XSP-2CA biological microscope can be widely used in biology, bacteriology, histology, medicinal chemistry and other research work, it can be used for clinical trials in medical treatment, and can be used for teaching in school laboratories.

The instrument adopts a liftable Abbe condenser lens group, which makes the converging light adjustment range larger. The planetary coaxial coarse and fine focus adjustment device makes the focus comfortable and stable as well as fine and fine adjustment;

The double-layer mechanical mobile platform with reading scales, and its coaxial vertical and horizontal adjustment handwheels make the operation easier.
