ShangGuang Sixth Plant 37XBW Inverted Biological Microscope

Trinocular, infinity objective 4X, 10X, 25X, 40X phase contrast objective 10X, 25X eyepiece 10X, 20X (optional) 40-400X
Model:
Certificate

ShangGuangLiuChang 37XBW Inverted Biological MicroscopeSPEC

ShangGuangLiuChang 37XBW Inverted Biological MicroscopeDetails

ShangGuangLiuChang 37XBW Inverted Biological MicroscopePacking list

SKU
NB031625
Total magnification
40X~400X
Trinocular observation head
Dumpling chain binocular, 45 ° tilt, can be configured with camera device, camera device
Inclined tube auxiliary lens coefficient
1X
Flat field eyepiece
10X / f22
Long working distance objective
4X/0.10、40X/0.65
Long working distance phase contrast objective
镜:10X/0.25、25X/0.40
Phase Contrast Ring Plate
10x、25x
Focusing system
Coarse fretting coaxial belt locking device, fretting grid value 0.002mm
stage
170×242mm
Movement range
Horizontal 75mm, vertical 50mm
Stage round plate
Outer diameter < unk > 110mm, inner hole < unk > 32mm
Color filter
Blue, yellow, green, matte
light source
220V halogen lamp 6V/30VA brightness adjustable
37XBW
Inverted Biological Microscope
Trinocular, infinity objective 4X, 10X, 25X, 40X phase contrast objective 10X, 25X eyepiece 10X, 20X (optional) 40-400X

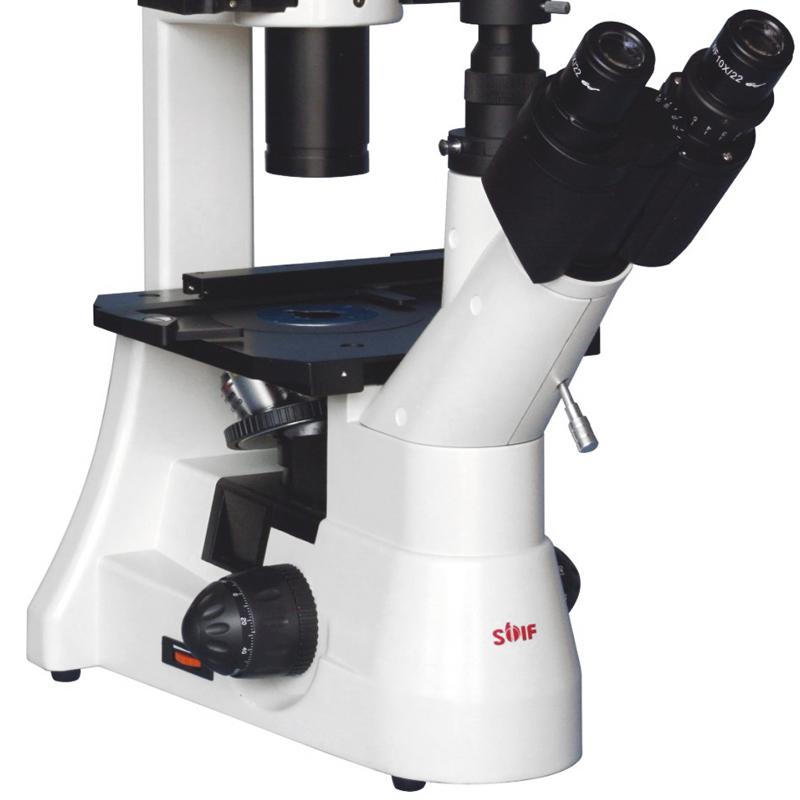

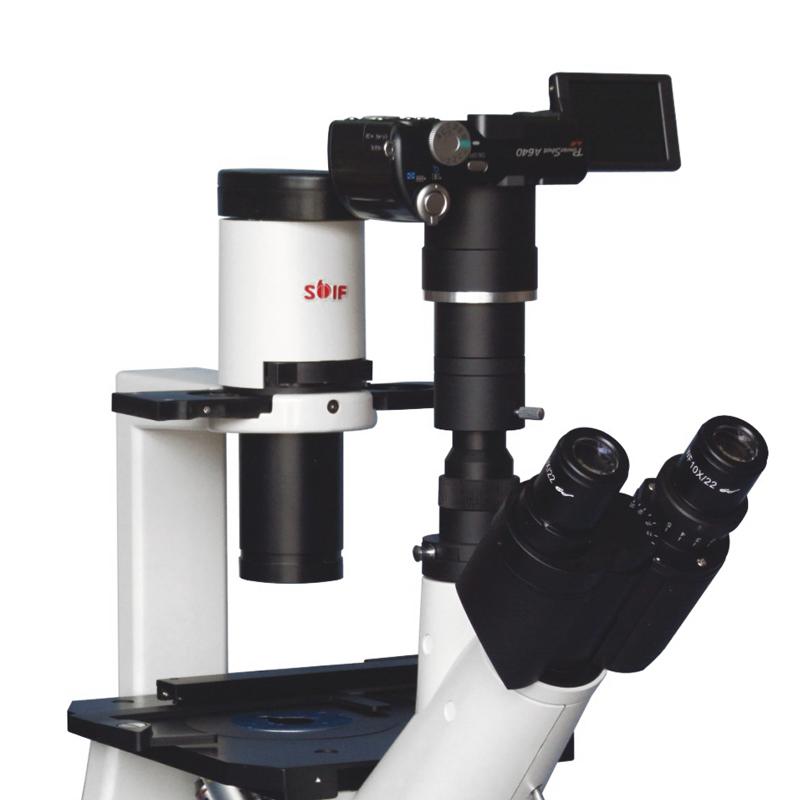

ShangGuang Sixth Plant 37XBW Inverted Biological Microscope Picture

Introduction

Since this instrument is equipped with a long working distance condenser lens, plan achromatic objective lens and phase contrast device, it can use various culture dishes and culture bottles, especially suitable for microscopic research on living cells and tissues, fluids, sediments, etc. It is also widely used in tissue culture, bacterial culture, and microscopic research on marine plankton. It is a desirable instrument in research work such as biology, genetics, medicinal chemistry, environmental protection, and oceanography. It can be used by scientific research units, colleges and universities, Applications in medical and health, agriculture and other units. 37XBW adopts UISⅡ infinity corrected optical system, equipped with infinity objective lens, which improves the quality of the optical system.


FAQ
Q37XBW Does this Microscope Have DIC and Difference Functions?
A There is only a difference, no DIC.
Q37XBW Does this Microscope Have DIC and Difference Functions?
A There is only a difference, no DIC.
