IPRE 4XB Binocular Inverted Metallurgical Microscopy

IPRE 4XB binocular inverted Metallurgical Microscopy is used to identify and analyze the microstructure of various metals and alloys, and 4XB binocular inverted Metallurgical Microscopy is suitable for microscopic observation of metallographic structures and surface morphologies.
Model：
Certificate
Contact
Details SPEC

Ipre 4XB Binocular Inverted Metallurgical MicroscopySPEC

Ipre 4XB Binocular Inverted Metallurgical MicroscopyDetails

Ipre 4XB Binocular Inverted Metallurgical MicroscopyPacking list

SKU
NB031677
Optical inspection system
Optical inspection system
observation head
Binocular tube, 45 ° tilt.
Flat field eyepiece
WF10X(Φ18mm)，WF12.5X(Φ15mm)
Avoiding color difference objective
10X/0.25/WD7.31mm，100X/1.25/WD0.37mm（油）
Semi-flat field color difference objective
40X/0.65/WD0.66mm
converter
Four hole converter
Focusing system
Adjustment range: 25mm, scale value: 0.002mm
stage
Double-decked mechanical mobile (size: 180mmX200mm, moving range: 50mmX70mm)
lighting system
6V 20W halogen lamp, adjustable luminance
Color filter
Yellow color filter, green color filter, blue color filter
4XB
Binocular Inverted Metallurgical Microscopy

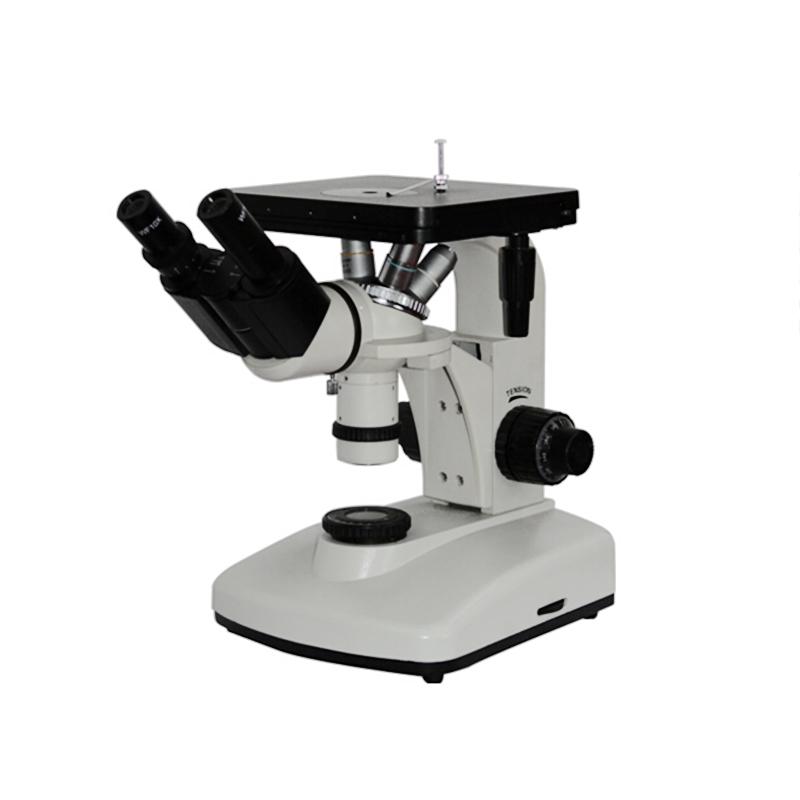

IPRE 4XB Binocular Inverted Metallurgical Microscopy Picture

Introduction

The 4XB binocular inverted metallographic microscope is used to identify and analyze the microstructure of various metals and alloy materials, and is suitable for microscopic observation of metallographic structure and surface morphology, and is a satisfactory instrument for metallurgy, mineralogy, and precision engineering research.

Features

Observation system

The supporting area of the instrument base is large, and the bending arm is firm, so that the center of gravity of the instrument is low and stable and reliable, and the eyepiece and the supporting surface are inclined at 45°, so that the observation is comfortable.

Details of the 4XB binocular inverted metallurgical microscope Figure 1           Details of the Zhongkopurui 4XB binocular inverted metallurgical microscope Figure 2

Mechanical stage

Mechanically mobile stage with built-in rotatable circular stage plate. There are two types of loading trays with an inner hole of φ10mm and φ20mm.

Details of the Zhongkoprui 4XB binocular inverted metallurgical microscope Figure 3

Lighting system

Kohler lighting system, with variable light bar with 6V20W halogen lamp lighting, brightness adjustable. AC 220V (50Hz).

Options

Plan eyepiece  WF10X(Φ18mm) with cross differentiation ruler
Software packageMetallographic Analysis Software (2016 Version, 2018 Version)
Camera setupMetallographic digital camera devices (5 million, 6.3 million, 12 million, 16 million, etc.)
0.5X camera headset
MicrometerHigh-precision micrometer (grid value 0.01mm)
