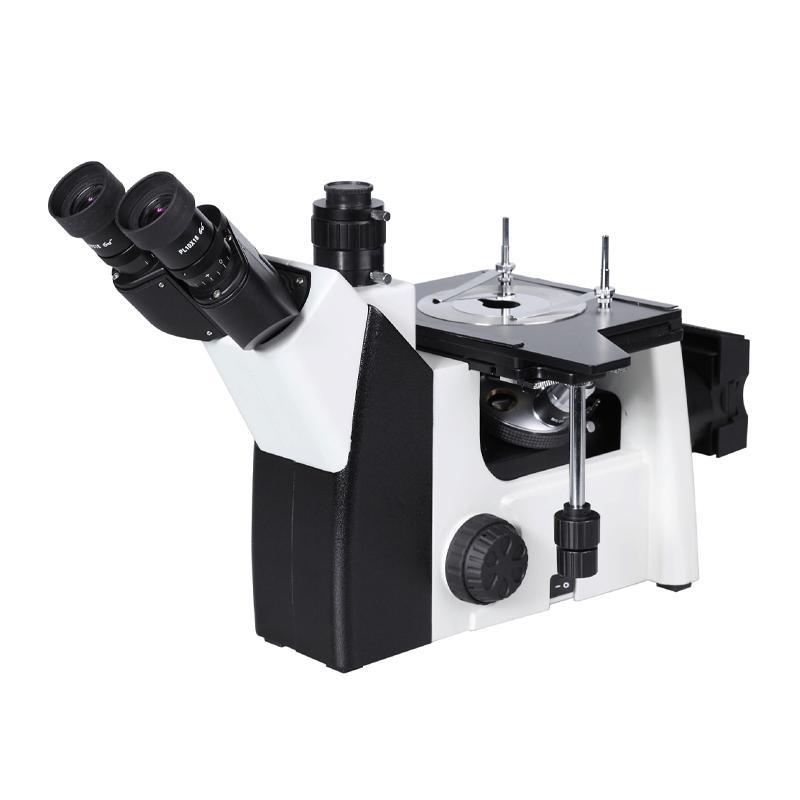

IPRE FCM2000W Computerized Metallurgical Microscopy
FCM2000W
Ipre FCM2000W Computer Metallurgical MicroscopySPEC
Ipre FCM2000W Computer Metallurgical MicroscopyDetails
Ipre FCM2000W Computer Metallurgical MicroscopyPacking list
- SKU
- NB031679
- Optical inspection system
- Optical inspection system for color difference
- observation head
- 45 ° tilt, trinocular observation tube, pupil distance adjustment range: 54-75mm, splitting ratio: 80:20
- eyepiece
- High eye point large field of view flat field eyepiece PL10X/18mm
- objective lens
- LMPL5X /0.125 WD15.5mm；LMPL10X/0.25 WD8.7mm；LMPL20X/0.40 WD8.8mm；LMPL50X/0.60 WD5.1mm
- converter
- Inner positioning four-hole converter
- Focusing system
- Low-hand coarse fine-tuning coaxial focusing mechanism, coarse motion 38 mm per turn; fine-tuning Accuracy 0.02mm
- stage
- Three-layer mechanical mobile platform, area 180mmX155mm, right-hand low-hand control
- Stage movement range
- 75mm×40mm
- workbench
- Metal stage plate (center hole φ 12mm)
- emitter illumination system
- Cora lighting system with variable aperture light bar and center adjustable field of view light bar, adaptive wide Voltage 100V-240V, single 5W warm LED light, Light intensity is continuously adjustable
- Color filter
- Yellow, green, blue, matte color filters
- Metallographic analysis system
- JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
FCM2000W computerized metallographic microscope is a trinocular inverted metallographic microscope, which is used to identify and analyze the combined structure of various metals and alloy materials, and is widely used in factories or laboratories for the identification of casting quality, the inspection of raw materials or the metallographic structure analysis after material treatment, as well as the research of some surface phenomena such as surface spraying; Ceramics and other effective means of microscopic research.
Features

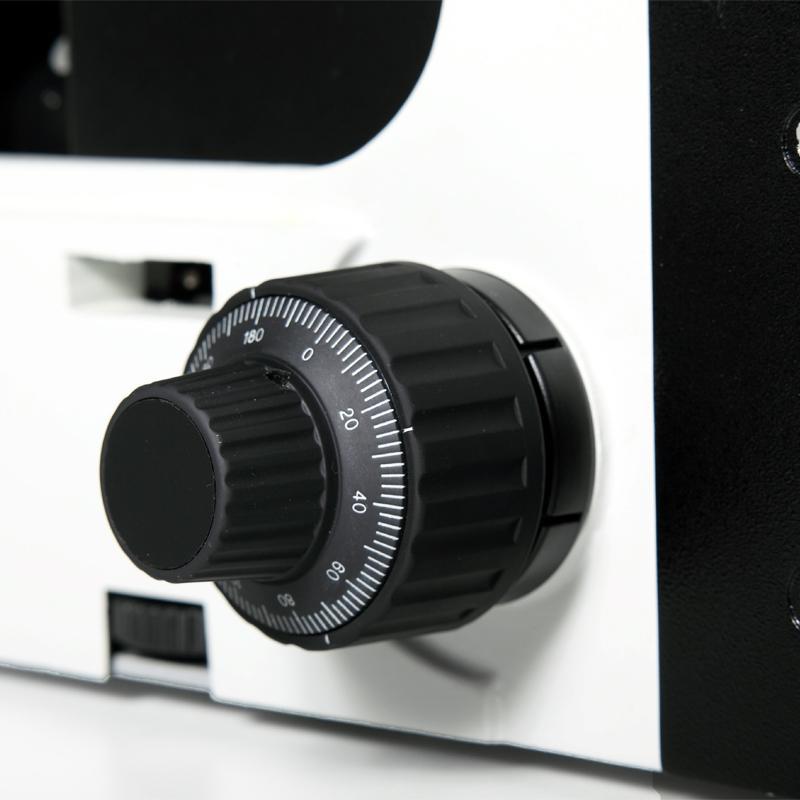

Focusing mechanism
The coaxial focusing mechanism of coarse fine adjustment of the bottom hand position can be adjusted on the left and right sides, with high fine-tuning accuracy, simple and convenient manual adjustment, and users can easily get clear and comfortable images. The coarse adjustment stroke is 38mm, and the fine-tuning accuracy is 0.002.
Mechanical moving platform
It adopts a large-size platform of 180×155mm, and is set in the right-hand position, which is in line with the operation habits of ordinary people. During the user's operation, it is convenient for the operation switch between the focusing mechanism and the platform movement, providing users with a more effective Operating Environment.

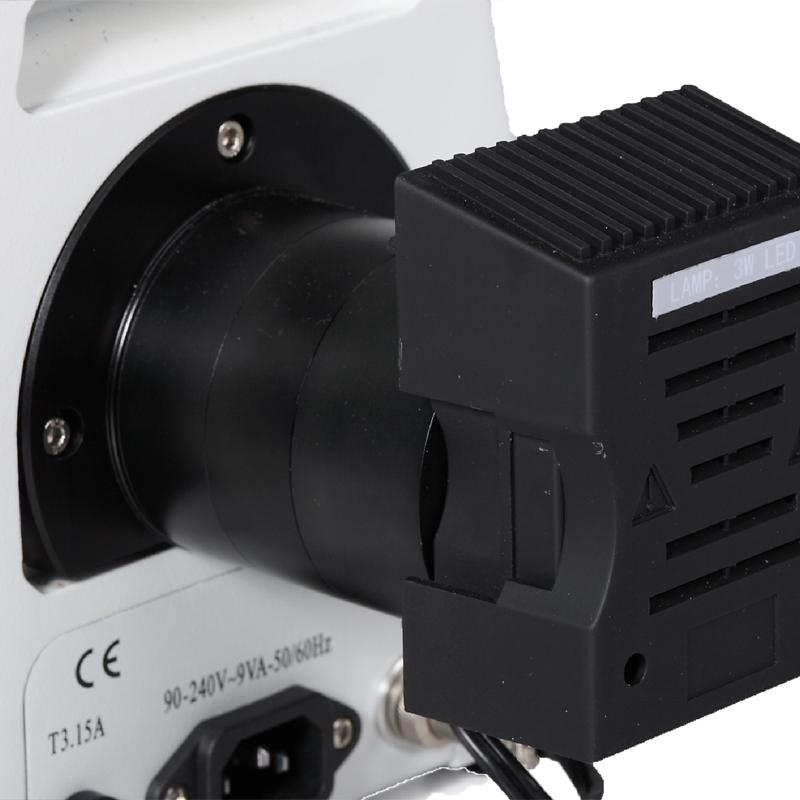

Lighting system
The epi-Kola illumination system with variable aperture diaphragm and center adjustable field diaphragm adopts adaptive wide Voltage 100V-240V, 5W high brightness, long life LED lighting.
Options
| eyepiece | High eyepoint large field of view plan eyepiece PL10X/18mm, can be equipped with micrometer |
| High eyepoint large field of view eyepiece WF15X/13mm, can be with micrometer | |
| High eyepoint large field of view eyepiece WF20X/10mm, can be equipped with micrometer | |
| Objective lens (long-pitch plan achromatic objective) | LMPL100X/0.80 WD2.00mm |
| converter | Internally positioned five-hole converter |
| Epi-illumination system | Epi-Kola illumination system with variable aperture bar and center adjustable field bar, adaptive wide Voltage 100V-240V, 6V30W halogen lamp, continuously adjustable light intensity |
| Polarizing accessories | Polarizer insert, fixed analyzer insert, 360° rotating analyzer insert |
| Computer | HP Business Jets |
