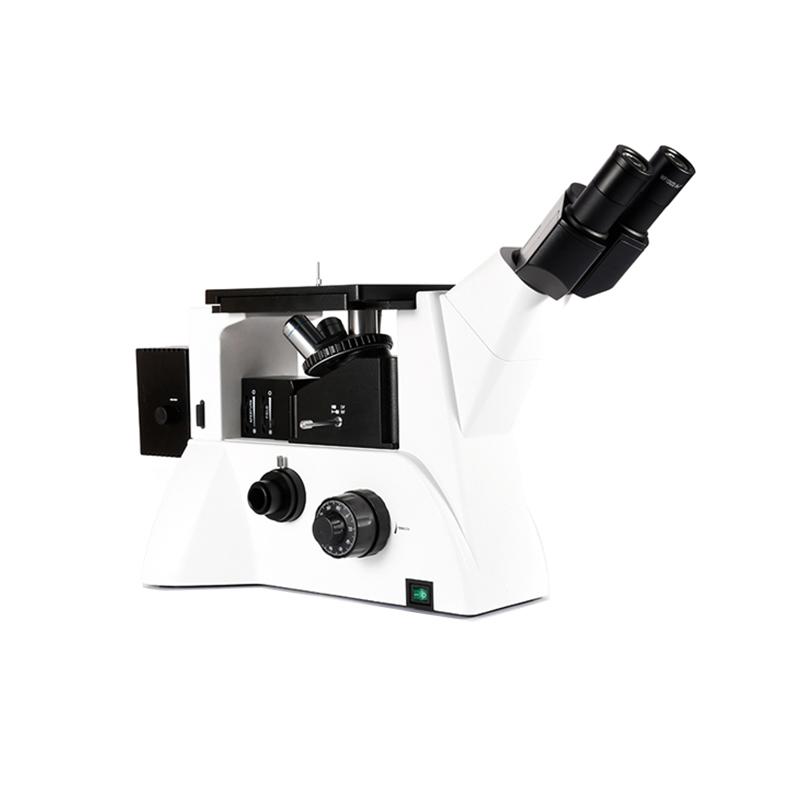

IPRE FCM5000W Computerized Metallurgical Microscopy
FCM5000W
Ipre FCM5000W Computer Metallurgical MicroscopySPEC
Ipre FCM5000W Computer Metallurgical MicroscopyDetails
Ipre FCM5000W Computer Metallurgical MicroscopyPacking list
- SKU
- NB031680
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- Hinged binocular lens barrel, 45 ° tilt; pupil distance adjustment range 53~ 75mm.
- eyepiece
- Flat field wide field eyepiece WF10X/22mm
- Standard objective (infinite flat-field color difference objective)
- PL L10X/0.25 WD20.2mm；PL L20X/0.40 WD8.8 mm；PL L50X/0.70 WD3.68 mm；PL L100X/0.85 WD0.4mm
- converter
- Ball internal positioning five-hole converter
- Focusing system
- Coarse fretting coaxial focusing, with locking device, fretting grid value: 2μm.
- stage
- Mechanical moving stage, Dimension (242 * 200mm), moving range (30 * 30mm)
- lighting system
- 6V30W halogen lamp, adjustable luminance.
- Polarizing device
- Polarizer group, polarizer group
- Color filter
- With Frosted Glass, Yellow, Green and Blue Color Filters
- Metallographic analysis system
- JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
The FCM5000W computerized metallographic microscope is a trinocular inverted metallographic microscope, which adopts an excellent infinity optical system and a modular functional design concept, which can easily upgrade the system to achieve polarized light observation, dark field observation and other functions. The compact, stable, and highly rigid body fully reflects the vibration protection requirements for microscope operation. The ergonomic design makes the operation more convenient and comfortable, and the space is wider. It is suitable for microscopic observation of metallographic structure and surface morphology, and is a satisfactory instrument for metallurgy, mineralogy, and precision engineering research.
Features
Observation system
Hinged binocular observation tube, 45° inclination, does not need to look down or look up for a long time during operation, so that the operator's neck and shoulders can be effectively released. The market number of flat wide-angle eyepieces can reach φ22mm, which makes visual observation wider and more comfortable, and can be adapted to rubber eye masks.
Mechanical stage
Mechanically mobile stage, built-in rotatable circular stage plate, special-shaped observation window set in the plate is suitable for microscopic observation of samples of different specifications, and the circular stage plate can be rotated during polarized light observation to meet the requirements of polarization microscopy.
Lighting system
With Kola illumination, the aperture diaphragm and field diaphragm can be adjusted by dial, making the adjustment smooth and comfortable. The polarizer can adjust the polarization angle 360° to observe the microscopic images in different polarization states.
Options
| eyepiece | Plan field large field differentiation eyepiece WF10X/22mm |
| Optional objective (infinity plan achromatic objective) | PL L5X/0.12 WD26.1mm |
| PL L40X/0.60 WD3.98mm | |
| PL L60X/0.75 WD1.22mm | |
| PL L80X/0.80 WD1.25mm | |
| Computer | HP Business Jets |
