China TBJ-X1 Vacuum chuck Drawdown blade Lab Film Applicator Size 330 * 400mm

SE
Vacuum chuck + Drawdown blade; Drawdown Vacuum Plate size 310 * 400mm, aluminum alloy material, suitable for film, release film and other Spreaders, film thickness up to 10mm, Drawdown blade film thickness adjustable.
$2962.00/set
PromotionLoading...
Coupon
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-X1 (Customized) Automatic Film ApplicatorSPEC

zy TBJ-X1 (Customized) Automatic Film ApplicatorDetails

zy TBJ-X1 (Customized) Automatic Film ApplicatorPacking list

SKU
NB031684
Coating method
Drawdown blade
Drawdown blade type
Integrated drawdown blade
Drawdown blade Accuracy
±0.003mm
Drawdown blade thickness range
0.001-10Mm adjustable
Length of drawdown blade
400mm
Drawdown blade material
304 stainless steel
Coating speed
5-200Mm/s (< 5mm/s can be customized)
Spreader distance control
The number can be set arbitrarily within the range of 1-400mm
vacuum aperture
Φ1.2mm
hole spacing
20*20mm
Substrate clamping method
Vacuum adsorption
Control mode
Touch screen control
Power Supply
Voltage 220V 50HZ
Net Weight
65KG
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Vacuum pump size
380*180*280mm
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function

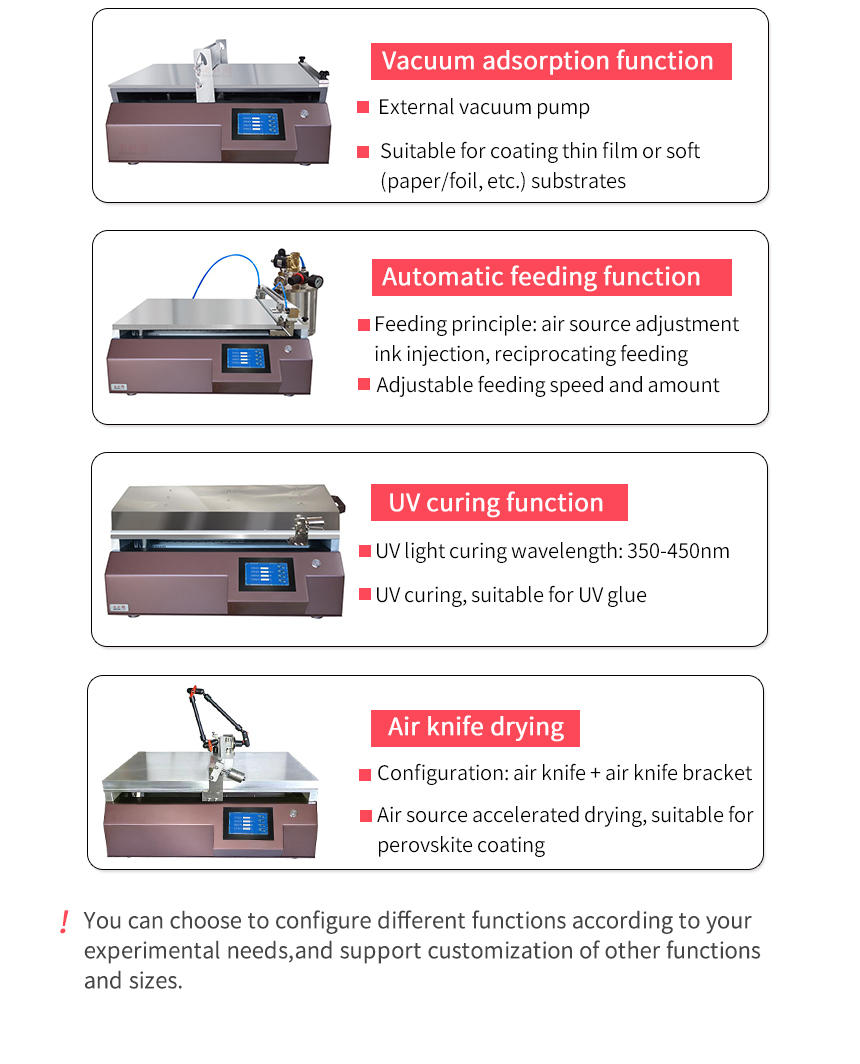

Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-X1 (Customized)
Automatic Film Applicator
Vacuum chuck + Drawdown blade; Drawdown Vacuum Plate size 310 * 400mm, aluminum alloy material, suitable for film, release film and other Spreaders, film thickness up to 10mm, Drawdown blade film thickness adjustable.

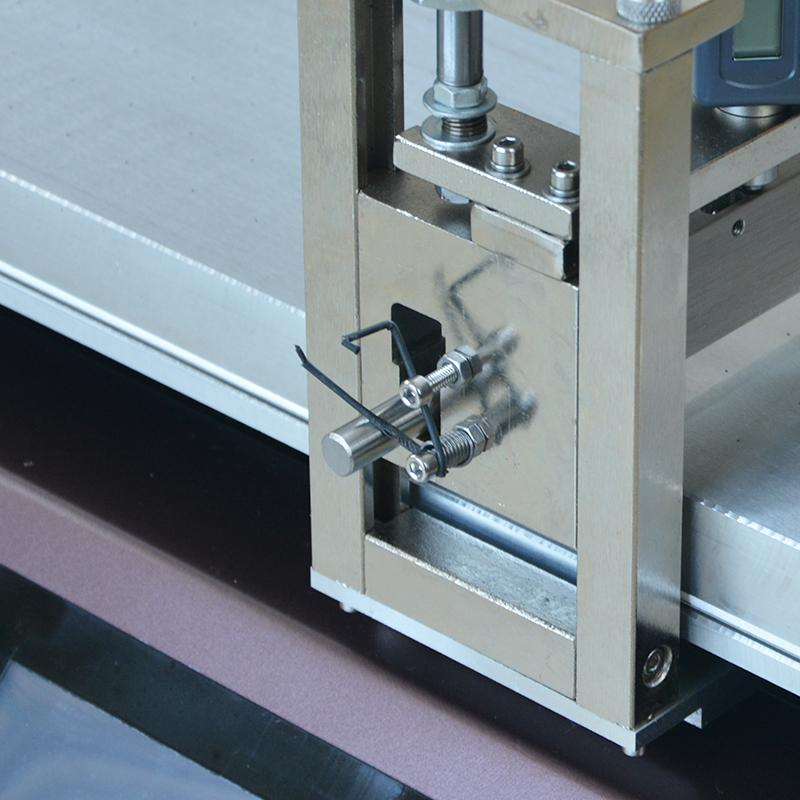

China TBJ-X1 Vacuum chuck Drawdown blade Lab Film Applicator Size 330 * 400mm Picture

TBJ-X experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.

Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted by hand are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The automatic Film Applicator is carefully designed to allow the operator to conveniently apply a precise wet film on different substrates, which greatly improves the reproducibility of the film.

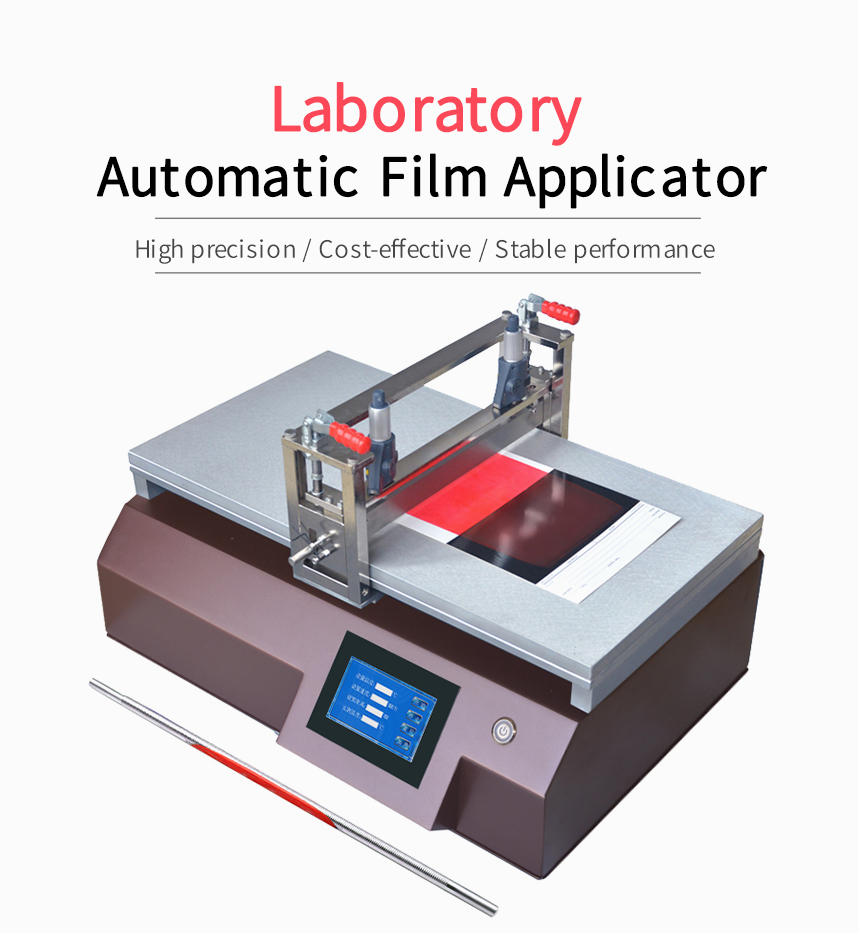

CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 1

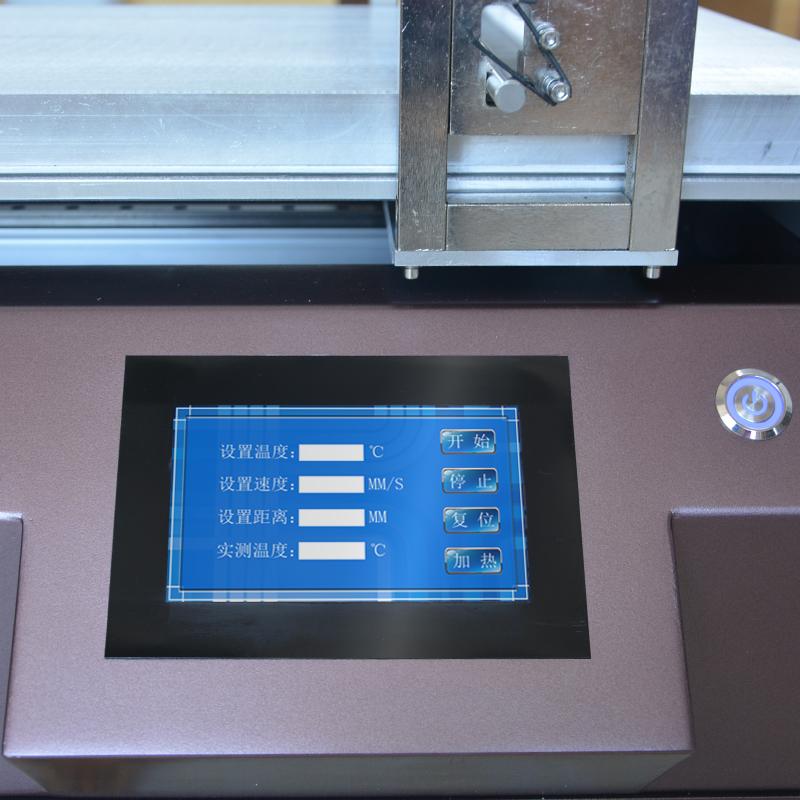

CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 2



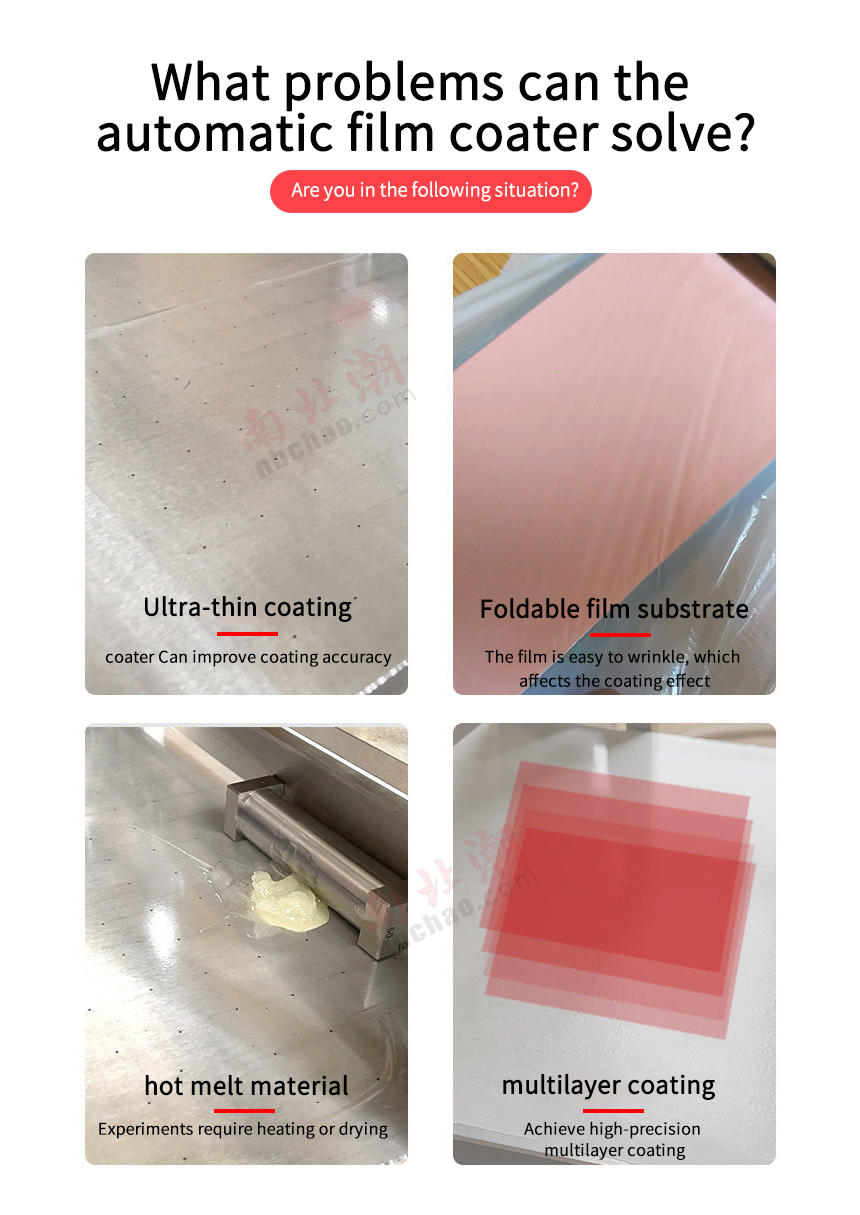

CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 3



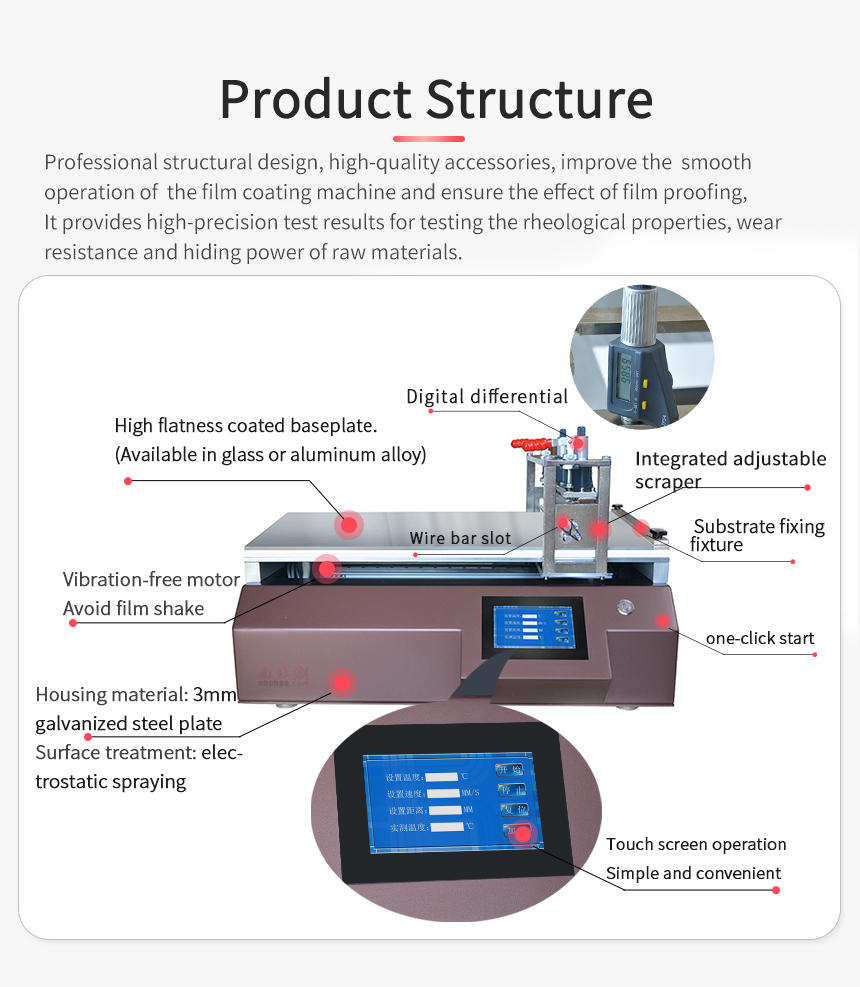

CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 4

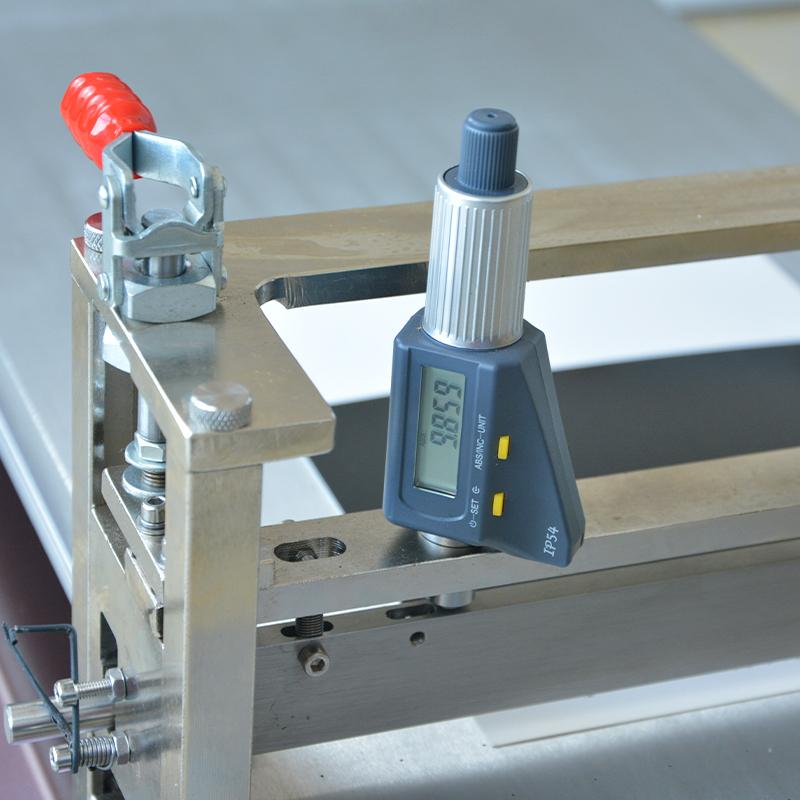

CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 5



CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 6



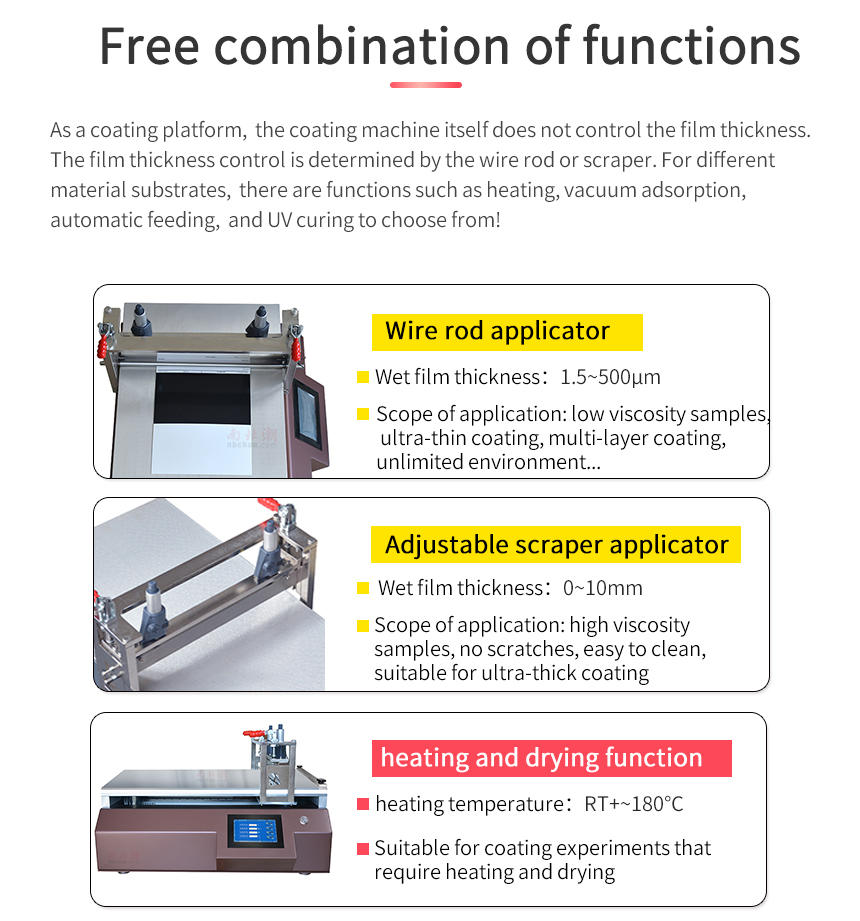

CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 7



CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 8



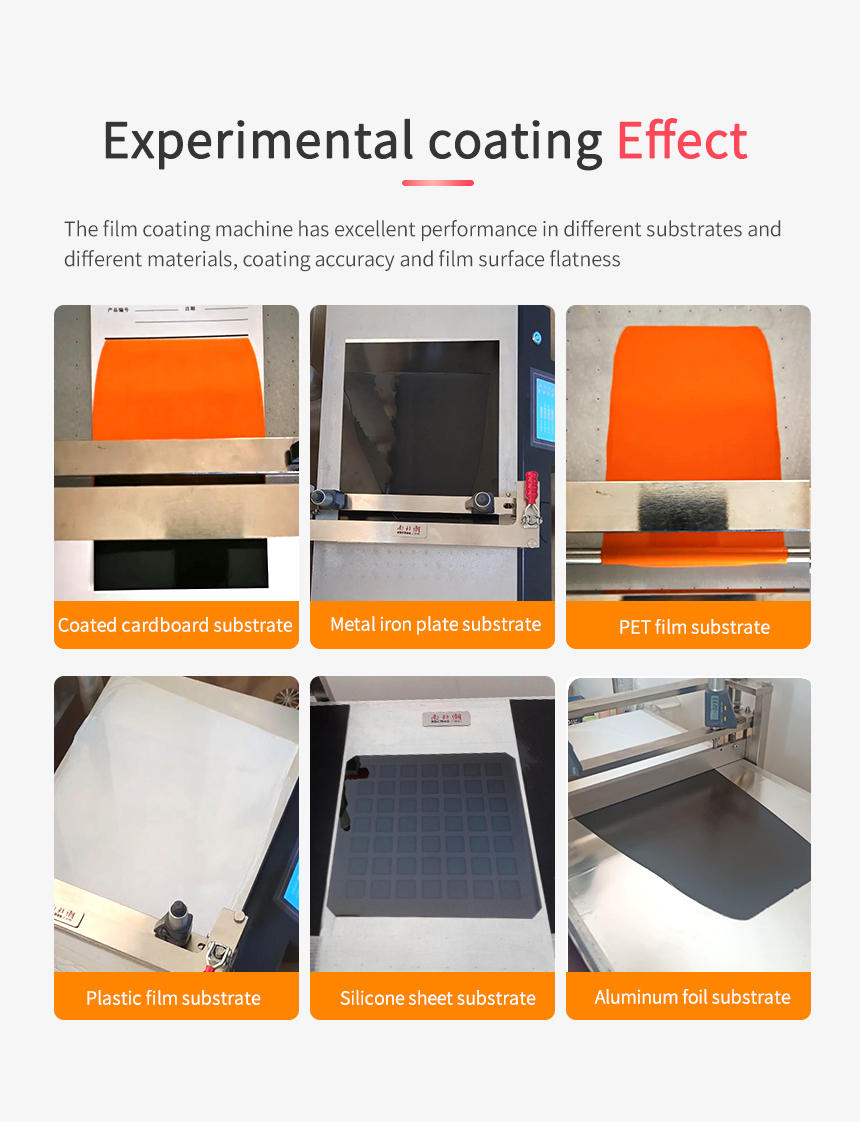

CHINA TBJ-X1 vacuum adsorption scraper type Applicator, format 330 * 400mm Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QCan conductive polymer coated carbon-sulfur composite anode material be scraped with Film Applicator? The substrate is aluminum foil.
A Yes, the aluminum foil is flattened by vacuum adsorption, and the ground sample is uniformly coated on the aluminum foil with a doctor blade and a film device. Thickness control can adjust the thickness of the doctor blade according to needs.
QIs this doctor blade Lab Film Applicator available in other sizes?
A Hello, yes, you can contact the technical engineer to customize it.
QCan Experimental Automatic Film Applicators Customize Larger Size?
A Hello, it's OK.
QCan the experimental small coater film on the aluminum foil substrate with a scraper?
A Hello, it is not recommended. The aluminum foil substrate is generally scraped with a wire rod. If the scraper is not set well, it is easy to scrape the substrate.
QDoes the film on the paper need to be equipped with vacuum adsorption function?
A Hello, not necessarily. If it is softer, you can consider matching it. If it is cardboard, you don't need it.
QWhat is the allowable viscosity of the Spreader material for this coater?
A The allowable range of film viscosity is generally determined by the Moulding device. The viscosity of the wire rod generally does not exceed 1000cp, and the doctor blade has no limit. But the accuracy of the wire rod is higher. In addition, due to the heating function, the viscosity of some materials decreases with the increase of temperature, so it is necessary to comprehensively consider the requirements of materials, substrates, film thickness and preparatory purposes. For details, please consult NBchao customer service.
QThe film cannot be put on the adsorption flat, what should I do?
A Hello, you need to cover all the vacuum holes, and then gently smooth the film.
QIs this kind of thing that can be applied with paste?
A OK
QWhat should I do if the film prepared on the experimental automatic film machine is difficult to peel off from the Glass substrate?
A Hello, there are two solutions: first, the baseplate is replaced by PTFE material, PTFE has release properties; second, Teflon solution can be coated on the Glass substrate, and then film liquid after drying.
