IPRE DMSZ7P video all-in-one machine

IPRE DMSZ7P video machine integrates continuous zoom Optical inspection lens and high definition digital camera, display screen, camera, ring light are uniformly powered by the mirror body, DMSZ7P video machine mirror body group with screen mirror body group, IPS10 inch high definition touch screen.
Model：
Certificate
Contact
Details SPEC

Ipre DMSZ7P Video all-in-one machineSPEC

Ipre DMSZ7P Video all-in-one machineDetails

Ipre DMSZ7P Video all-in-one machinePacking list

SKU
NB031687
lens group
With screen lens group, IPS10 inch high definition touch screen, screen variable angle (-5 ° to 15 °)
objective lens
1X large objective lens, WD105mm
light source
LED ring light: 56 LED, with dimming knob, switch, Color temperature 5000-5500K
base
Standing arm type large flat plate base group, travel 225mm
DMSZ7P
Video all-in-one machine

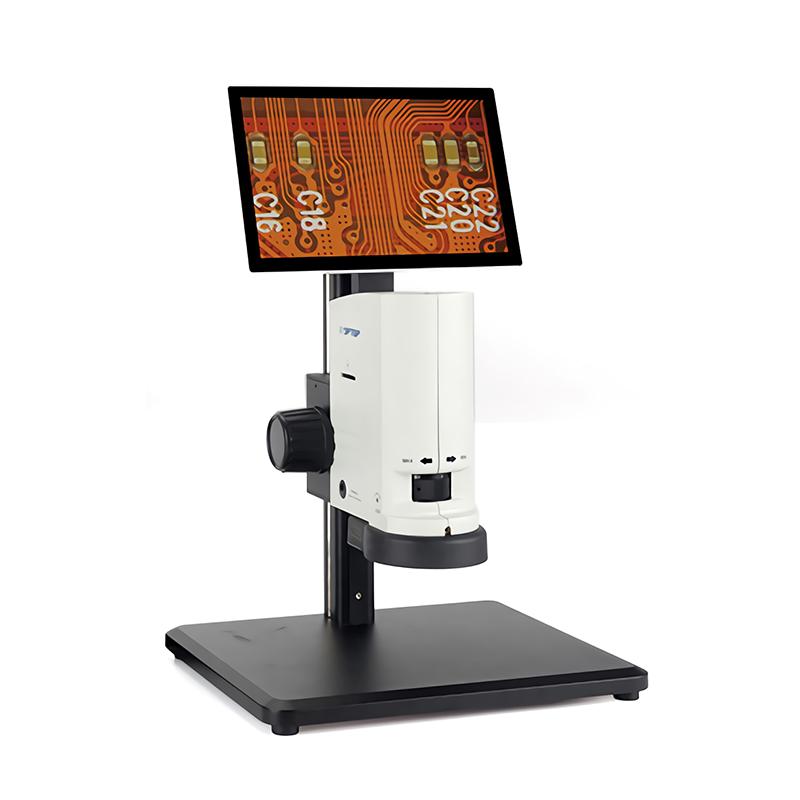

IPRE DMSZ7P video all-in-one machine Picture

Introduction

The DMSZ7 all-in-one video all-in-one computer has a compact and beautiful design, integrating a continuous zoom optical lens and a high-definition digital camera, and the display, camera, and ring light are all powered by the mirror body, which solves your long-term problem with the wiring harnessIssue. You can freely choose with or without a screen according to your needs.

 Features

Multifunctional digital camera

The 4-million-pixel high-definition CMOS image sensor has excellent imaging and can truly reproduce the color, sharpness and contrast of the image, and the frame rate is as high as 30FPS under full HD images, which can bring you a non-lag observation experience while satisfying the clarity.

Details of the DMSZ7P video all-in-one machine in the details of the CMSZ7P all-in-one machine

Continuous zoom adjustable

DMSZ7 can provide you with 7:1 continuous zoom with a Magnification Range of 0.7X~5X. The large-stroke focusing mechanism makes the working space wider, and the 225mm focusing stroke and the working distance can reach up to 170mm, which can meet the needs of sample measurement at different heights.

Details of the DMSZ7P video all-in-one machine in Copelo 2

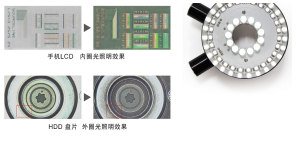

Two-step zone LEDs (optional)

With switch dimming knob, the inner and outer rings are independently controlled. The outer ring is illuminated obliquely for additional detail, while the inner ring acts as near-coaxial light for improved visual accuracy and reproducibility.

Details of the DMSZ7P video all-in-one machine in Zhongke Purui 3

Options

objective1.4X large objective, WD100mm
0.5X large objective, WD170mm
Light sourceTwo-speed zoned LED light with switch dimming knob, inner and outer ring zone control, color temperature 5000-5500K
otherUSB cable 1.5M ; HDMI cable 5M;
