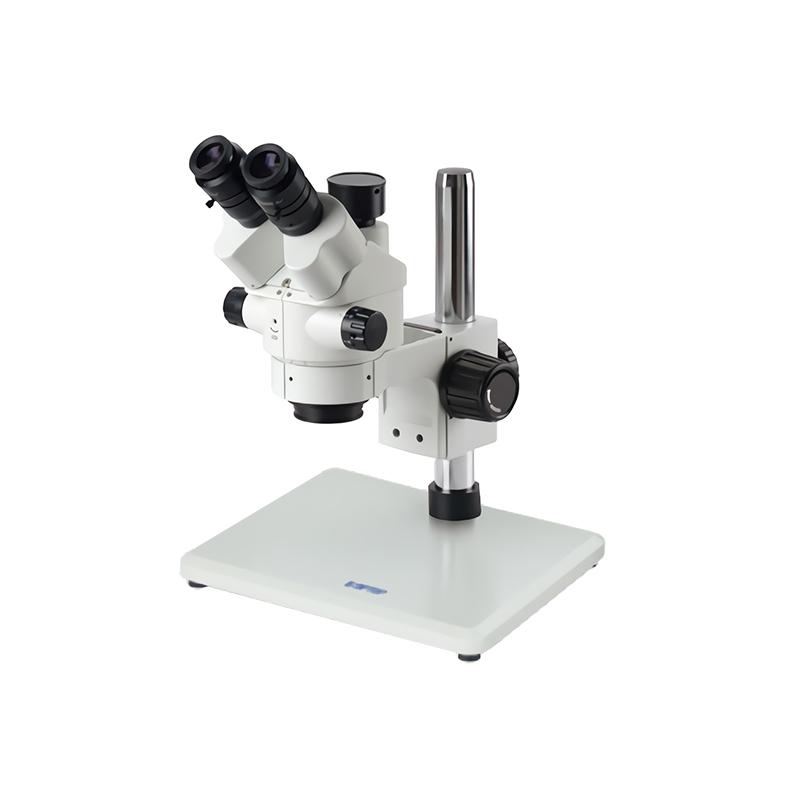

IPRE JSZ7 Computerized Stereo Microscope
JSZ7
Ipre JSZ7 Computer Stereo MicroscopeSPEC
Ipre JSZ7 Computer Stereo MicroscopeDetails
Ipre JSZ7 Computer Stereo MicroscopePacking list
- SKU
- NB031688
- observation head
- Trinocular observation cylinder. 45 ° tilt, 360 ° swirl/spin; can be equipped with photography camera interface
- eyepiece
- High eye point large field eyepiece WF10X/20mm
- Standard focusing frame
- SZMA1 focusing frame, focusing handwheel elastic and adjustable, lifting range 50mm
- base
- B5 (Compatible with all focusing frames)
- Light source
- 56 LED ring lights, adjustable luminance
- Camera device
- 3 million camera device, FZ-RS2018 image measurement software, 0.5X adapter interface
- micrometer
- High-precision micrometer (grid value 0.01mm)
- computer
- branded business jet
Introduction
JSZ7 computerized stereo microscope is a trinocular continuous zoom stereo microscope, the classic design of the machine, so that the stability of the body is better, good optical performance, complete accessories, diversified combination configuration, to meet the modern biology, medicine, scientific research, modern electronic industry online detection.
Features
High-quality optics
The optical components coated with a special coating make for a good optical system.
A wider range of magnifications
The continuous zoom objective lens is 0.7X~4.5X(6.4:1), the standard magnification is 7X~45X, and the eyepiece and auxiliary objective lens are selected to achieve 3.5-90X magnification.
Extra-long effective working distance
The effective standard working distance reaches 100mm, and the working distance will be extended to 26 mm~287mm with an optional auxiliary objective lens, creating enough space for use.
