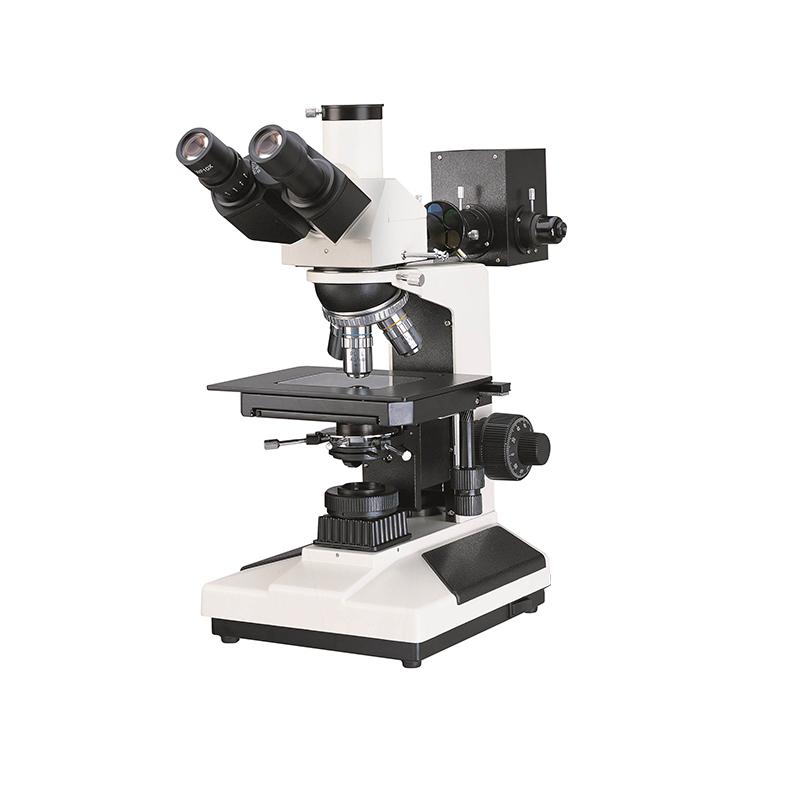

IPRE FL7500W Computerized Metallurgical Microscopy
FL7500W
Ipre FL7500W Computer Metallurgical MicroscopySPEC
Ipre FL7500W Computer Metallurgical MicroscopyDetails
Ipre FL7500W Computer Metallurgical MicroscopyPacking list
- SKU
- NB031692
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- Triple eyepiece, tilted 30 °, (built-in polarizer, switchable)
- eyepiece
- Large field of view WF10X (0019 18mm)
- Standard objective (long distance flat field color difference objective)
- PL L5X/0.12 WD15.5 mm；PL L10X/0.25 WD8.80mm；PL L40X/0.6 WD3.73 mm；PL L60X/0.75 WD1.34 mm
- converter
- Four holes (inward ball positioning)
- Focusing system
- Coarse fretting coaxial focusing, fretting grid value: 2μm, coarse elastic adjustable, with locking and limit device
- stage
- Double-decked mechanical mobile (size: 185mmX140mm, moving range: 75mmX50mm)
- emitter illumination system
- 6V 20W, halogen lamp, luminance adjustable; emitter illuminator with field of view diaphragm, aperture diaphragm, polarizer.
- Transmissive Illumination Light source
- Abbe condenser NA.1.25 can be lifted up and down, blue color filter and frosted Glass, collector, 6V 20W halogen lamp, luminance adjustable
- Metallographic analysis system
- JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
The FL7500W computerized metallographic microscope is a trinocular transflective upright metallographic microscope, which is suitable for microscopic observation of opaque objects or transparent objects. This instrument is equipped with an epi-emission and transmission illumination system, a long-distance plan achromatic objective lens (without a coverslip), a large-field eyepiece and a built-in polarization observation device, which has the characteristics of clear image, good contrast and easy operation, and is a satisfactory instrument for the research of biology, metallurgy, mineralogy, precision engineering, electronics, etc. It is suitable for use in schools, scientific research, factories and other departments.
Features
Observation system
Trinocular observation tube, monocular degree adjustable, lens barrel 30° tilt, can be connected to the camera device.
Mechanical stage
Double-layer mechanical stage, size: 185*140mm, moving range: 75mm*50mm, moderate design concept, users are more convenient and comfortable when operating the stage.
Epi-illumination system
6V20W halogen lamp, brightness adjustable. Built-in field diaphragm, (yellow, green, blue, frosted glass) filter converter, push-pull polarizer.
Transmitted illumination system
Built-in halogen illumination: 6V20W halogen lamp (brightness adjustable) can provide clear and vivid microscopic observation images. With field diaphragm collector, Abbe condenser N.A.1.25, adjustable up and down.
Options
| eyepiece | Large field of view WF10X (Φ18mm) with cross differentiation ruler |
| Large field of view WF16X(Φ11mm) | |
| Optional objective (long-range plan achromatic objective) | PL L 20X/0.40 WD8.6mm |
| PL L 50X/0.70 WD2.02mm | |
| PL L 80X/0.80 WD0.96mm | |
| PL L 100X/0.85 WD0.4mm | |
| Transmitted illumination system | Yellow gel, green gel |
| Computer | HP Business Jets |
