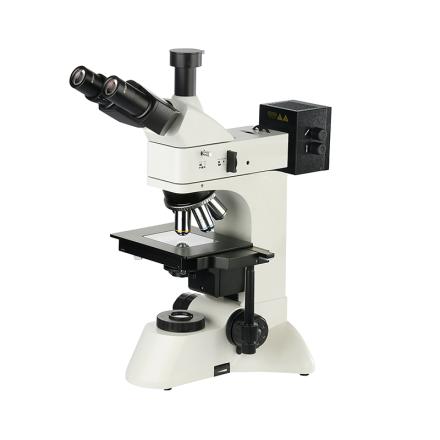

Specifications
| Optical inspection system | Optical inspection system for color difference correction |
| observation head | Triple eyepiece, tilted 30 °, (built-in polarizer, switchable) |
| eyepiece | Large field of view WF10X/22mm |
| Standard objective (infinite flat-field color difference objective) | PL L5X/0.12 WD26.1mm；PL L10X/0.25 WD20.2mm；PL L40X/0.60 WD3.98mm；PL L60X/0.7 WD3.18mm |
| converter | Five holes (inward ball positioning) |
| Focusing system | Coarse fretting coaxial focusing, fretting grid value: 2μm, coarse elastic adjustable, with locking and limit device |
| stage | Double-decked mechanical mobile stage, Dimension: 210mmX140mm, Movement range: 63 * 50mm |
| emitter illumination system | 6V30W halogen lamp, adjustable luminance, equipped with yellow, blue, green color filters and frosted Glass; built-in field of view light bar, aperture light bar, color filter conversion device, push-pull polarizer and polarizer |
| Transmissive Illumination Light source | Abbe condenser NA.1.25 can be lifted up and down; built-in field of view light bar in the collector, 6V30W halogen lamp, adjustable luminance |
| Metallographic analysis system | JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer |
Packing list
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/31693/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
