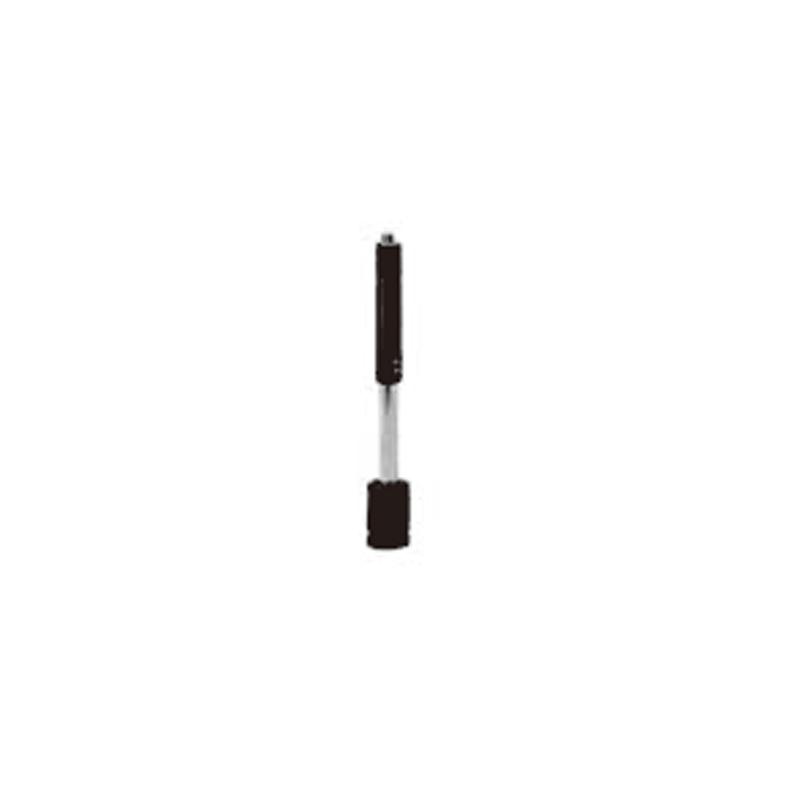

IPRE D Impact device for measurement

IPRE Type D Impact device is an Optional accessory of Leeb Hardness Tester.

$125.00/set

PromotionLoading...

Coupon

Model：

Type D

Certificate

Ipre

Contact

Details SPEC Con

Ipre Type D Impact deviceSPEC

Ipre Type D Impact deviceDetails

Ipre Type D Impact devicePacking list

SKU: NB031698

Impact energy: 11mJ

Impact device Mass: 5.5g

Ball Hardness: 1600HV

Ball head diameter: 3mm

Ball head material: tungsten carbide

Impact device diameter: 20mm

Impact device length: 147mm

Impact device Mass: 75g

Maximum Impact Hardness: 940HV

Specimen Surface Roughness: 1.6µm

The minimum Weight of the specimen can be directly measured: >5kg

The minimum Weight of the specimen needs to be stably supported: 2-5kg

The minimum Weight of the specimen needs to be tightly coupled: 0.05-2kg

Specimen Minimum Film thickness Dense coupling: 5mm

Hardening Film thickness: 0.8mm

Hardness 300HV Indentation Diameter: 0.54mm

Hardness 300HV Indentation: 24µm

Hardness 600HV Indentation Diameter: 0.54mm

Hardness 600HV Indentation: 17µm

Hardness 800HV Indentation Diameter: 0.35mm

Hardness 800HV Indentation: 10µm

Standard Richter Hardness Block Hardness Value: 760±30HLD;530±40HLD

Error of indication: ±6HLD;±10HLD

Indication repeability: 6HLD;10 HLD

Type D

Impact device

Shock device technical parameter table

Details of Zhongke Purui D-type impact device 1

Measuring range table for impact device

Details of Zhongke Purui D-type impact device 2

Indication Error and Indication Repeatability Table

Details of Zhongke Purui D-type impact device Figure 3
