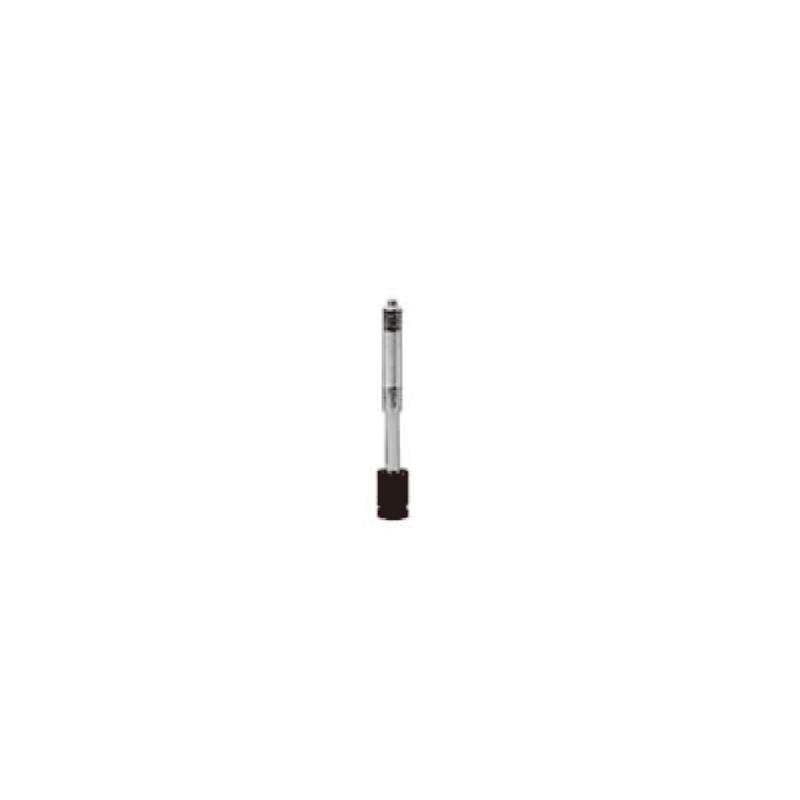

IPRE C Impact device measurement of small thin specimens and surface hardening layer

The IPRE Type C Impact Device is an Optional accessory to the Leeb Hardness Tester for the measurement of small or thin specimens and surface hardening.

$161.00/set

PromotionLoading...

Coupon

Model：

Type C

Certificate

Ipre

Contact

Details SPEC Con

Ipre Type C Impact deviceSPEC

Ipre Type C Impact deviceDetails

Ipre Type C Impact devicePacking list

SKU: NB031699

Impact energy: 2.7mJ

Impact Mass: 3.0g

Ball Hardness: 1600HV

Ball head diameter: 3mm

Ball head material: tungsten carbide

Impact device diameter: 20mm

Impact device length: 141mm

Impact device Mass: 75g

Maximum Impact Hardness: 1000HV

Specimen Surface Roughness: 0.4um

The minimum Weight of the specimen can be directly measured: >1.5kg

The minimum Weight of the specimen needs to be stably supported: 0.5-1.5kg

The minimum Weight of the specimen needs to be tightly coupled: 0.02-0.5kg

Specimen Minimum Film thickness Dense coupling: 1mm

Hardening Film thickness: 0.2mm

Hardness 300HV Indentation Diameter: 0.38mm

Hardness 300HV Indentation: 12µm

Hardness 600HV Indentation Diameter: 0.32mm

Hardness 600HV Indentation: 8µm

Hardness 800HV Indentation Diameter: 0.35mm

Hardness 800HV Indentation: 7μm

Standard Richter Hardness Block Hardness Value: 822±30HLC;590±40HLC

Error of indication: ±12HLC

Indication repeability: 12HLC

Type C

Impact device

Shock device technical parameter table

Details of Zhongke Purui C-type impact device 1

Measuring range table for impact device

Details of Zhongke Purui C-type impact device 2

Indication Error and Indication Repeatability Table

Details of Zhongke Purui C-type impact device Figure 3
